Year of production: 2008, 2009, 2010, 2011, 2012, 2013, 2014
Fuse box in dashboard

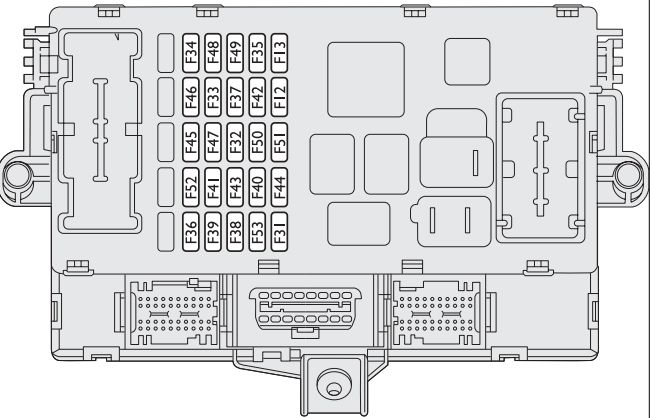

Fiat Bravo – fuse box – dashboard
Components
Fuse
Ampere rating [A]
Headlamp alignment correction system (versions with gas discharge headlights)
F13
15
Headlight alignment correction system (versions with halogen headlights)
F13
7,5
Remote switch coils on fuse box in engine compartment (CVM)/ Body Computer control unit (NBC)
F31
5
Hi-Fi system subwoofer
F32
15
Rear left power window
F33
20
Rear right power window
F34
20
Brake pedal control (normally closed contact NC)/ water in diesel fuel sensor/flow meter
F35
5
Door opening system control unit (CGP) (door opening/closing, safe lock, tailgate release)
F36
20
Brake pedal control (normally closed contact NA)/ Instrument panel (NQS)/gas-discharge lamp control units on front headlights
F37
7,5
Sound system/Sound system presetting/Connect Nav +/Blu&Me System/ Alarm siren (CSA)/Alarm system on ceiling light/Internal cooling unit system/Tyre pressure monitoring control unit (CPP)/Diagnostic socket connector/Rear ceiling lights
F39
10
Heated rear window
F40
30
Electric door mirror defrosters/Defrosters on front nozzles
F41
7,5
Braking system control unit (NFR)/Yaw sensor (YRS)
F42
5
Windscreen wiper/Windscreen/rear window washer bidirectional motor pump system on steering column stalk
F43
30
Current outlet/Cigar lighter
F44
15
Power sunroof motor
F46
20
Front power window (left side)
F47
20
Front power window (right side)
F48
20
Emergency control panel (illumination)/Central right and left branch control panel (illumination, ASR switch)/ Controls on steering wheel (illumination)/Control panel on front ceiling light (illumination)/Volumetric protection alarm system control unit (deactivation)/Power sunroof (control unit, control illumination)/rain sensor/daylight sensor on driving mirror/Front seat warming activation controls
F49
5
Air bag control unit (NAB)
F50
7,5
Internal cooling unit system/Sound system presetting/ Connect Nav +/Blu&Me system control unit/Parking sensor control unit (NSP)/Air quality sensor (AQS)/Automatic air-conditioner/Electric door mirrors (moving, folding)/ Tyre pressure monitoring control unit (CPP)
F51
5
Rear window wiper
F52
15
Instrument panel (NQS)
F53
7,5
Free
F38
—
Free
F45
—
Fuse box in engine compartment (next to the battery)

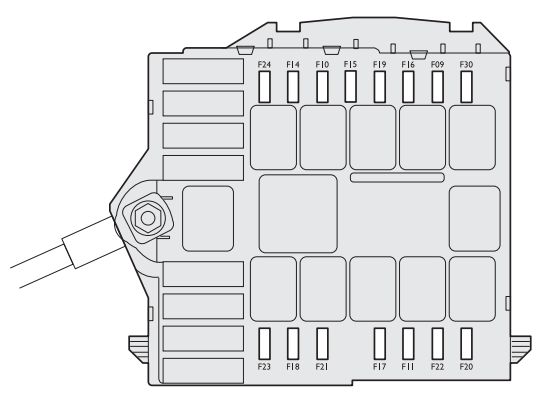

Fiat Bravo – fuse box- engine compartment
Component
Fuse
Ampere rating [A]
Front fog light/Cornering light, RH
F09
7,5
Right main beam headlight
F14
7,5
Left main beam headlight
F15
7,5
Front fog light/Cornering light, LH
F30
7,5
Single-tone horn
F10
10
Engine diagnosis system secondary loads (lambda sensor, canister solenoid valve, PDA system solenoid valve, EGR solenoid valve, throttle solenoid valve, VGT solenoid valve, glow plug warming control unit)
F11
15
Engine control unit (NCM)
F16
7,5
Engine control unit (NCM)
F17
10
Engine control unit (NCM)
F18
10
Conditioner compressor
F19
7,5
Headlight washer motor pump
F20
20
Fuel motor pump on tank
F21
15
Engine diagnosis system primary loads (injectors, ignition coils)
F22
15
Engine diagnosis system primary loads (injectors, ignition coils, engine control unit for diesel versions)
F22
20
Braking system control unit (NFR) (electronic control unit, solenoid valves)
F23
30
Electric steering control unit (NGE)
F24
7,5
Fuse box in boot compartment (optional)

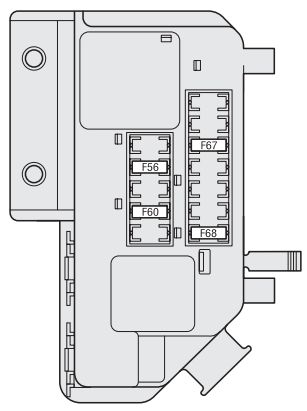

Fiat Bravo – fuse box – boot
Compartment
Fuse
Ampere rating [A]
Left front seat heating/movement
F56
30
Right front seat heating/movement
F60
30
Left front seat heating/movement
F67
10
Right front seat heating/movement
F68
10
Lights
Lights
Fuse
Ampere rating [A]
Fuse box
Right dipped beam (quartz-iodine headlights
F12
7,5
Dashboard
Right dipped beam (Bi-Xenon headlights)
F12
15
Dashboard
Left dipped beam (quartz-iodine headlights)
F13
7,5
Dashboard
Left dipped beam (Bi-Xenon headlights)
F13
15
Dashboard
Reversing light
F35
5
Dashboard
Third stop light
F37
7,5
Dashboard
Rear fog light (driver’s side)
F53
7,5
Dashboard
Front fog light/Cornering light, RH
F09
7,5
Engine compartment
Right main beam headlight
F14
7,5
Engine compartment
Left main beam headlight
F15
7,5
Engine compartment
Front fog light/Cornering light, LH
F30
7,5
Engine compartment
