Fiat Croma (2009 – 2011) – fuse box diagram
Year of production: 2009, 2010, 2011

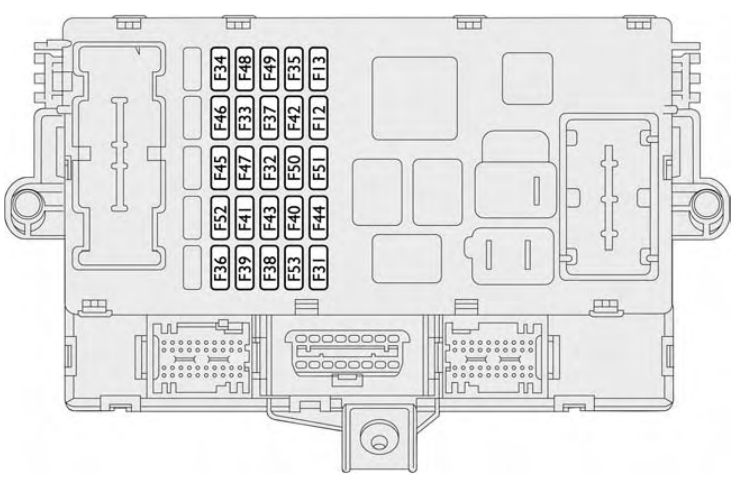

Fuse box in dashboard
| Users | Fuse | Ampere rating [A] |
| RH low beam | F12 | 15 |
| LH low beam – Light stability corrector | F13 | 15 |
| +15 excluded during ignition for dashboard control unit relay coils / engine compartment and Body computer | F31 | 7,5 |
| +30 nodes front driver and passenger doors (door lock), TEG reader | F32 | 15 |
| Boot compartment node power supply (rear left power window) | F33 | 20 |
| Boot compartment node power supply (rear right power window) | F34 | 20 |
| +15 backing lights, supplementary heater control unit, flow gauge, water in diesel fuel sensor, NC switch on brake pedal | F35 | 7,5 |
| +30 boot compartment node (rear door locks) | F36 | 20 |
| +15 instrument panel, control unit on gas discharge headlamps, NA switch on brake pedal, supplementary stop light | F37 | 10 |
| Boot opening actuator | F38 | 15 |
| +30 EOBD diagnostic socket , central front ceiling light, rear side ceiling lights, siren and volumetric sensor control unit for the antitheft system, tyre pressure control unit, air conditioning control unit, Blue-tooth control unit | F39 | 10 |
| Heated rear window | F40 | 30 |
| Windscreen / rear window washer nozzle demisters | F41 | 15 |
| +15 ABS / ESP control unit, electrohydraulic driving node, yaw sensor , steering angle sensor | F42 | 7,5/15(*) |
| +15 excluded during ignition for electronic column switch module (windscreen wipers, windscreen / rear window washer pump) | F43 | 30 |
| +15 excluded during ignition for cigar lighter, current outlet on tunnel | F44 | 20 |
| Sun roof engine control unit power supply | F45 | 20 |
| Sun roof visor engine control unit power supply | F46 | 20 |
| Front driver door node power supply (front driver power window) | F47 | 20 |
| Front passenger door node power supply (front passenger power window) | F48 | 20 |
| +15 volumetric sensor control unit for antitheft device, emergency control display plaque lights / Blue-tooth and roof visor on roof panel / driver and passenger front seat console, driver side control dashboard lights / tunnel, DVD player presetting, electrochromic mirror, air conditioning | F49 | 7,5 |
| +15 airbag control unit | F50 | 7,5 |
| +15 Connect, Blue-tooth control unit, after market radio presetting, pneumatic pressure control unit, cruise control, rain / twilight sensor control unit, parking sensor control unit, AQS sensor | F51 | 7,5 |
| +15 excluded during ignition for electronic column switch module (rear window wiper), relay coil on boot compartment control unit | F52 | 15 |
| +30 instrument panel | F53 | 7,5 |

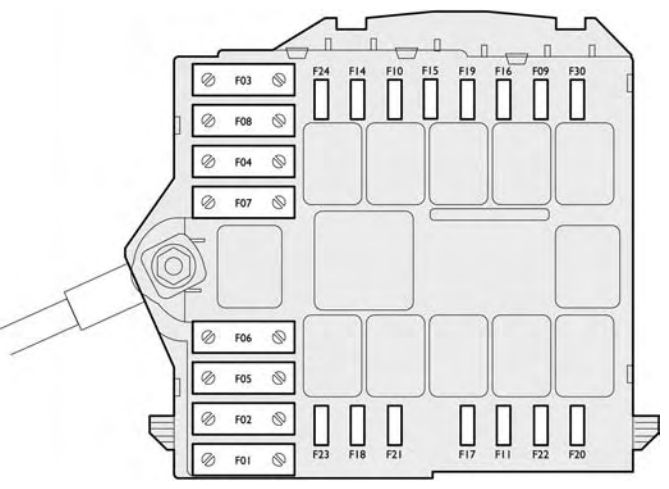

Fuse box in engine compartment
| Users | Fuse | Ampere rating [A] |
| Left fog light / cornering light | F9 | 7,5 |
| Buzzers | F10 | 15 |
| Engine control system power supply | F11 | 15 |
| RH high beam | F14 | 7,5 |
| LH high beam | F15 | 7,5 |
| +15 engine control unit | F16 | 7,5 |
| Engine control system power supply | F17 | 10 |
| +30 engine control unit | F18 | 7,5 |
| Conditioner compressor | F19 | 7,5 |
| Headlamp washer pump | F20 | 20 |
| Fuel pump | F21 | 15 |
| Engine control system power supply | F22 | 20 |
| +30 radio / Connect, supplementary heater control unit | F23 | 20 |
| +15 automatic transmission control unit, automatic transmission switch | F24 | 15 |
| Right fog light / cornering light | F30 | 7,5 |

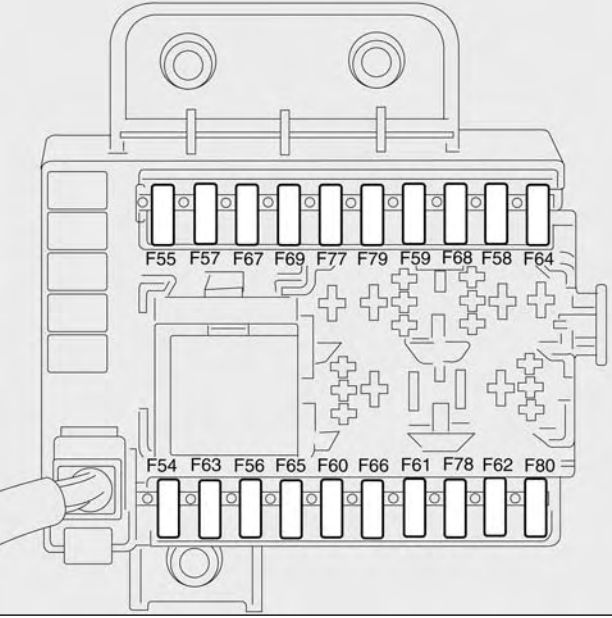

Fuse box in the boot
| Users | Fuse | Ampere rating [A] |
| +30 Hi-Fi audio amplifier | F54 | 25 |
| Free | F55 | — |
| +30 front driver seat regulation control unit | F56 | 25 |
| +15 excluded during ignition for front driver seat heating | F57 | 7,5 |
| Free | F58 | — |
| Free | F59 | — |
| +30 front passenger seat regulation control unit | F60 | 25 |
| Free | F61 | — |
| Free | F62 | — |
| Free | F63 | — |
| Free | F64 | — |
| Free | F65 | — |
| Free | F66 | — |
| +15 excluded during ignition for front driver seat heating | F67 | 7,5 |
| Free | F68 | — |
| Free | F69 | — |
| Free | F77 | — |
| Free | F78 | — |
| Free | F79 | — |
| Free | F80 | — |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
