Fiat Talento (2016 – 2018) – fuse box diagram
Year of production: 2016, 2017, 2018

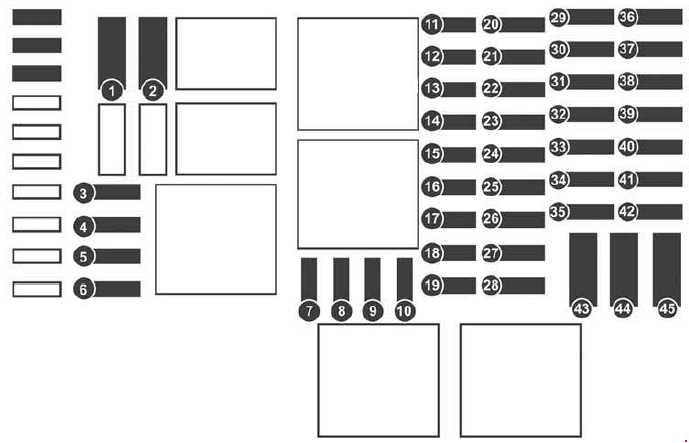

Fuse box diagram
| Number | Description |
| 1 | APC charger for vehicles with electronic key |
| 2 | — |
| 3 | — |
| 4 | + battery for vehicles with electronic key |
| 5 | Additional air conditioning |
| 6 | Additional cabin heating |
| 7 | Electric rearview mirrors, complementary central adaptation unit |
| 8 | Rear view mirror defroster |
| 9 | Radio, multi-media system, rear view mirror, diagnostic socket. |
| 10 | Predisposition for towing system |
| 11 | Timer battery, central passenger compartment unit |
| 12 | Right daytime running lights, front parking lights, right high beam, left low beam |
| 13 | Danger warning lights, direction indicators |
| 14 | Locking the opening parts |
| 15 | Left daytime running lights, rear parking lights, left high beam, right low beam |
| 16 | Licence plate light, front and rear fog lights |
| 17 | Alarms, acoustic warnings, light and windscreen wiper levers |
| 18 | Instrument panel |
| 19 | Heater |
| 20 | Rearscreen wipers, window washer pump, hom |
| 21 | General APC charger |
| 22 | Reversing lights |
| 23 | Stop switch |
| 24 | Injection, ignition |
| 25 | Air bag, steering wheel lock |
| 26 | Passenger’s electric window |
| 27 | Power steering |
| 28 | Brake lights |
| 29 | APC charger for vehicles with electronic key |
| 30 | General auxiliary |
| 31 | Cigar lighter, accessory socket |
| 32 | Heater |
| 33 | Stop lights, ABS, transponder |
| 34 | Interior lighting, air conditioning |
| 35 | Starter for vehicles with electronic key |
| 36 | Rear wiper |
| 37 | Electromagnetic warning |
| 38 | Additional socket in load compartment |
| 39 | Driver’s electric window motor |
| 40 | Auxiliary rear power socket |
| 41 | BCM starter |
| 42 | Heated seats |
| 43 | Tachograph |
| 44 | Front windscreen wiper |
| 45 | Heating and climate control |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
