Year of production:

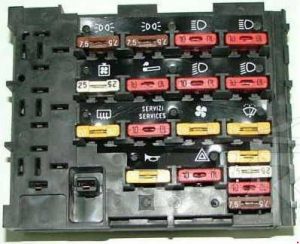

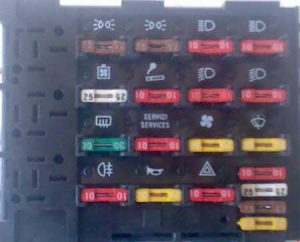

Fuse box

Fiat Uno – fuse box diagram
Fiat Uno – fuse box diagram

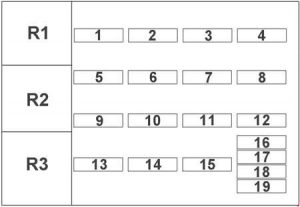

No.
A
Circuit protected
1 7.5 Left front parking, right rear tail lamp, cigar lighter illumination, heater control and clock, digital clock illumination
2 7.5 Right front parking lamp and left rear tail lamp, instrument panel illumination and rear number plate lamp
3 10 Left-hand headlamp (main beam)
4 10 Right-hand headlamp (main beam)
5 25 Engine cooling fan and horn (Comfort)
6 10 Courtesy lamps, cigar lighter, radio power feed, disc pad sensors, economy gauge (ES models)
7 10 Left-hand dipped headlamp, rear foglamps
8 10 Right-hand dipped headlamp
9 20 Heated tailgate glass
10 10 Stop lamps, direction indicator lamps, instrument panel warning lamps, tachometer economy gauge, check control system
11 20 Heater booster fan, digital clock map reading lamp
12 20 Windscreen wiper and washer, rear screen wiper/washer, check system panel illumination
13 10 Front fog lights
14 20 Spare (Comfort), Horn (Super)
15 10 Hazard warning lamps
16 Spare
17 Spare
18 Spare
19 Spare
Supplementary fuses at side of main fuse block
Fuses (903, 999, 1116, 1299/1301 and 1301 cc Turbo ie)
A 20 Front fog lamps
B 30 Cooling fan (Turbo ie models)
C 10 Fuel injector cooling fan (Turbo ie models)
D 30 Electric windows
E 10 Fuel pump (Turbo ie models)
Fuses (later 903, 999, 1108, 1372 ie and 1372 cc Turbo ie)
A 30 Electric windows
B 25 Central locking (where fitted)
C 10 Injector cooling fan (where fitted)
D 20 Headlamp washers (where fitted)
E 20 Foglamp and warning lamp
F Spare
G 10 Fuel pump (fuel injection models)
10 Heated Lambda sensor
Supplementary fuses on steering column relay bracket
10 Antiskid monitor circuit (where fitted)
25 Antiskid supply circuit (where fitted)

Auxiliary fuses and relays on 1301 cc Turbo ie models

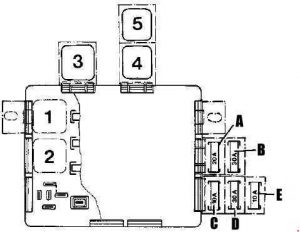

Fiat Uno – fuse box diagram – auxiliary fuse and relay
Fiat Uno – fuse box diagram – auxiliary fuse and relay
No.
Circuit protected
1 Horn relay
2 Heated rear screen relay
3 Foglamps relay
4 Radiator fan relay
5 Electric windows relay
Fiat Uno – fuse box diagram – auxiliary fuse
Fiat Uno – fuse box diagram – auxiliary fuse
Fiat Uno – fuse box diagram – auxiliary fuse
Fiat Uno – fuse box diagram – auxiliary fuse
