Ford Aspire (1993 – 2000) – fuse box diagram
Year of production: 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000

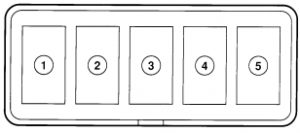

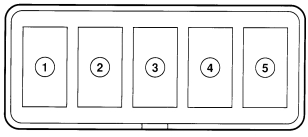

Main fuse block
| Fuse | Fuse name | Ampere rating [A] | Circuit protected |
| 1 | COOLING FAN | 30 | Cooling fan motor, condenser fan motor, magnetic clutch |
| 2 | ABS | 60 | Anti-lock braking system |
| 3 | MAIN | 80 | Air bag diagnostic monitor, anti-lock brake system control unit, anti-lock brake system relay, audio system, backup lamp, brake system unit, blower motor relay, cargo lamp, central processing unit, cigarette lighter, cooling fan relay, daytime running lamps relay, flasher unit, front side marker lamp, front wiper and washer, hazard lamp, horn, ignition coil, illumination (A/C switch, panel, rear defroster switch, upshift indicator), instrument cluster warning lights (air bag readiness, anti-lock brake system, brake system, charging, check engine, fuel, oil pressure, rear defroster, safety belt, tachometer), interior lamp, license plate lamp, powertrain control module, rear defroster, rear defroster relay, rear wiper and washer, tail lamp, tail lamp relat, turn signal lamp, stop lamp |
| 4 | EGI INJ | 30 | Air bag diagnostic monitor, powertrain control module |
| 5 | HEAD | 30 | Headlamps |
Fuse panel in the instrument panel
| Fuse | Fuse name | Ampere rating [A] | Circuit protected |
| 1 | ENGINE | 10 | Air bag system, anti-lock brake system, anti-lock brake system relay, blower motor relay, cooling fan relay, ignition main relay |
| 2 | METER | 15 | Back-up lamps, central processing unit, flasher unit, instrument cluster warning lights (air bag readiness, anti-lock brake, brake system, charging check engine, oil pressure, safety belt, rear defroster, upshift), intrument cluster gauges (fuel, shift-lock actuator, tachometer, turn signal indicator), turn signal lamps, rear defroster relay |
| 3 | DEFOG | 20 | Rear window defroster |
| 4 | — | 20 | Spare fuse |
| 5 | — | 15 | Spare fuse |
| 6 | — | — | — |
| 7 | F.FOG | 15 | Front fog lamps |
| 8 | — | — | — |
| 9 | — | — | — |
| 10 | WIPER | 20 | A/C switch, A/C relay, condenser fan motor, front windshield wipers and washer |
| 11 | R. WIPER | 15 | Blower motor unit, daytime running lamps system, rear windshield wiper and washer |
| 12 | BLOWER | 30 Circuit breaker | Vlimate control blower motor |
| 13 | HAZARD | 15 | Hazard warning flasher |
| 14 | STOP | 15 | Anti-lock brake system unit, brakelamps, cargo lamp, horn |
| 15 | TAIL | 15 | Front side marker lamps, instrument panel illumination, license plate lamps, parking lamps, tail lamps, turnsignal lamp |
| 16 | CIGAR | 15 | Audio system, cigar lighter |
| 17 | — | — | — |
| 18 | — | — | — |
| 19 | ROOM | 10 | Audio system, back-up lamps, central processing unit, interior courtesy lamp, powertrain control module |
Colors and amperage rating of standard fuses
| Fuse ampere rating [A] | Color |
| 10 | Red |
| 15 | Blue |
| 20 | Yellow |
| 30 | Light green |
| 30 FL | Pink |
| 40 | Green |
| 60 FL | Yellow |
| 80 FL | Black |
| 100 FL | Blue |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
