Ford C-MAX Hybrid/Energi (from 2014) – fuse box diagram
Year of production: 2014, 2015, 2016

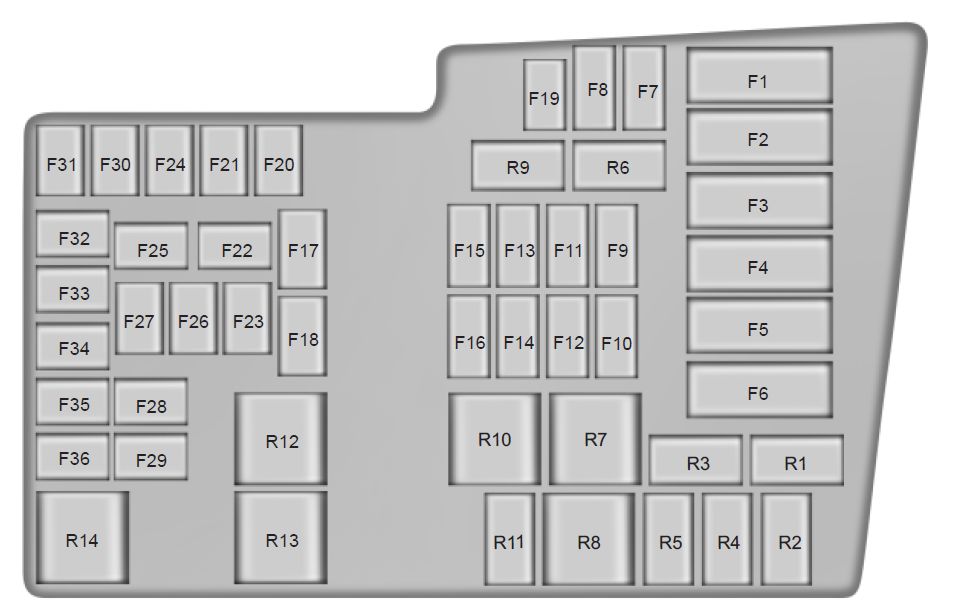

Power distribution box
The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.
Fuses
| Fuse | Ampere rating [A] | Protected components |
| F1 | 50A Midi | Cooling fan module |
| F2 | 50A Midi | Electric water pump |
| F3 | 50A Midi | Body control module supply 1 |
| F4 | 50A Midi | Body control module supply 2 |
| F5 | — | Not used |
| F6 | — | Not used |
| F7 | 40** | Anti-lock brake system pump |
| F8 | 30** | Anti-lock brake system valve |
| F9 | 40** | Vacuum pump |
| F10 | 40** | Heater blower motor |
| F11 | 30** | Engine management |
| F12 | — | Not used |
| F13 | 25** | Powertrain control module relay |
| F14 | 20** | Rear wiper |
| F15 | 30** | Body control module KL30 supply |
| F16 | 20** | Body control module 15 feed |
| F17 | 20** | Transmission oil pump (C-MAX Energi) |
| F18 | 20** | Front wiper motor |
| F19 | 5* | Anti-lock brake system and electronic stability program module |
| F20 | 15* | Horn |
| F21 | 5* | Stop light switch |
| F22 | 5* | Vacuum pump monitoring |
| F23 | 5* | Engine control module 15 / Powertrain control module 15 / Transmission oil pump 15 |
| F24 | 5* | Relay coils, Light switch module |
| F25 | 10* | Motor electronic cooling pump |
| F26 | 5* | Electronic power assist steering module 15 |
| F27 | 5* | Mass air flow sensor |
| F28 | 15* | Powertrain control module |
| F29 | 10* | Electronic A/C compressor / Positive temperature coefficient heater |
| F30 | 10* | Engine control module, Powertrain control module |
| F31 | 5* | Charge port light ring (C-MAX Energi) |
| F32 | 20* | Vehicle power 2 |
| F33 | 15* | Vehicle power 4 |
| F34 | 10* | Injectors |
| F35 | 10* | Vehicle power 3 |
| F36 | 20* | Vehicle power 1 |
| *Mini Fuses**Cartridge Fuses | ||
Relays
| Relays | Ampere rating [A] | Protected components |
| R1 | — | Not used |
| R2 | Micro relay | Horn |
| R3 | Micro relay | Hybrid powertrain control |
| R4 | Micro relay | Front wiper |
| R5 | — | Not used |
| R6 | Micro relay | Front and rear wiper high/low |
| R7 | Power relay | Vacuum pump |
| R8 | Power relay | Ignition feed |
| R9 | — | Not used |
| R10 | Mini relay | Vacuum pump sensor |
| R11 | — | Not used |
| R12 | Power relay | Cooling fan |
| R13 | Mini relay | Heater blower |
| R14 | Mini relay | Engine control relay |
| *Mini Fuses**Cartridge Fuses | ||

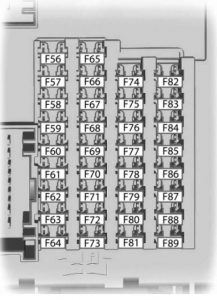

Passenger Compartment Fuse Panel
The fuse panel is located on the right side below the glove box.
| Fuse | Ampere rating [A] | Protected components |
| 56 | 20 | Fuel pump supply |
| 57 | — | Not used |
| 58 | 5 | Not used (spare) |
| 59 | 5 | Passive anti-theft system |
| 60 | 10 | Interior light, Driver door switch pack, Glove box illumination, Overhead console switch bank |
| 61 | 20 | Cigar lighter, Second row power point |
| 62 | 5 | Autowipers module, Auto-dimming rear view mirror |
| 63 | 10 | Not used (spare) |
| 64 | — | Not used |
| 65 | 10 | Liftgate release |
| 66 | 20 | Driver door unlock supply |
| 67 | 7,5 | Cell phone passport (C-MAX Energi), Multifunction display, GPS module, SYNC |
| 68 | 15 | Not used (spare) |
| 69 | 5 | Instrument cluster |
| 70 | 20 | Central lock and unlock supply |
| 71 | 10 | Heating control head (manual A/C), Climate control module |
| 72 | 7,5 | Steering wheel module |
| 73 | 5 | Data link connector, OBD II supply |
| 74 | 15 | Headlamp supply |
| 75 | 15 | Fog lamp supply |
| 76 | 10 | Reverse lamp supply |
| 77 | 20 | Washer pump |
| 78 | 5 | Ignition switch, Start button |
| 79 | 15 | Radio, Hazard light switch |
| 80 | 20 | Not used (spare) |
| 81 | 5 | Power sun shade, Remote receiver antenna |
| 82 | 20 | Washer pump ground |
| 83 | 20 | Central locking ground |
| 84 | 20 | Drive door unlock ground |
| 85 | 7,5 | Electronic 15 feed |
| 86 | 10 | Restraints control module, Passenger air bag deactivation indicator |
| 87 | — | Not used |
| 88 | 25 | Not used (spare) |
| 89 | — | Not used |

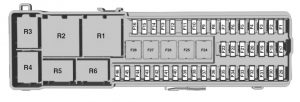

Luggage Compartment Fuse Panel
The fuse panel is located in the luggage compartment behind the left side wheel well. Remove the fuse panel cover to gain access to the fuses.
| Fuse/Relay | Ampere rating [A] | Protected Components |
| F1 | 5 | Hands-free liftgate entry module |
| F2 | 10 | Keyless vehicle module |
| F3 | 5 | Keyless vehicle door handles |
| F4 | 25 | Door control unit front left |
| F5 | 25 | Door control unit front right |
| F6 | 25 | Door control unit rear left |
| F7 | 25 | Door control unit rear right |
| F8 | — | Not used |
| F9 | 25 | Driver seat motor |
| F10 | 25 | Heated rear window |
| F11 | — | Not used |
| F12 | 15 | Battery electronics control module |
| F13 | — | Not used |
| F14 | 10 | Charger (C-MAX Energi) |
| F15 | — | Not used |
| F16 | — | Not used |
| F17 | 10 | Battery electronics control module |
| F18 | 15 | Battery electronics control module — fan |
| F19 | 15 | Charger fan (C-MAX Energi) |
| F20 | — | Not used |
| F21 | 10 | Smart datalink connector |
| F22 | 10 | Active noise cancellation |
| F23 | — | Not used |
| F24 | 30 | DC/AC power converter |
| F25 | 25 | Power liftgate |
| F26 | 40 | AC/DC charger (C-MAX Energi) |
| F27 | 20 | Luggage compartment outlet |
| F28 | — | Not used |
| F29 | — | Not used |
| F30 | 5 | Parking aid module |
| F31 | 5 | Rear view camera |
| F32 | 5 | DC/AC power converter |
| F33 | — | Not used |
| F34 | 20 | Driver seat heater |
| F35 | 20 | Passenger seat heater |
| F36 | — | Not used |
| F37 | 20 | Power sun shade |
| F38 | — | Not used |
| F39 | — | Not used |
| F40 | — | Not used |
| F41 | — | Not used |
| F42 | — | Not used |
| F43 | — | Not used |
| F44 | — | Not used |
| F45 | 5 | Humidity sensor |
| F46 | 10 | Fuel system |
| R1 | Power relay | Rear 15 relay |
| R2 | Mini relay | Heated rear window |
| R3 | Micro relay | Fuel door (C-MAX Energi) |
| R4 | — | Not used |
| R5 | — | Not used |
| R6 | Micro relay | Rear wiper |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
