Ford C-MAX (2003 – 2010) – fuse box diagram (EU version)

Ford C-MAX (2003 – 2010) – fuse box diagram (EU version)

Year of production: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010

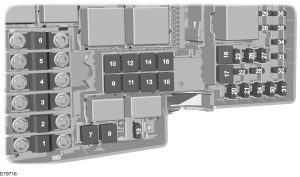

Engine compartment fuse box

Ford C-Max – fuse box – engine compartment

Fuse	Ampere rating [A]	Circuits protected
1	40	Cooling fan
2	80	Power steering
3	60	Passenger compartment fuse box supply 1
4	60	Passenger compartment fuse box supply 2
5	80	Auxiliary heater
6	60	Glow plug (diesel only)
7	30	ABS, stability control pump
8	20	ABS, stability control valves
9	20	Powertrain control module
10	30	Climate control blower
11	20	Ignition switch
12	40	Ignition relay 15l
13	20	Starter solenoid
14	40	Heated windscreen, right-hand side
15	30	Cooling fan relay (Sigma – non A/C only)
16	40	Heated windscreen, left-hand side
17	—	Not used
18	30	Power inverter
19	10	ABS module
20	15	Horn
21	20	Auxiliary heater
22	10	Power steering module
23	30	Headlamp washer
24	15	Auxiliary heater (diesel only)
25	10	Ignition, relays
26	15	Automatic transmission
27	10	Air conditioning clutch
28	10	Glow plug monitoring (diesel only)
29	10	Dual zone climate control
30	3	Powertrain control module, automatic transmission
31	10	Battery sensor smart charging
32	10	Automatic transmission
33	10	Heated oxygen sensors (petrol only)
33	10	Intercooler bypass valve (diesel only)
34	10	Injectors, ignition transformers
35	10	Powertrain control module, valves, solenoids
36	10	Powertrain control module

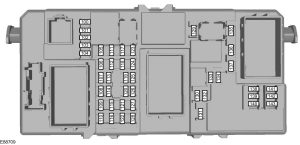

Passenger compartment fuse box

Ford C-Max – fuse box – passenger compartment

Fuse	Ampere rating [A]	Circuits protected
100	10	Electronic modules ignition supply
101	20	Electric sunroof control module, driver’s electric seat
102	10	Heater control, steering column, diesel particulate filter, remote control receiver
103	10	Lighting control battery supply
104	10	Battery saver, interior lamps
105	25	Heated rear window
106	20	Keyless system
107	10	Instrument cluster battery supply, on-board diagnostics
108	7,5	Accessory to cluster (audio and navigation unit)
109	20	Cigar lighter, rear auxiliary power socket
110	10	Daytime running lamps ignition supply to lighting control switch
111	15	Fuel pump (petrol engine only)
112	15	Audio modules battery supply
113	10	Daytime running lamps (parking lamps)
114	10	Instrument cluster ignition supply, engine immobiliser
115	7,5	Lighting control ignition supply
116	20	Fog lamps
117	7,5	Number plate lamps
118	20	Door module, left-hand rear
119	15	Luggage compartment auxiliary power socket
119	25	Luggage compartment auxiliary power socket (vehicles with trailer tow module)
120	20	Door module, right-hand rear
121	20	Heated front seats
122	10	Airbag module
123	7,5	Heated exterior mirrors
124	7,5	Parking lamps, side lamps, tail lamps (left-hand side)
125	7,5	Parking lamps, side lamps, tail lamps (right-hand side)
126	20	Keyless system
127	25	Electric windows
128	—	Not used
129	20	Windscreen wipers
130	—	Not used
131	15	Rear window wiper
132	15	Brake lamps
133	25	Central locking relays, passenger door module
134	20	Central locking, driver door module
135	20	Daytime running lamps
136	15	Washer pump, heated washer jets
137	10	Battery backup sounder
138	10	Powertrain control module, accelerator pedal, automatic transmission
139	10	Main beam right-hand side
140	10	Main beam left-hand side
141	10	Reversing lamp, electric mirrors
142	15	Dipped beam, right-hand side
143	15	Dipped beam, left-hand side

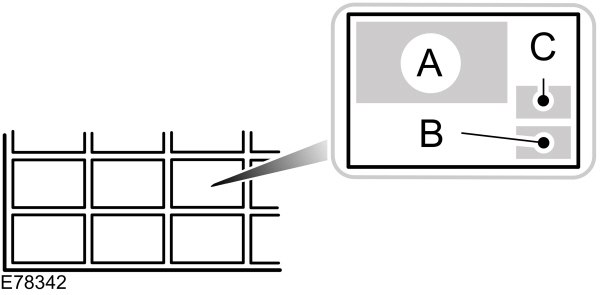

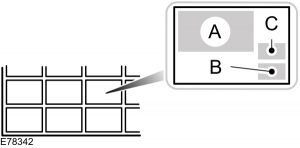

Fuse labels

Ford C-Max – wiring-diagram - fuse label — Ford C-Max – wiring-diagram – fuse label

A Symbol of the function
B Number of the fuse
C Ampere rating of the fuse

Symbol	Desciption
	Cooling fan
	Power steering
	Central fuse box, ignition relays
	Diesel pre-glow
	ABS module, ABS/ESP pumps/valves
	Engine management or electronic module
	Heater blower
	Heated windscreen
	PTC heater (vehicles with a diesel engine)
	Injectors, ignition transformers
	Headlamp washer
	Horn
	Diesel fuel heater

	Air conditioning
	Battery sense smart charging
	Central locking, ignition switch
	Electric parking brake (EPB)
