Ford Contour (1993 – 2000) – fuse box diagram
Year of production: 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000

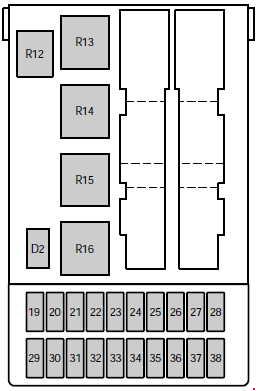

Passenger compartment fuse panel
| Fuse | A | Description |
| 19 | 7,5 | up to 1997: Heated rear view mirrors |
| 20 | 10 | Wiper motors (circuit breaker) |
| 21 | 40 | Power windows |
| 22 | 7,5 | up to 1999: ABS module |
| 23 | 15 | Backup lamps |
| 24 | 15 | Brake lamps |
| 25 | 20 | Door locks |
| 26 | 7,5 | Main light |
| 27 | 15 | Cigar lighter |
| 28 | 30 | Electric seats |
| 29 | 30 | Rear window defrost |
| 30 | 7,5 | Engine management system |
| 31 | 7,5 | Instrument panel illumination |
| 32 | 7,5 | Radio |
| 33 | 7,5 | Parking lamps – driver’s side |
| 34 | 7,5 | Interior lighting/electric mirror adjustment/clock |
| 35 | 7,5 | Parking lamps – passenger’s side |
| 36 | 10 | up to 1998: Air bag |
| 37 | 30 | Heater blower motor |
| 38 | — | — |
| Relay | ||
| R12 | Interior lighting | |
| R13 | Rear window defrost | |
| R14 | Heater blower motor | |
| R15 | Wiper motor | |
| R16 | Ignition | |
| D2 | Reverse voltage protection | |

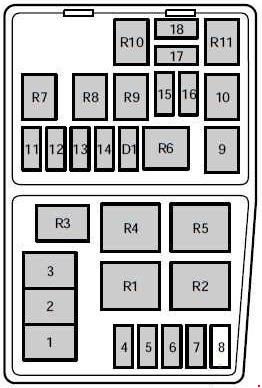

Fuse box in the engine compartment (up to 1998)
| Number | A | Description |
| 1 | 80 | Main power supply to vehicle electrical system |
| 2 | 60 | Engine cooling fan |
| 3 | 60 | ABS braking system, heater blower |
| 4 | 20 | Ignition, EEC module, Daytime running lights |
| 5 | 15 | Foglamp |
| 6 | — | — |
| 7 | 20 | 1998: ABS system |
| 30 | up to 1997: ABS system | |
| 8 | 30 | up to 1997: Air pump |
| 9 | 20 | Electronic Engine Control (EEC) |
| 10 | 20 | Ignition switch |
| 11 | 3 | EEC ignition module (memory) |
| 12 | 15 | Horn and hazard flasher warning system |
| 13 | 20 | 1998: HEGO sensor |
| 15 | up to 1997: HEGO sensor | |
| 14 | 15 | Electrically operated fuel pump |
| 15 | 10 | Low beam headlamp -(passengers side) |
| 16 | 10 | Low beam headlamp -(driver’s side) |
| 17 | 10 | High beam headlamp -(passengers side) |
| 18 | 10 | High beam headlamp -(driver’s side) |
| Relay | ||
| R1 | Daytime running lights | |
| R2 | Radiator fan relay (high speed) | |
| R3 | Air conditioning | |
| R4 | Air conditioning clutch relay | |
| R5 | Radiator fan relay (low speed) | |
| R6 | Starter solenoid | |
| R7 | Horn | |
| R8 | Fuel pump | |
| R9 | Low beam headlamps | |
| R10 | High beam headlamps | |
| R11 | PCM module | |
| D1 | Reverse voltage protection | |

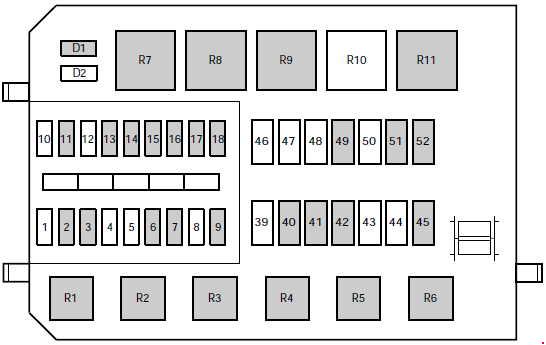

Fuse box in the engine compartment (as of 1999)
| Fuse | A | Description |
| 1 | — | — |
| 2 | 7,5 | Alternator |
| 3 | 20 | Foglamps |
| 4 | — | — |
| 5 | — | — |
| 6 | 3 | EEC ignition module (memory) |
| 7 | 20 | Horn and hazard flasher warning system |
| 8 | — | — |
| 9 | 15 | Fuel pump |
| 10 | — | — |
| 11 | 20 | Ignition, Electronic Engine Control |
| 12 | — | — |
| 13 | 20 | HEGO sensor |
| 14 | 7,5 | ABS module |
| 15 | 7,5 | Low beam headlamp (passenger’s side) |
| 16 | 7,5 | Low beam headlamp (driver’s side) |
| 17 | 7,5 | High beam headlamp (passenger’s side) |
| 18 | 7,5 | High beam headlamp (driver’s side) |
| 39 | — | — |
| 40 | 20* | Ignition, light switch, central junction box |
| 41 | 20* | EEC relay |
| 42 | 40 | Central junction box (fuse 37 to blower relay) |
| 43 | — | — |
| 44 | — | — |
| 45 | 60 | Ignition |
| 47 | — | — |
| 48 | — | — |
| 49 | 60 | Engine cooling |
| 50 | — | — |
| 51 | 60 | ABS |
| 52 | 60 | Central junction box (central timer module, rear window defrost relay, fuses 24, 25, 27, 28, 34) |
| Relay | ||
| R1 | Fuel pump | |
| R2 | EEC module | |
| R3 | Air conditioning | |
| R4 | Low beam | |
| R5 | High beam | |
| R6 | Horn | |
| R7 | Starter solenoid | |
| R8 | Engine cooling fan (high speed) | |
| R9 | Engine cooling fan | |
| R10 | — | |
| R11 | Daytime running lights | |
| D1 | Reverse voltage protection | |
| D2 | — | |
Auxiliary relays (outside of fuse boxes)
| Number | Circuit switched | Location |
| R18 | “One touch” switch (drivers window) | Driver’s door |
| R20 | — | — |
| R21 | — | — |
| R22 | Foglamps | Wire shield on instrument panel |
| R23 | Turn signals | Steering column |
| R24 | Panic alarm – driver’s side | Door lock module bracket |
| R25 | Panic alarm – right-hand side | Door lock module bracket |
| R26 | — | — |
| R32 | Hego heater control | Near PCM-Module |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
