Ford Contour (1996 – 2000) – fuse box diagram
Year of production: 1996, 1997, 1998, 1999, 2000
Power distribution box fuses and relays
Fuses
| Fuse | Ampere rating [A] | Description |
| 1 | 80 | Main power supply |
| 2 | 60 | Engine cooling fan |
| 3 | 60 | ABS braking system |
| 4 | 20 | Daytime running lights, ignition |
| 5 | 15 | Fog lamp |
| 6 | — | Not used |
| 7 | 30 | ABS braking system |
| 8 | 30 | Air pump |
| 9 | 20 | EEC module |
| 10 | 20 | Ignition switch |
| 11 | 3 | EEC memory |
| 12 | 15 | Hazard flasher, horn |
| 13 | 15 | HEGO sensor |
| 14 | 15 | Fuel pump |
| 15 | 10 | Right low beam |
| 16 | 10 | Left low beam |
| 17 | 10 | Right high beam |
| 18 | 10 | Left high beam |
Relays
| Relay | Relay color | Description |
| R1 | white | Daytime running lights (Canada) |
| R2 | black | High speed engine cooling fan |
| R3 | blue | A/C wide open throttle |
| R4 | yellow | A/C clutch relay |
| R5 | dark green | Engine cooling fan |
| R6 | yellow | Starter |
| R7 | brown | Horn |
| R8 | brown | Fuel pump |
| R9 | white | Low beam |
| R10 | white | High beam |
| R11 | brown | PCM module |
| D1 | black | Reverse voltage protection |

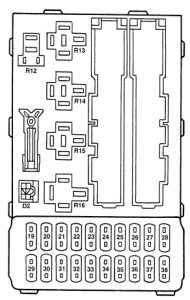

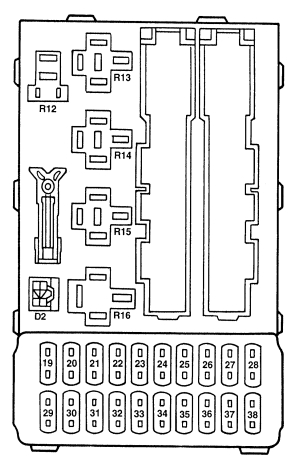

Instrument panel fuse
Fuses
| Fuse | Ampere rating [A] | Description |
| 19 | 7,5 | Heated rear view mirrors |
| 20 | 10 CB | Wipers |
| 21 | 40 | Power windows |
| 22 | 7,5 | ABS module |
| 23 | 15 | Backup lamps |
| 24 | 15 | Brakelamps |
| 25 | 20 | Door locks |
| 26 | 7,5 | Main light |
| 27 | 15 | Cigar lighter |
| 28 | 30 | Power seats |
| 29 | 30 | Rear window defrost |
| 30 | 7,5 | Engine management system |
| 31 | 7,5 | Instrument panel illumination |
| 32 | 7,5 | Radio |
| 33 | 7,5 | Left-hand parking lamps |
| 34 | 7,5 | Courtesy lamps |
| 35 | 7,5 | Right-hand parking lamps |
| 36 | 10 | Air bag |
| 37 | 30 | Blower motor |
| 38 | — | Not used |
Relays
| Relay | Color | Description |
| R12 | white | Courtesy lights |
| R13 | yellow | Rear window defroster |
| R14 | yellow | Heater fan motor |
| R15 | green | Wipers |
| R16 | black | Ignition |
| D2 | black | Reverse voltage protection |
| Relays outside the fuse box | ||
| R17 | — | Not used |
| R18 | black | Express down windows |
| R19 | blue | Speed control cut-out |
| R20 | — | Not used |
| R21 | — | Not used |
| R22 | white | Fog lamps |
| R23 | black | Turn signal |
| R24 | white | Left panic alarm flasher |
| R25 | white | Right panic alarm flasher |
| R26 | — | Not used |
| R27 | — | Not used |
| R28 | — | Not used |
| R29 | brown | Door lock control |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
