Ford Crown Victoria (1998 – 2002) – fuse box diagram
Year of production: 1998, 1999, 2000, 2001, 2002

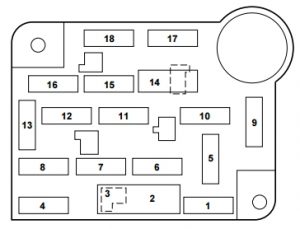

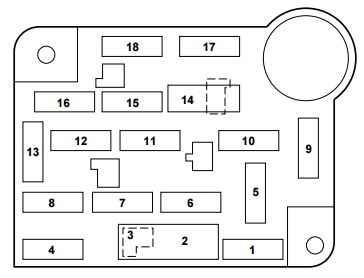

Passenger compartment fuse panel
| Fuse/relay | Ampere rating [A] | Description |
| 1 | 15 | Brake Pedal Position (BPP) Switch, Multi-Function Switch, Speed Control |
| 2 | 30 | Wiper Control Module, Windshield Wiper Motor |
| 3 | — | Not used |
| 4 | 15 | Lighting Control Module, Main Light Switch |
| 5 | 15 | Backup Lamps, Variable Assist Power Steering (VAPS), Turn Signals, Air Suspension, Daytime Running Lamps, Electronic Day/Night Mirror, Shift Lock, EATC, Speed Chime Warning |
| 6 | 15 | Speed Control, Main Light Switch, Lighting Control Module, Clock, Police Power Relay |
| 7 | 25 | Powertrain Control Module (PCM) Power Diode, Ignition Coils |
| 8 | 15 | Lighting Control Module, Power Mirrors, PATS Module, Keyless Entry, Clock Memory, Electronic Automatic Temperature Control (EATC), Power Windows, Police Spot Light, SecuriLock |
| 9 | 30 | Blower Motor, A/C-Heater Mode Switch |
| 10 | 30 | Air Bag Module |
| 11 | 5 | Radio |
| 12 | 18 CB | Lighting Control Module, Flash-to-Pass, Main Light Switch |
| 13 | 15 | Warning Lamps, Analog Cluster Gauges and Indicators, Electronic Automatic Transmission, Lighting Control Module |
| 14 | 20 CB | Window/Door Lock Control, Driver’s Door Module, One Touch Down |
| 15 | 10 | Anti-Lock Brakes, Instrument Cluster, Transmission Control Switch |
| 16 | 20 | Cigar Lighter |
| 17 | 10 | Rear Defrost |
| 18 | 10 | Air Bag Module |

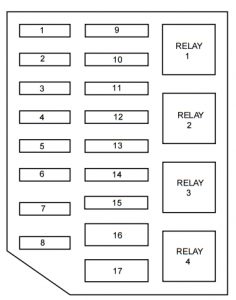

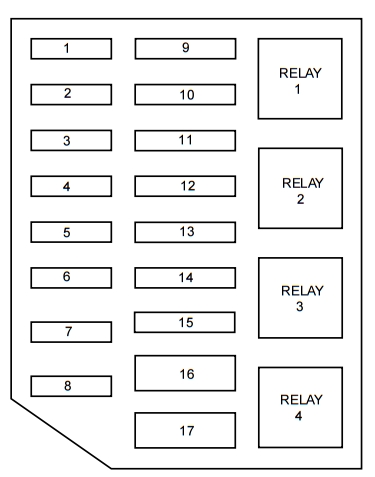

Power distribution box
| Fuse/relay | Ampere rating [A] | Description |
| 1 | 20* | Electric Fuel Pump Relay |
| 2 | 30* | Generator, Starter Relay, Fuses 15 and 18 |
| 3 | 25* | Radio, CD Changer, Subwoofer Amplifier |
| 4 | 30* | Police Power Relay |
| 5 | 15* | Horn Relay |
| 6 | 20* | DRL Module |
| 7 | 20 CB | Power door Locks, Power Seats, Trunk Lid Release |
| 8 | 30** | Air Suspension System |
| 9 | 50** | See Fuses 5 and 9 |
| 10 | 50** | See Fuses 1, 2, 6, 7, 10, 11, 13 and Circuit Breaker 14 |
| 11 | 40** | See Fuses 4, 8, 16 and Circuit Breaker 12 |
| 12 | 30** | PCM Power Relay, PCM, Natural Gas Vehicle Module |
| 13 | 50** | High Speed Cooling Fan Relay |
| 14 | 40** | Rear Window Defrost Relay, Also see Fuse 17 |
| 15 | 50** | Anti-Lock Brake Module |
| 16 | 50** | Police Option Fuse Holder |
| 17 | 30** | Cooling Fan Relay |
| Relay 1 | — | Rear Defrost Relay |
| Relay 2 | — | Horn Relay |
| Relay 3 | — | Cooling Fan Relay |
| Relay 4 | — | Air Suspension Pump Relay, Police Power Relay |
| * Mini Fuses ** Maxi Fuses | ||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
