Ford Crown Victoria (2003 – 2013) – fuse box diagram
Year of production: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
Passenger compartment fuse panel
2003 – 2004

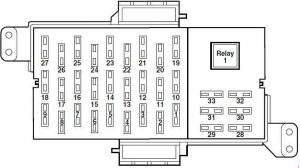

2005 – 2013
| Fuse/relay | Ampere rating [A] | Description |
| 1 | 15 | 2003-2004: Audio, CD changer 2005-2006: Taxi, Cluster, Lighting Control Module (Interior Lighting) |
| 10 | 2007-2012: Ignition (START) – Starter relay coil, DTRS | |
| 2 | 5 | 2003-2004: Audio |
| 10 | 2005-2006: Ignition (ON) – Electronic Automatic Temperature Control (EATC) module, A/C mode switch (vehicles equipped with EATC only), A/C blower relay coil | |
| 7,5 | 2007-2012: Power mirrors, Door lock switches, Mirror switch, Keypad switch, Decklid switch, DDM, Cluster | |
| 3 | 7,5 | 2003-2004: Mirrors |
| 10 | 2005-2006: EATC module (vehicles equipped with EATC only) Audio (base audio system on vehicles not equipped with EATC) |
|
| 5 | 2007-2012: Ignition (START) – Audio mute, Police power distribution box (PDB) (Police vehicles only) | |
| 4 | 10 | 2003-2004: Air bags 2005-2006: Ignition (ON) – Anti-lock Brake System (ABS) module, Rear Air Suspension Module (RASM), Variable Assist Power Steering (VAPS) 2007-2012: Lighting control module (LCM) (switch illumination), Autolamp sensor |
| 5 | 25 | 2003-2004: Package tray and rear flasher (Police vehicle options) |
| 10 | 2005-2006: Speed control deactivation switch, Stop signal, Brake-Transmission Shift Interlock (BTSI) (column-shift transmission) | |
| 7,5 | 2007-2012: Ignition (ON/ACC) – LCM | |
| 6 | 15 | 2003-2004: Instrument cluster warning lamps module, Overdrive control switch, Lighting Control Module (LCM), A/C clutch, Analog cluster |
| 10 | 2005-2006: Ignition (ON) – Cluster | |
| 7,5 | 2007-2012: LCM | |
| 7 | 10 | 2003-2004: Driver’s Door Module (DDM), Premium radio, Start input to police PDB (Police vehicle option) 2005-2006: LCM (Park lamps, Switch illumination) 2007-2012: Ignition (ON/ACC) – Wiper module |
| 8 | 25 | 2003-2004: Powertrain Control Module (PCM) power relay, Coil-on plugs, Radio noise capacitor, Passive Anti-Theft System (PATS) |
| 10 | 2005: Ignition (ON) – Rear Air Suspension Module (RASM), Variable Assist Power Steering (VAPS) 2006: LCM 2007-2012: Electronic automatic temperature control (EATC) module (vehicles equipped with EATC only) |
|
| 9 | 5 | 2003-2004: Transmission range sensor |
| 20 | 2005: LCM (Headlamps, Cornering lamps) | |
| 10 | 2006: LCM (Switch illumination) | |
| 7,5 | 2007-2012: Ignition (ON/ACC) – Door lock switch illumination, Heated seat switch illumination, Moon roof, Overhead console, Radio, Antenna, Electrochromatic mirror, Window relay coil (non-Police vehicles only), Window and decklid relay coil and Police ON/ACC relay coil (Police vehicles only) | |
| 10 | 10 | 2003-2004: Rear window defrost, Heated mirrors |
| 5 | 2005-2006: Ignition (ON/START) – Driver’s Door Module (DDM), Police PDB (Police vehicles only) | |
| 15 | 2007-2012: Hazards (non-Police vehicles only) | |
| 20 | 2007-2012: Hazards (Police vehicles only) | |
| 11 | 5 | 2003-2004: Traction control indicator relay (ABS w/traction control only) |
| 10 | 2005-2006: Ignition (START) – ON/ACC (window) relay coil (non-Police vehicles only) Ignition (START) – ON/ACC (window and decklid) relay coil and Police ON/ACC relay coil (Police vehicles only) |
|
| 15 | 2007-2012: Ignition (ON) – Turn signals | |
| 12 | 15 | 2003-2004: Multi-function switch for turn/hazard lamps |
| 10 | 2005-2006: Ignition (ON/START) – Starter relay coil, DTRS | |
| 15 | 2007-2012: Audio | |
| 13 | 5 | 2003-2004: Radio |
| 10 | 2005-2006: Ignition (START) – Wiper module 2007-2012: Ignition (ON) – Anti-lock Brake System (ABS; 2007-2008) module, Rear Air Suspension Module (RASM), Variable Assist Power Steering (VAPS; 2007-2008), Cluster |
|
| 14 | 10 | 2003-2004: Anti-lock Brake System (ABS), Instrument Cluster 2005-2006: Ignition (ON) – BTSI (Floor-shift transmission) |
| 15 | 2007-2012: Taxi, Adjustable pedals | |
| 15 | 15 | 2003-2004: Speed control module, Power relay coil (Police vehicle option), LCM, Clock, EATC blower motor relay, Door lock switch illumination, Heated seat switch, Moonroof |
| 7,5 | 2005-2006: Ignition (START) – LCM, Door lock switch illumination, Heated seat switch illumination, Moonroof, Overhead console, Electrochromatic mirror | |
| 10 | 2007-2012: Ignition (ON) – EATC module, A/C mode switch (vehicles equipped with manual A/C only), A/C blower relay coil | |
| 16 | 15 | 2003-2004: Reversing lamps, Shift lock, DRL module, VAP Steering, Electronic day/night mirror, Overhead console, Air suspension, 2005-2006: Climate control, Heated seat module, Speed chime module (GCC only), DDM, Back-up lamps Ignition (ON) – Turn signals |
| 20 | 2007-2012: Cigar lighter (2007-2008), OBD II | |
| 17 | 7,5 | 2003-2004: Wiper motor |
| 10 | 2005-2006: Ignition (START) – Audio 2007-2012: Ignition (ON) – A/C mode switch (vehicles equipped with manual A/C), Blend door, Heated seat modules, BTSI (Floor-shift transmission) |
|
| 18 | 10 | 2003-2004: Not used 2005-2006: Ignition (ON) – A/C mode switch (manual A/C only), Blend door, DDM, Heated seat modules, Daytime Running Lamps (DRL) module |
| 15 | 2007-2012: Lighting control module (interior lighting) | |
| 19 | 15 | 2003-2004: Brake lamps, Brake signal for PCM, ABS and speed control module, DDM |
| 10 | 2005-2012: Left-hand low beam, DRL | |
| 20 | 20 | 2003-2004: Spot lamp (Police vehicle option) |
| 10 | 2005-2012: Ignition (ON/ACC) – Back-up lamps, Anti-lock brake system (ABS; 2009-2012) | |
| 21 | 15 | 2003-2004: LCM for park lamps and interior illumination, Autolamp/Sunload sensor |
| 10 | 2005-2012: Right-hand low beam, DRL | |
| 22 | 20 | 2003-2004: Speed control servo, Multi-function switch for hazard lamps, Brake on/off switch, Feed for IP fuse 19 |
| 10 | 2005-2012: Ignition (ON/ACC) – Restraint Control Module (RCM), Occupant Classification Sensor (OCS), Passenger Air bag Deactivation Indicator (PADI) | |
| 23 | 15 | 2003-2004: EATC module, Instrument cluster, Clock, LCM, Interior lamps, Door lock switches, Door ajar and roof lamps (Taxi vehicles) 2005-2012: Multi-function switch (Flash-to-pass), LCM (High beams; 2006-2012) |
| 24 | 10 | 2003-2004: Left-hand low beam 2005-2012: Ignition (ON/ACC) – Passive Anti-Theft System (PATS) module, Powertrain Control Module (PCM) relay coil, Fuel relay coil, Ignition coil relay coil |
| 25 | 15 | 2003-2004: Cigar lighter 2005-2006: Autolamp/Sunload sensor, Power mirrors, Door lock switches (DDM), Mirror switch, Keypad switch, Decklid switch, Adjustable pedal switch, DDM 2007-2012: LCM (Park lamps, corner lamps, license lamps) |
| 26 | 10 | 2003-2004: Right-hand low beam 2005-2006: Ignition (ON/ACC) – Analog cluster, Warning lamp module, LCM, Overdrive cancel switch, Rear defroster relay coil 2007-2012: Ignition (ON/START) – Cluster, LCM, Overdrive cancel switch, Traction control switch |
| 27 | 25 | 2003-2004: LCM for cornering lamps and high beam headlamps |
| 20 | 2005-2006: Cigar lighter, OBD II, Power point 2007-2012: Not used |
|
| 28 | 20 | 2003-2004: Power windows, DDM, Instrument panel/Door decklid release (police vehicles only) |
| 10 | 2005-2006: Center High-Mounted Stop Lamp (CHMSL) | |
| 7,5 | 2007-2012: Brake signal, LCM (brake transmission shift interlock), ABS | |
| 29 | 15 | 2003-2004: Not used 2005-2006: Audio |
| 2 | 2007-2012: Hazard in (Police vehicles only) | |
| 30 | 15 | 2003-2004: Not used 2005-2006: Stop lamps, MFS |
| 2 | 2007-2012: Battery saver (Police vehicles only) | |
| 31 | 15 | 2003-2004: Not used 2005-2006: Hazards (non-Police vehicles) |
| 20 | 2005-2006: Hazards (Police vehicles) | |
| 5 | 2007-2012: Key in (LCM) | |
| 32 | 10 | 2003-2004: Not used 2005-2006: Mirror heaters, Rear defroster switch indicator |
| 2 | 2007-2012: Hazard out (Police vehicles only) | |
| 33 | 10 | Fire suppression module (if equipped) (Police vehicles only) |
| Relay | ||
| K101 | 2005-2006: Rear defroster 2007-2012: Window relay, Decklid (Police vehicles only) |
|
Engine Compartment Fuse Box
| Fuse/relay | Ampere rating [A] | Description |
| 1 | 25 | 2003-2004: Audio |
| 20 | 2005: Ignition switch (Key in, RUN 1, RUN 2) | |
| 25 | 2006: Ignition switch (Key in, RUN 1, RUN 2), Hazards | |
| 30 | 2007-2012: Ignition switch | |
| 2 | 20 | 2003-2004: Power point |
| 25 | 2005-2006: Ignition switch (RUN/START, RUN/ACC, START) | |
| 20 | 2007-2012: Moon roof (’07-’08), Spot lights (Police vehicles only) | |
| 3 | 20 | 2003-2004: Heated seats |
| 10 | 2005-2012: Powertrain control module (PCM) – keep alive power, Canister vent | |
| 4 | 10 | 2003-2004: Horns |
| 20 | 2005-2012: Fuel relay feed | |
| 5 | 20 | 2003-2004: Fuel pump |
| 10 | 2005-2012: Rear Air Suspension Module (RASM), VAPS module (’05-’08) | |
| 6 | 15 | 2003-2004: Not used 2005-2012: Alternator regulator |
| 7 | 20 | 2003-2004: Moonroof |
| 30 | 2005-2012: PCM relay feed | |
| 8 | 20 | Driver’s Door Module (DDM) |
| 9 | 15 | 2003-2004: Not used 2005-2012: Ignition coil relay feed |
| 10 | 20 | 2003-2004: Not used 2005-2012: Horn relay feed |
| 11 | 20 | 2003-2004: Daytime Running Lamps (DRL) |
| 15 | 2005-2012: A/C clutch relay feed | |
| 12 | 25 | 2003-2004: Not used 2005-2012: Audio (non-Police vehicles only) Tray lamps (Police vehicles only) |
| 13 | 20 | 2003-2004: Not used 2005-2012: Instrument panel power point |
| 14 | 20 | 2003-2004: Not used 2005-2012: Stop lamp switch |
| 15 | 15 | 2004: Alternator |
| 20 | 2005-2006: Heated seats | |
| 15 | 2007-2012: Police accessory battery feed 1 (Police vehicles only) | |
| 16 | 20 | 2003-2004: Not used 2005: Daytime Running Lamps (DRL) module |
| 25 | 2006: Tray lamps (Police vehicles only) | |
| 20 | 2007-2012: Heated seats, Police accessory battery feed 2 (Police vehicles only) | |
| 17 | 10 | 2003-2007: Not used 2008-2012: Commercial R/A |
| 18 | 10 | 2003-2007: Not used 2008-2012: Commercial R/A |
| 19 | 10 | 2003-2004: Powertrain Control Module (PCM), Fuel injectors, NGV fuel injector module |
| 15 | 2005-2012: Injectors | |
| 20 | 10 | 2003-2004: PCM, HEGOs |
| 15 | 2005-2006: PCM, Mass Air Flow (MAF) sensor, IAT 2007-2012: PCM |
|
| 21 | 15 | 2003-2004: Not used 2005-2012: Powertrain loads and sensors, A/C clutch relay coil (2006) |
| 22 | 20 | 2003-2005: Not used 2006-2012: Police PDB outputs (Police vehicles only) |
| 23 | 20 | 2003-2005: Not used 2006-2012: Police PDB outputs (Police vehicles only) |
| 24 | 5 | 2003-2004: Not used 2005: Radio mute 2006: Not used |
| 10 | 2007-2012: Heated mirrors, Rear defrost indicator | |
| 101 | 30 | 2003-2004: Ignition switch, Starter motor solenoid via starter relay, IP fuses 7, 9, 12 and 14 |
| 40 | 2005-2012: Blower relay feed | |
| 102 | 50 | Cooling fan (engine) |
| 103 | 40 | 2003-2004: Blower motor |
| 50 | 2005: Instrument panel (I/P) fuse box feed #1, I/P fuses 23, 25, 27 and 31 2006: Instrument panel (I/P) fuse box feed #1, I/P fuses 19, 21, 23, 25 and 27 2007-2012: Instrument panel (I/P) fuse box feed #1, I/P fuses 10, 12, 14, 16 and 18 |
|
| 104 | 40 | 2003-2004: Heated backlight relay 2005: Instrument panel (I/P) fuse box feed #2, I/P fuses 1, 3, 5, 7 and 9 2006: Instrument panel (I/P) fuse box feed #2, I/P fuses 1, 3, 5, 7, 8 and 9 |
| 50 | 2007-2012: Instrument panel (I/P) fuse box feed #2, I/P fuses 2, 4, 6, 8, 19, 21, 23 and 25 | |
| 105 | 30 | 2003-2004: PCM power relay or NGV module (natural gas vehicles only), Diagnostic connector, PDB 19 and 20, A/C clutch relay, Fuel pump module relay 2005-2012: Starter relay feed |
| 106 | 40 | Anti-lock brake system (ABS) module (Pump) |
| 107 | 40 | 2003: Crown North America (Police vehicle option) |
| 50 | 2004: Police rear access power point (Police vehicles only) | |
| 40 | 2005-2012: Rear defroster relay feed | |
| 108 | 50 | 2003-2004: Police rear access power point (Police vehicles only) |
| 20 | 2005-2006: Moonroof (non-Police vehicles only) Spotlights (available on Police vehicles, Long Wheel Base [LWB] vehicles and commercial vehicles only) 2007-2012: 2009-2012: Cigar lighter (Non-police vehicles only), Police accessory battery feed 3 (Police vehicles only) |
|
| 109 | 50 | 2003-2004: Light bar (Police vehicle option) |
| 20 | 2005-2012: ABS module (Valves) | |
| 110 | 50 | 2003-2004: Relay switch for front PDB (Police vehicle option) |
| 30 | 2005-2012: Wiper module | |
| 111 | 30 | 2003-2004: Power relay switch feed (Police vehicle option) |
| 50 | 2005-2012: Police PDB or Police I/P accessory battery feed (Police vehicles only) | |
| 112 | 50 | 2003-2004: Ignition switch feed to IP fuses 4, 6, 8, 11, 13, 15, 17, 20, 22 and 28 |
| 30 | 2005-2012: Air suspension compressor (non-Police vehicles only) | |
| 40 | 2005-2012: Police PDB relay feed (Police vehicles only) | |
| 113 | 50 | 2003-2004: Feeds IP fuses 3, 5, 21, 23, 25, 27 2005-2012: Police light bar or Police Trunk (right-hand kick panel) accessory battery feed (Police vehicles only) |
| 114 | 30 | 2003-2004: VAP Steering, Air suspension compressor, Instrument cluster |
| 50 | 2005-2012: Police PDB or Police I/P accessory battery feed (Police vehicles only) | |
| 115 | 50 | 2003-2004: Ignition switch feed to IP fuses 16 and 18 2005-2012: Rear power point or Police Trunk (right-hand kick panel) accessory battery feed (Police vehicles only) |
| 116 | 30 | 2003-2004: Wipers |
| 50 | 2005-2012: Police I/P accessory battery feed (Police vehicles only) | |
| 117 | 50 | 2003-2004: B+ feed for PDB (Police vehicle option) 2005-2012: Police PDB or Police I/P accessory battery feed (Police vehicles only) |
| 118 | 20 | 2003-2004: ABS |
| 50 | 2005-2012: Rear power point or Police Trunk (right-hand kick panel) accessory battery feed (Police vehicles only) | |
| 401 | — | — |
| 601 | 50 | 2003-2004: Crown North America (Police vehicle option) |
| 20 | 2005-2012: Power seats, Lumbar, Decklid (Police vehicles only) | |
| 602 | 20 | 2003-2004: Adjustable pedals, Power seat, Locks, Decklid, Lumbar, Decklid release (Police vehicle option) 2005-2009: RUN/ACC relay (windows) (non-police vehicles only) RUN/ACC relay feed (windows and decklid) (police vehicles only) 2010-2012: RUN/ACC relay feed – Windows, Decklid (Police vehicles only) |
| Diode | ||
| 501 | 2003-2004: PCM 2005-2008: A/C clutch |
|
| 502 | 2004: A/C clutch 2005-2012: PCM |
|
| 503 | 2003-2004: Not used 2005-2007: Horn, Door latch 2008-2012: Not used |
|
| Relay | ||
| 201 | 2003-2004: Horn relay 2005-2012: A/C clutch relay |
|
| 202 | 2003-2004: PCM relay 2005-2012: Not used |
|
| 203 | 2003-2004: Fuel pump relay 2005-2012: Ignition coil relay |
|
| 204 | 2003-2004: A/C clutch relay 2005-2012: PCM relay |
|
| 205 | 2003-2004: Traction control switch relay 2005-2012: Not used |
|
| 206 | 2003-2004: Police vehicle relay 2005-2012: Fuel pump relay |
|
| 207 | 2005-2012: Not used | |
| 208 | 2003-2004: Moonroof relay Police stop lamp relay (police vehicles only) 2005-2012: Not used |
|
| 209 | 2003-2004: Not used 2005-2012: Horn relay |
|
| 301 | 2003-2004: Blower motor relay 2005-2012: Starter solenoid relay |
|
| 302 | 2003-2004: Starter solenoid relay 2005-2012: Air compressor relay (non-Police vehicles only) RUN/ACC relay (Police vehicles only) |
|
| 303 | 2003-2004: Air suspension relay 2005-2012: Blower motor relay |
|
| 304 | 2003-2004: Heated backlight relay 2005-2006: RUN/ACC relay (windows) (non-police vehicles only) RUN/ACC relay (windows and decklid) (police vehicles only) 2007-2012: Rear defrost relay |
|
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
