Ford Edge (from 2015) – fuse box diagram (USA version)
Year of production: 2015, 2016

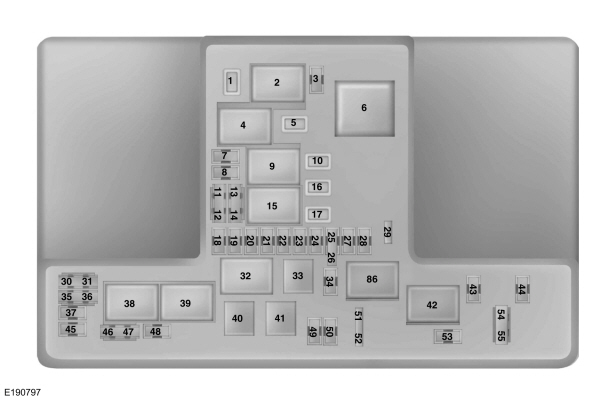

Power distribution box
| Fuse or relay | Ampere rating [A] | Protected components |
| 1 | 30A3 | Not used (spare) |
| 2 | — | Starter relay |
| 3 | 15A1 | Rear wiper, rain sensor, rear washer pump relay coil |
| 4 | — | Blower motor relay |
| 5 | 20A3 | Power point 3 – back of console |
| 6 | — | Not used |
| 7 | 20A1 | Powertrain control module – vehicle power 1 |
| 8 | 20A1 | Powertrain control module – vehicle power 2 |
| 9 | — | Powertrain control module relay |
| 10 | 20A3 | Power point 1 – driver front |
| 11 | 15A2 | Powertrain control module – vehicle power 4 |
| 12 | 15A2 | Powertrain control module – vehicle power 3 |
| 13 | — | Not used |
| 14 | — | Not used |
| 15 | — | Run-start relay |
| 16 | 20A3 | Power point 2 – console bin |
| 17 | 20A3 | Power point 4 – luggage compartment |
| 18 | 20A1 | RH HID headlamp |
| 19 | 10A1 | Run-start electronic power assist steering |
| 20 | 10A1 | Run/start lighting |
| 21 | 15A1 | Transmission oil pump logic power (start/stop) |
| 22 | 10A1 | Air conditioner clutch solenoid |
| 23 | 15A1 | Run-start 6, blind spot information system, rear view camera, adaptive cruise control, heads-up display, voltage quality module (start/stop), front split view camera, front split view camera module |
| 24 | 10A1 | Not used (spare) |
| 25 | 10A2 | Run-start anti-lock brake system |
| 26 | 10A2 | Run-start powertrain control module |
| 27 | — | Not used |
| 28 | 10A1 | Rear washer pump |
| 29 | — | Not used |
| 30 | — | Not used |
| 31 | — | Not used |
| 32 | — | Electronic fan 1 relay |
| 33 | — | A/C clutch relay |
| 34 | 15A1 | Not used (spare) |
| 35 | — | Not used |
| 36 | — | Not used |
| 37 | 10A1 | Power transfer unit fan |
| 38 | — | Electronic fan 2 relay |
| 39 | — | Electric fan 3 relay |
| 40 | — | Horn relay |
| 41 | — | Not used |
| 42 | — | Fuel pump relay |
| 43 | 10A1 | 2nd row easy fold seat release |
| 44 | 20A1 | LH HID headlamp |
| 45 | — | Not used |
| 46 | — | Not used |
| 47 | — | Not used |
| 48 | — | Not used |
| 49 | — | Not used |
| 50 | 20A1 | Horn |
| 51 | — | Not used |
| 52 | — | Not used |
| 53 | — | Not used |
| 54 | 10A2 | Brake on off switch |
| 55 | 10A2 | ALT sensor |
|
1Micro fuse.
2Dual micro fuse.
3M-type fuse.
|
||

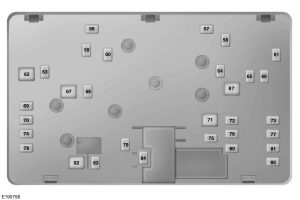

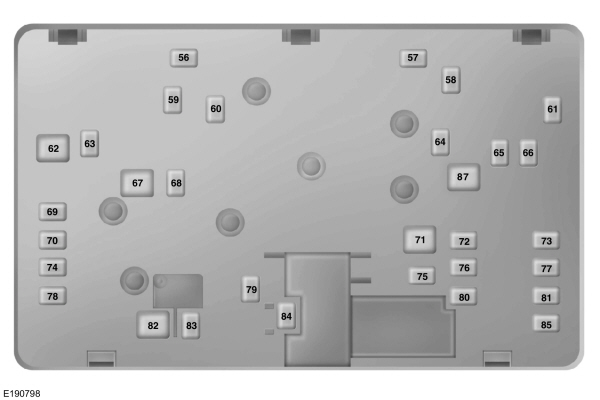

Power Distribution Box – Bottom
| Fuse or relay | Ampere rating [A] | Protected components |
| 56 | — | Not used |
| 57 | — | Not used |
| 58 | 30A1 | Fuel pump feed. Port fuel injectors (3.5L) |
| 59 | 40A2 | Electronic fan 3 |
| 60 | 40A2 | Electronic fan 1 |
| 61 | — | Not used |
| 62 | 50A2 | Body control module 1 |
| 63 | 25A1 | Electronic fan 2 |
| 64 | — | Not used |
| 65 | 20A1 | Front heated seat |
| 66 | — | Not used |
| 67 | 50A2 | Body control module 2 |
| 68 | 40A1 | Heated rear window |
| 69 | 30A1 | Anti-lock brake system valves |
| 70 | 30A1 | Passenger seat |
| 71 | — | Not used |
| 72 | 20A1 | Transmission oil pump (start/stop) |
| 73 | 20A1 | Rear heated seats |
| 74 | 30A1 | Driver seat module, power driver seat (less memory) |
| 75 | 25A1 | Wiper motor 1 |
| 76 | 30A1 | Power lift-gate module |
| 77 | 30A1 | Climate control seat module |
| 78 | 40A1 | Trailer lighting module |
| 79 | 40A2 | Blower motor |
| 80 | 25A1 | Wiper motor 2 |
| 81 | 40A1 | 110 volt inverter |
| 82 | — | Not used |
| 83 | 20A1 | Not used (spare) |
| 84 | 30A1 | Starter solenoid |
| 85 | — | Not used |
| 86 | — | Not used |
| 87 | 60A2 | Anti-lock brake system pump |
|
1 M-type fuse.
2J-type fuse.
|
||

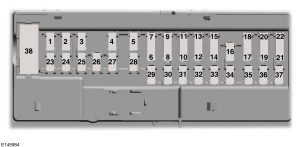

Passenger Compartment Fuse Panel
| Fuse or relay | ampere rating [A] | Protected components |
| 1 | 10A1 | Demand lighting (glove box, vanity, dome), battery saver relay coil, second row easy fold relay coil |
| 2 | 7.5A1 | Memory seats, lumbar, driver seat module logic power |
| 3 | 20A1 | Driver door unlock |
| 4 | 5A1 | Not used (spare) |
| 5 | 20A1 | Not used (spare) |
| 6 | 10A2 | Not used (spare) |
| 7 | 10A2 | Not used (spare) |
| 8 | 10A2 | Not used (spare) |
| 9 | 10A2 | Not used (spare) |
| 10 | 5A2 | Keypad, power liftgate module logic power, hands free liftgate module |
| 11 | 5A2 | Not used (spare) |
| 12 | 7.5A2 | Climate control module |
| 13 | 7.5A2 | Cluster, steering column control module, smart datalink connector (gateway) module |
| 14 | 10A2 | Not used (spare) |
| 15 | 10A2 | Datalink power |
| 16 | 15A1 | Not used (spare) |
| 17 | 5A2 | Not used (spare) |
| 18 | 5A2 | Push button start switch |
| 19 | 7.5A2 | Not used (spare) |
| 20 | 7.5A2 | Not used (spare) |
| 21 | 5A2 | Humidity and in–car temperature sensor |
| 22 | 5A2 | Occupant classification sensor |
| 23 | 10A1 | Delayed accessory (power inverter logic, moonroof logic, driver window switch power) |
| 24 | 10A1 | Central lock unlock |
| 25 | 30A1 | Driver door (window, mirror), driver door module, driver door lock indicator, driver lock switch illumination |
| 26 | 30A1 | Front passenger door (window, mirror), front passenger door module, front passenger lock indicator, front passenger switch illumination (window, lock) |
| 27 | 30A1 | Moonroof |
| 28 | 20A1 | Amplifier |
| 29 | 30A1 | Not used (spare) |
| 30 | 30A1 | Not used (spare) |
| 31 | 15A1 | Not used (spare) |
| 32 | 10A1 | Global positioning system, centerstack display, voice control (SYNC), radio transceiver module |
| 33 | 20A1 | Radio |
| 34 | 30A1 | Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, circuit breaker 38) |
| 35 | 5A1 | Restraints control module |
| 36 | 15A1 | Auto-dimming rear view mirror, heated seat, auto high beam/lane departure mirror module, rear heated seat module logic power |
| 37 | 15A1 | Heated steering wheel module |
| 38 | 30A3 | Rear power windows, rear window switch illumination |
|
1Micro fuse.
2Dual micro fuse.
3Circuit breaker.
|
||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
