Ford Escape (2001 – 2007) – fuse box diagram

Ford Escape (2001 – 2007) – fuse box diagram

Year of production: 2001, 2002, 2003, 2004, 2005, 2006, 2007

Passenger compartment fuse panel (2001-2004)

The fuse panel is located on the left hand side kick panel.

Ford Escape – fuse box diagram – passenger compartment
Ford Escape – fuse box diagram – passenger compartment
No. A Protected components
1 5 Canister vent control solenoid
2 5 Blower relay (coil), Pressure switch to PCM, Blower Relay (coil), Rear Defrost Relay (coil; up to 2002)
3 10 Rear wiper motor, Rear washer motor, Rear wiper relay (coil)
4 10 Four-wheel drive control module, Cluster (restraints control warning)
5 5 ABS unit (EVAC & FILL), ASC unit, Restraints Control Module (RCM), ASC main SW to ASC unit, Clock spring switch (as of 2003)
6 10 Flasher unit, Reversing lamps, Park Aid Module (PAM; as of 2003)
7 10 Passive Anti-theft Transceiver (PATS), Restraints Control Module, EEC fuse (as of 2003)
8 10 Cluster, Shift lock relay (coil), O/D signal to PCM, GEM (as of 2003), E/C autolamp mirror (as of 2003)
9 3 PCM relay (coil), Fan relay 1, 2, 3 (coil), A/C relay (coil)
10 20 Front wiper motor, Front washer motor
11 10 ACC relay (coil), Key interlock solenoid, GEM, IGN Relay (coil; up to 2002), Starter Relay (coil; up to 2002)
12 5 Radio, Clock (up to 2002)
13
14 20 Cigar lighter
15 15 Park lamp relay, Front position lamps, License lamps, Tail lamps, Park lamp relay (coil), Trailer fuse, Illumination fuse
16 10 Cluster, Power mirror, GEM, Heated seats (as of 2003)
17 15 Sun roof motor
18 5 Illumination for: Cluster, Heater unit, Radio, Hazard switch, Rear defrost switch, 4WD switch, Front fog switch
19 10 Subwoofer amp
20 15 Turn Indicators, Front Side Turn Lamps, Front turn lamps, Rear turn lamps, Trailer turn, Flasher unit
21 10 Trailer position lamps
22 15
23 20 as of 2002: Horn relay
15 up to 2001: Horn
24 15 Stoplamps, High mounted stoplamp, Trailer stoplamp, ABS unit, ASC unit (Brake Pedal Position Switch), PCM, Shift solenoid
25 30 Power window motors
26 30 Power door lock motors, GEM (door lock relay coil), Power seat, 4WD relay (as of 2003)
27 10 GEM, Audio, Cluster, Interior lamp, Map lamp, Cargo lamp, Datalink connector (as of 2003)
Relay
ACC Accessory relay

Passenger compartment fuse panel (2005-2007)

The fuse panel is located on the right-hand side of the center console, by the instrument panel.

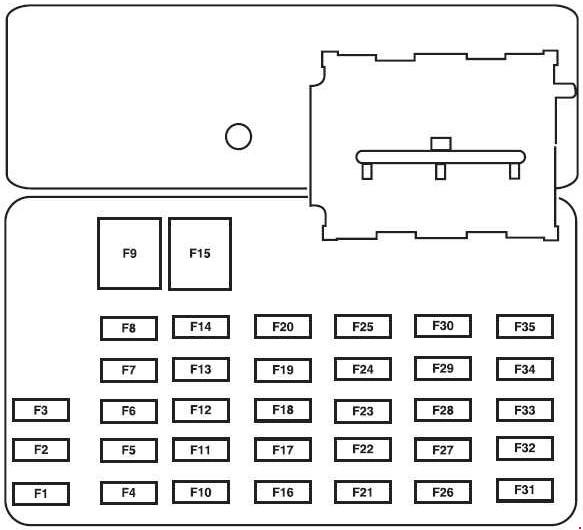

Ford Escape – fuse box diagram – passenger compartment
Ford Escape – fuse box diagram – passenger compartment
No A Protected components
1 15 Trailer tow park lamps
2
3 15 Front and rear park lamps
4 10 Ignition switch
5 2 Powertrain Control Module (PCM relay), Fuel pump relay, Main fan relay, High/Low speed fan relay 2, PATS module
6 15 Center High-Mounted Stop Lamp (CHMSL), Stop lamps, PCM, Anti-lock Brake System (ABS), Speed control, Brake On-Off switch
7 10 Instrument cluster, Diagnostic connector, Power mirror switch, Radio
8 5 as of 2007: Canister vent
9 30 Power door locks, Power seats
10 15 Heated mirrors
11 15 Sunroof, Electrochromatic mirror
12 5 Radio
13
14
15 30 Power windows
16 15 Subwoofer
17 15 Low beams
18 10 4WD
19
20 15 Horn
21 10 up to 2006: Rear wiper motor, Rear wiper washer
15 as of 2007: Rear wiper motor, Rear wiper washer
22 10 Instrument cluster
23
24 20 Cigar lighter
25 20 Front wiper motor, Front wiper washer
26 5 Climate control system mode switch
27 5 Canister vent (up to 2006), Speed control cancel switch
28 10 Instrument cluster
29 10 Reverse park aid
30
31
32 10 Brake-Transmission shift lock
33 15 Air bag module, Passenger Air bag Deactivation (PAD) indicator lamp, Occupant Classification Sensor (OCS)
34 5 ABS module, Evac and Fill, Speed control
35 5 Heated seats module, 4WD

Engine Compartment Fuse Box (2001-2004)

Ford Escape – fuse box diagram – engine compartment
Ford Escape – fuse box diagram – engine compartment
Fuse A Protected components
Horn 15 Horn
H/L LH 15 Headlamp (high/low left, High beams)
H/L RH 15 Headlamp (high/low right, High beams)
EEC 5 EEC (KPWR)
HE GO 15 HEGO 1,2, CMS 1,2, VMV
FUEL 20 Fuel pump, EEC (FPM)
HTD SEATS 30 Heated seats (if equipped)
INJ 30 EEC (VPWR), EVR, MAF, I AC, Bulkhead, HEGO fuse (as of 2003)
MAIN 120 Main
ALT 15 Alternator/ Regulator
DRL 15 Daytime Running Lamps (DRL) unit (feed), DRL relay
DRL2 15 DRL module
HLEV 10 DHLEV
PWR 1 15 Auxiliary power point
FOG 20 Foglamps, Foglamp indicator
A/C 15 A/C clutch
ABS 25 Auxiliary power point
IG MAIN 40 Starter
HTR 40 Blower motor, Blower motor relay
BTN 1 40 JB – Accessory relay, Radio, TNS relay, Cigar lighter, Cluster, Power mirror, GEM, Accessory delay relay (as of 2003), Power windows (as of 2003), Power moonroof (as of 2003), Clock (up to 2002)
(ABS) 60 ABS motor, EVAC & FILL (as of 2003)
BTN 2 40 JB – Radio, CD changer, Cluster, Dome lamps, Map lamps, Cargo lamps, Horn relay (as of 2003), GEM, Power locks (as of 2003), Speed control (as of 2003)
MAIN FAN 40(2.0L) Main fan
50(3.0L
RDEF 30 Rear defroster
ADD FAN 40(2.0L) Add fan
50(3.0L)
Relay
EEC MAIN ISO EEC relay
FUEL PUMP ISO Fuel pump relay
MAIN FAN ISO Low-speed fan control relay (2.0L engine)
High-speed fan control relay I (3.0L engine)
ADD FAN ISO High-speed fan control relay 1 (2.0L engine)
Low-speed fan control relay (3.0L engine)
DEF RELAY ISO Rear defroster relay
ST RELAY ISO Starter relay
ADD FAN 2 ISO High-speed fan control relay 2 (3.0L engine)
Medium-speed fan control relay (2.0L engine)
FOG RELAY MICRO Foglamp relay
A/C RELAY MICRO A/C clutch relay
H/L RELAY MICRO Headlamp (high/low, right/left relay)
Diode
DIODE
DIODE

Engine Compartment Fuse Box (2005-2007)

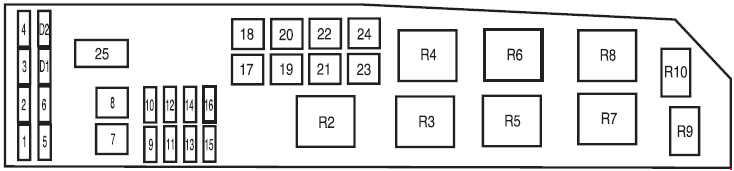

Ford Escape – fuse box diagram – engine compartment
Ford Escape – fuse box diagram – engine compartment
No. A Protected components
1
2 25 Headlamp power
3 25 High beams, Turn signals, Interior lamps, Headlamp power
4 5 Keep Alive Power (KA PWR)
5 15 Heated Exhaust Gas Oxygen (HEGO) sensors
6 20 Fuel pump
7 40 RUN/ACC relay -Electrochromatic mirror, Cigar lighter, Front and rear wipers
8 30 Powertrain Control Module (PCM), Injectors and coil
9 15 Alternator
10 30 Heated seats
11 10 PCM
12 20 Power point
13 20 Fog lamps
14 15 A/C clutch, A/C relay
15 30 Anti-lock Brake System (ABS) solenoid
16 25 I/P fuse panel (RUN/START)
17 50 Ignition (main)
18 40 Blower motor
19 40 Accessory delay relay – Subwoofer and 4WD, Low beam
20 60 ABS
21 40 Horn, CHMSL, Cluster, Power locks and power seats
22 40 (I4) Cooling fan
50 (V6)
23 40 Rear defroster, Park lamps relay
24 40 (I4) High/Low speed fan
50 (V6)
25 Shunt
Relay
R2 PCM relay
R3 Fuel pump relay
R4 Cooling fan relay
R5 High/Low speed fan relay 1
R6 Blower motor relay
R7 Starter relay
R8 High/Low speed fan relay 2
R9 Fog lamps relay
R10 A/C relay
Diode
D1
D2 A/C diode



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
