Ford Escape (2013 – present) – fuse box diagram
Year of production: 2013, 2014, 2015, 2016, 2017, 2018

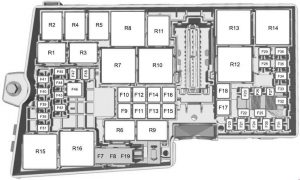

Engine Compartment Fuse Box
| Fuse or relay | Ampere rating [A] | Protected components |
| F7 | 40 | up to 2014: Anti-lock brake system and electronic stability program pump |
| 50 | as of 2015: Anti-lock brake system and electronic stability program pump | |
| F8 | 30 | Electronic stability program valve |
| F9 | 40 | as of 2017: Cooling fan (600W) |
| 50 | as of 2017: Cooling fan (390W and750W) | |
| F10 | 40 | Heater blower motor |
| F11 | 30 | Body control module power feed (as of 2014), Voltage quality module (as of 2017) |
| F12 | 30 | Powertrain control module relay |
| F13 | 30 | Starter relay |
| F14 | 25 | up to 2016: Rear power window (without door control unit) as of 2017: Cooling fan (600W and 750W) |
| F15 | 20 | Front cigar lighter or power outlet |
| F16 | 25 | up to 2016: Front power window (without door control unit) |
| F17 | 40 | as of 2017: Cooling fan (600W) |
| 50 | as of 2017: Cooling fan (750W) | |
| 20 | up to 2016: Rear power outlet | |
| F18 | 20 | Center power outlet |
| F19 | 5 | Anti-lock brake system and electronic stability program 15 feed |
| F20 | 15 | Horn |
| F21 | 5 | Stop light switch |
| F22 | 15 | Battery monitor system |
| F23 | 5 | Relay coils |
| F24 | 5 | Light switch module |
| F25 | 10 | as of 2017: Occupant classification system up to 2016: Power exterior mirror (without door control unit) |
| F26 | 25 | as of 2017: Oil pump |
| 5 | up to 2016: Keep-alive power | |
| F27 | 15 | Air conditioner clutch |
| F28 | 10 | Vehicle power – fuel Injector (2.5L engine), Blind spot Information system and rear view camera (stop/start equipped vehicles; as of 2017) |
| F29 | 25 | up to 2016: Rear window defroster |
| F30 | 10 | as of 2017: Partially heated windshield |
| 15 | 2016: Heated mirror (less door control unit), Heated wiper park | |
| F31 | 5 | as of 2017: Powertrain control relay coll 2013: Power transfer unit oil cooling fan (Middle East specification) |
| F32 | 15 | Vehicle power (2.0L and 2.5L engine) |
| 10 | Vehicle power (1.5L engine) | |
| F33 | 10 | Vehicle power 2 (2.0L and 2.5L engine) |
| 15 | Vehicle power 2 (1.5L engine) | |
| F34 | 10 | Vehicle power 3 |
| F35 | 15 | Vehicle power 4 (2.0L and 2.5L engine) |
| 10 | Vehicle power 4 (1.5L engine) | |
| F36 | 5 | Active grill shutters |
| F37 | 10 | Passenger airbag deactivation Indicator, Occupant classification sensor (up to 2016) |
| F38 | 5 | Engine control module and transmission control module ignition feed |
| F39 | 20 | as of 2016: Heated driver seat |
| 5 | up to 2015: Daytime running lamps and headlamp control module ignition feed | |
| F40 | 5 | Electronic power assist steering 15 feed |
| F41 | 20 | Body control module 15 feed |
| F42 | 15 | Rear wiper |
| F43 | 15 | Headlamp control module supply |
| F44 | 5 | as of 2017: Forward looking radar |
| 15 | up to 2016: Front fog daytime running lamps | |
| F45 | 20 | as of 2016: Heated passenger seat |
| F46 | 40 | Smart wiper motor modules |
| F47 | 5 | 2016: Heated mirror (less door control unit), Heated wiper park relay feed |
| F48 | 5 | Keypad |
| Relay | ||
| R1 | as of 2017: Cooling fan (750W) | |
| R2 | Horn | |
| R3 | 2013: Power transfer unit oil cooling fan (Middle East specification) 2016: Heated mirror relay (less door control unit), Heated wiper park relay. |
|
| R4 | up to 2016: Front fog daytime running lamps | |
| R5 | as of 2017: Cooling fan (750W) | |
| R6 | as of 2017: Cooling fan (600W and 750W) | |
| R7 | as of 2017: Partially heated windshield | |
| R8 | up to 2016: Delayed accessory relay | |
| R9 | — | |
| R10 | Starter relay | |
| R11 | Air conditioner clutch | |
| R12 | Cooling fan | |
| R13 | Heater blower | |
| R14 | Engine control relay | |
| R15 | as of 2017: Cooling fan (600W and 750W) up to 2016: Heated rear window |
|
| R16 | Ignition 15 | |
Passenger Compartment Fuse Panel
The fuse panel is on the right side below the glove box.
| Fuse or relay | Ampere rating [A] | Protected components |
| F56 | 20 | Fuel pump supply Air mass meter (up to 2016) |
| F57 | — | Not used |
| F58 | 5 | as of 2017: Interior lights relay |
| F59 | 5 | Passive anti-theft transceiver |
| F60 | 10 | Interior light Driver door switch pack Glove box light Overhead console switch bank |
| F61 | 20 | Cigar lighter Power point |
| F62 | 5 | Rain sensor module Light sensor module (as of 2017) Auto-dimming mirror (up to 2016) |
| F63 | 10 | as of 2017: Front sensing module Forward looking radar |
| F64 | — | Not used |
| F65 | 10 | Liftgate release |
| F66 | 20 | Driver door unlock |
| F67 | 7,5 | SYNC Multifunction display Global positioning system module |
| F68 | 15 | as of 2017: Electronic steering column lock |
| F69 | 5 | Instrument cluster |
| F70 | 20 | Central lock and unlock supply |
| F71 | 7,5 | Heating control head (manual air conditioner) Dual electronic automatic temperature control |
| F72 | 7,5 | as of 2017: Data link connector up to 2016: Steering wheel module |
| F73 | 7,5 | as of 2017: Steering wheel module up to 2016: Data link connector |
| F74 | 15 | Headlamp supply |
| F75 | 15 | Fog lamp |
| F76 | 10 | Reversing lamp |
| F77 | 20 | Washer pump |
| F78 | 5 | Ignition switch Start button Keyless vehicle module (as of 2017) |
| F79 | 15 | Radio Electronic finish panel (as of 2017) Hazard light switch Door lock switch Navigation DVD player Touch screen (up to 2016) Hazard light switch (up to 2016) |
| F80 | 20 | Moonroof supply |
| F81 | 5 | Interior motion sensor supply (as of 2017) Radio frequency receiver supply Panorama roof power/open (as of 2017) |
| F82 | 20 | Washer pump |
| F83 | 20 | Central locking |
| F84 | 20 | Lock/unlock relay Llftgate relay |
| F85 | 7,5 | Electronic 15 feed |
| F86 | 10 | Air bag module Occupant classification system Passenger air bag deactivation Indicator |
| F87 | 15 | Heated steering wheel |
| F88 | 25 | as of 2017: KL30 feed 2014-2016: Supply for F67, F69, F71 and F79 |
| F89 | — | Not used |

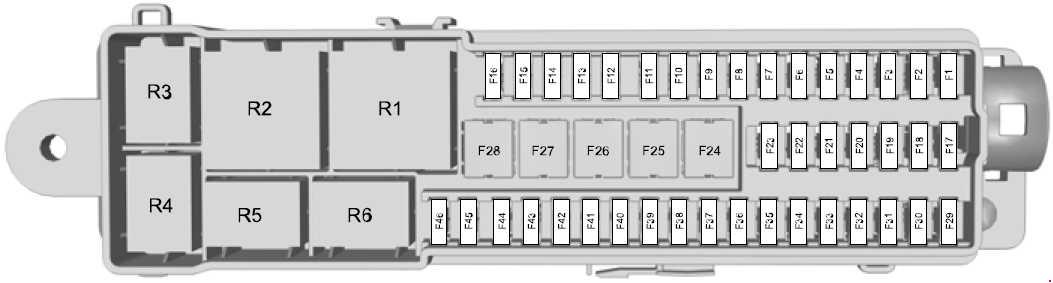

Luggage compartment fuse panel
The fuse panel is in the luggage compartment behind the passenger side wheel well.
| Fuse or relay | A | Protected components |
| F1 | 5 | Hands-free liftgate entry module |
| F2 | 15 | as of 2017: Heated outside mirror (without door control unit) Heated wiper park |
| 10 | up to 2016: Keyless vehicle module | |
| F3 | 5 | Keyless vehicle door handles |
| F4 | 25 | Door control unit front left |
| F5 | 25 | Door control unit front right |
| F6 | 25 | Door control unit rear left |
| F7 | 25 | Door control unit rear right |
| F8 | 25 | as of 2015: Passenger seat |
| F9 | 25 | Driver seat |
| F10 | 5 | Driver seat memory module logic feed |
| F11 | 5 | Rear ignition coil feed |
| F12 | — | Not used |
| F13 | — | Not used |
| F14 | 25 | as of 2017: High current power windows (driver) |
| F15 | 25 | as of 2017: High current power windows (driver and passenger) |
| F16 | — | Not used |
| F17 | — | Not used |
| F18 | — | Not used |
| F19 | — | Not used |
| F20 | 5 | as of 2017: Embedded modem |
| F21 | — | Not used |
| F22 | 25 | as of 2017: Heated rear window |
| F23 | 25 | Audio amplifier |
| F24 | 30 | DC/AC power converter |
| F25 | 25 | Power liftgate |
| F26 | 20 | as of 2017: Rear power outlet |
| 40 | up to 2016: Accessories / Trailer tow module 30 feed 1 | |
| F27 | 20 | as of 2015: Luggage compartment power outlet |
| F28 | 40 | as of 2017: Trailer tow |
| F29 | 5 | Blind spot detection system Rear view camera with park assist |
| F30 | 5 | Parking aid module |
| F31 | — | Not used |
| F32 | 5 | DC/AC power converter |
| F33 | 10 | as of 2017: High current power window switch |
| F34 | — | Not used |
| F35 | — | Not used |
| F36 | — | Not used |
| F37 | 5 | 2013: Moonroof |
| F38 | — | Not used |
| F39 | — | Not used |
| F40 | — | Not used |
| F41 | — | Not used |
| F42 | — | Not used |
| F43 | — | Not used |
| F44 | — | Not used |
| F45 | — | Not used |
| F46 | 5 | as of 2017: Heated outside mirror relay coll |
| Relay |
||
| R1 | as of 2017: Delay accessory relay up to 2016: Rear 15 relay |
|
| R2 | as of 2017: Rear 15 relay | |
| R3 | as of 2017: Heated rear window relay | |
| R4 | — | |
| R5 | — | |
| R6 | as of 2017: Heated outside mirror relay | |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
