Ford Expedition (2015 – 2017) – fuse box diagram
Year of production: 2015, 2016, 2017

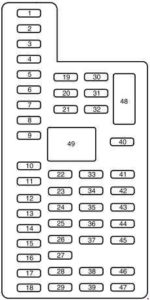

Passenger compartment fuse panel
The fuse panel is located under the right-hand side of the instrument panel.
| № | A | Description |
| 1 | 30 | Driver window |
| 2 | 15 | Rear seat control. Multimedia gateway module |
| 3 | 30 | Passenger window |
| 4 | 10 | Demand lamps |
| 5 | 20 | Amplifier |
| 6 | 5 | Rear electronic automatic temperature control |
| 7 | 7.5 | Power mirror, Driver seat memory switch |
| 8 | – | Not used |
| 9 | 10 | SYNC, Power lift gate, Electric finish panel, Display |
| 10 | 10 | Run accessory relay |
| 11 | 10 | Passive entry/start module |
| 12 | 15 | Interior lighting, Puddle lamps |
| 13 | 15 | Right turn and stop/turn signals |
| 14 | 15 | Left turn and stop/turn signals |
| 15 | 15 | Reverse lamp, Center high mount stop lamp, EC mirror |
| 16 | 10 | Right front low beam |
| 17 | 10 | Left front low beam |
| 18 | 10 | Brake shift interlock/start button LED/ keypad illumination, Third row power folding seat, Passive entry touch start |
| 19 | – | Not used |
| 20 | 20 | Lock/unlock relays |
| 21 | – | Not used |
| 22 | 20 | Horn |
| 23 | 15 | Steering wheel control module, Cluster |
| 24 | 15 | Adjustable pedals/power adjustable column, Datalink |
| 25 | 15 | Liftgate release decklid, Liftglass release motor |
| 26 | 5 | Push to start switch |
| 27 | 20 | Passive entry/start module |
| 28 | 15 | Ignition switch, Key inhibit switch |
| 29 | 20 | Radio, GPS |
| 30 | 15 | Front park lamps |
| 31 | 5 | Trailer brake on/off |
| 32 | 15 | Power vent, Driver’s window motor, Power inverter. |
| 33 | 10 | CCD suspension module |
| 34 | 10 | Rear park assist, Rear camera, BUS, Heated seat |
| 35 | 5 | Climate module, O/D switch |
| 36 | – | Not used |
| 37 | 10 | 4X4 module |
| 38 | 10 | EC mirror, Moonroof, DVD, AM/FM radio |
| 39 | 15 | Left and right front high beams |
| 40 | 10 | Rear park/tail lamps |
| 41 | 7.5 | Restraints control module |
| 42 | – | Not used |
| 43 | – | Not used |
| 44 | – | Not used |
| 45 | 5 | ot used (spare) |
| 46 | 10 | Climate control |
| 47 | 15 | Fog lamps |
| 48 | 30 | Front passenger and rear windows circuit breaker |
| 49 | Windows and vents relay |
Power distribution box
The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.
| № | A | Description |
| 1 | – | Rear washer relay |
| 2 | – | Starter relay |
| 3 | – | Blower motor relay |
| 4 | – | Rear wiper relay |
| 5 | – | Fuel pump relay |
| 6 | – | Electronic cooling fan |
| 7 | – | Rear window defroster/heated mirror relay |
| 8 | – | Electronic cooling fan |
| 9 | – | Run/start relay |
| 10 | – | Power distribution box relay. |
| 11 | 40 | Power running boards Heated seats |
| 12 | 40 | Run/start, relay |
| 13 | 30 | Starter relay |
| 14 | 50 | Electronic cooling fan |
| 15 | – | Not used |
| 16 | 50 | Electronic fan |
| 17 | – | Not used |
| 18 | 30 | Trailer brake |
| 19 | 20 | Power point (console) |
| 20 | 20 | 4×4 module HAT 2 |
| 21 | 30 | Trailer tow module |
| 22 | 30 | Passenger power seat |
| 23 | – | Air conditioner clutch relay |
| 24 | – | Trailer tow park lamp relay |
| 25 | – | Not used |
| 26 | 10 | ALT sensor |
| 27 | 20 | 4×4 module HAT 1 |
| 28 | 25 | Trailer tow park lamp relay |
| 29 | 10 | Integrated wheel end solenoid |
| 30 | 10 | Air conditioner clutch relay |
| 31 | 15 | Trailer tow back up lamp |
| 32 | 40 | Blower motor relay |
| 33 | 40 | 110 volt AC power point |
| 34 | 30 | Auxiliary blower motor |
| 35 | 30 | Powertrain control module relay |
| 36 | 30 | Power liftgate |
| 37 | – | Not used |
| 38 | – | Not used |
| 39 | – | Trailer tow backup lamps relay |
| 40 | – | Electronic fan 2 relay |
| 41 | 10 | Powertrain control module keep-alive power |
| 42 | 5 | Run/start relay |
| 43 | 10 | Brake on/off switch |
| 44 | 20 | Fuel pump relay |
| 45 | 10 | Not used (spare) |
| 46 | 15 | Front/rear washer pump |
| 47 | 30 | Rear wiper motor |
| 48 | 40 | Trailer tow module |
| 49 | – | Not used |
| 50 | 30 | Front wiper motor relay |
| 51 | 40 | Rear window defroster/heated mirror relay |
| 52 | 10 | Anti-lock brake system run/start feed |
| 53 | 5 | Powertrain control module ISP |
| 54 | 5 | Power steering |
| 55 | – | Not used |
| 56 | 30 | Passenger compartment fuse panel R/S feed |
| 57 | 5 | Blower motor run/start |
| 58 | – | Not used |
| 59 | 15 | Heated mirrors |
| 60 | – | Not used |
| 61 | – | Not used |
| 62 | – | Not used |
| 63 | 25 | Electronic fan |
| 64 | 30 | Moonroof |
| 65 | 20 | Not used (spare) |
| 66 | 20 | Auxiliary power point (rear of center console) |
| 67 | 40 | Front row climate controlled seats |
| 68 | 30 | Anti-lock brake system valves |
| 69 | 60 | Anti-lock brake system pump |
| 70 | 30 | Third row power fold seat |
| 71 | 20 | Auxiliary power point/cigar lighter |
| 72 | 20 | Auxiliary power point (right rear quarter panel) |
| 73 | 20 | Rear seat climate module |
| 74 | 30 | Driver power seat |
| 75 | 25 | Vehicle power 1 – powertrain control module |
| 76 | 20 | Vehicle power 2 – powertrain control module |
| 77 | 20 | Vehicle power 4 – ignition coils |
| 78 | – | Not used |
| 79 | 15 | Vehicle power 3 – powertrain control module |
| 80 | – | Not used |
| 81 | – | Not used |
| 82 | 5 | Rain sensor |
| 83 | – | Not used |
| 84 | – | Not used |
| 85 | – | Wiper motor relay |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
