Ford Explorer U152 (2000 – 2006) – fuse box diagram
Year of production: 2000, 2001, 2002, 2003, 2004, 2005, 2006

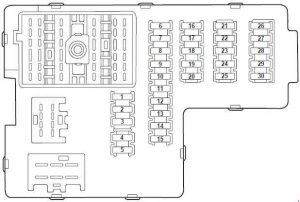

Passenger Compartment Fuse Panel
| Number | Ampers | Protected circuit |
| 1 | 30 | Memory seat module, Driver power seat (2003-2005), Driver power lumbar (2005) |
| 2 | 20 | Heated seats (2001-2002), Moonroof |
| 3 | 20 | Radio, Amplifier, Power antenna (2001-2002), DVD |
| 4 | 5 | Front wiper module |
| 5 | 15 | Flasher relay (Turn, hazards) |
| 6 | 10 | Right horn (2001-2002), Key-in-chime (2003-2005) |
| 7 | 15 | Heated mirrors |
| 8 | 5 | Heated PCV (2004-2005; 4.0L engine only) |
| 9 | — | — |
| 10 | 10 | Heated backlight relay coil, Heated seat module (2001-2002), Temp blend actuator (2001-2002), A/C clutch contact |
| 11 | 20 | Heated seats (2003-2005) |
| 12 | 5 | Foglamp switch (2001-2002), 4×4 module |
| 13 | 5 | Overdrive cancel switch, Flex fuel sender (2001-2003) |
| 14 | 5 | PATS module |
| 15 | 5 | Rear wiper module, Cluster, TPMS (2001-2003) |
| 16 | 5 | Power mirror, Manual climate control, TPMS |
| 17 | 15 | Delayed acc. coil, Battery saver, Interior lamps (front and rear), Glove compartment lamp |
| 18 | 10 | Left horn (2001-2003), Flexible fuel pump (2004-2005) |
| 19 | 10 | RCM, PAD indicator (2001-2002) |
| 20 | 5 | Memory driver seat switch, Driver seat module, Body Security Module (BSM), PATS LED, Sunload sensor (2001-2003) |
| 21 | 5 | Instrument cluster, Compass, Flasher coil |
| 22 | 10 | ABS, IVD Controller |
| 23 | 15 | 2001-2003:Brake pedal position switch, Driver brake applied relay, Redundant cruise deactivate switch |
| 24 | 15 | Cigar lighter, OBD II, Neutral tow |
| 25 | 5 | Mode-Temperature actuator for auxiliary climate control, Trailer tow battery charge coil, TPMS (2004-2005) |
| 26 | 7,5 | Reverse park aid, Brake shift interlock, Approach lamp relay coil (2001-2002), IVD switch |
| 27 | 7,5 | Automatic dimming mirror, Digital transmission range sensor, Backup lamps |
| 28 | 5 | Radio (Start)/DVD (Start) |
| 29 | 10 | Digital transmission range sensor, PWR feed to fuse #28 (Start feed) |
| 30 | 5 | Daytime Running Lamps (DRL), Remote solenoid, DEATC climate controller, Manual climate control, Manual climate control temp blend actuator |

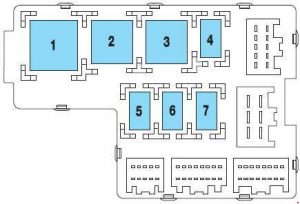

| Number | Protected circuit |
| 1 | Flasher relay |
| 2 | Rear defrost |
| 3 | Delayed accessory relay |
| 4 | Open |
| 5 | Battery saver |
| 6 | Open |
| 7 | Open |
Power Distribution Box
| Number | Ampers | Protected circuit |
| 1 | 60 | PJB |
| 2 | 30 | BSM |
| 3 | 20 | GCC pusher fan (2001-2002; export only) |
| 4 | 30 | Rear defrost |
| 5 | 40 | Anti-lock Brake System (ABS) pump |
| 6 | 60 | Delayed accessory, Power windows (2004-2005), Audio (2004-2005) |
| 7 | 20 | Power point #2 |
| 8 | 30 | 4×4 shift motor (2004-2005) |
| 9 | 20 | Power point #1 |
| 10 | 30 | ABS module (valves) |
| 11 | 40 | PTEC (2001-2003), Powertrain Control Module (PCM) (2004-2005) |
| 12 | 50 | Ignition relay/Starter relay |
| 13 | 40 | Trailer tow battery. Trailer tow turn signals |
| 14 | 10 | Daytime Running Lamps (DRL) (Canada), Foglamps (2001-2002; export only) |
| 15 | 15 | Memory (KAPWR) (2001-2002), Memory (PCM/DEATC/Cluster) (2003-2005), Courtesy lamps (2003-2005) |
| 16 | 15 | Headlamp switch (2001-2003), Foglamp switch (2003), Park lamps (2004-2005), Autolamp parklamps (2004-2005), Front foglamps relay coil (2004-2005) |
| 17 | 20 | 4×4 (v-batt 2) (2001-2003) |
| 5 | Two-speed 4×4 (relay coils) (2004-2005) | |
| 18 | 20 | 4×4 (v-batt 1) (2001-2003), PCM with two-speed 4×4 clutch (2004-2005) |
| 19 | 20 | High beam relay |
| 20 | 30 | Trailer electric brake module |
| 21 | 30 | Front wiper motor |
| 22 | 20 | Autolamp; Low beam |
| 23 | 30 | Ignition switch, PCM diode (2004-2005) |
| 24 | 20 | Rear fog lamps (2001-2002; export only) |
| 25 | 15 | Brake on-off (2004-2005) |
| 26 | 15 | Fuel pump (2001-2003) |
| 20 | Fuel pump (2004-2005) | |
| 27 | 20 | Trailer tow lamps, Trailer tow back-up |
| 28 | 20 | Horn relay |
| 29 | 20 | PJB |
| 30 | 20 | Rear wiper motor |
| 31 | — | — |
| 32 | — | — |
| 33 | 30 | Auxiliary blower motor |
| 34 | 30 | Power seats, Adjustable pedals |
| 35 | 20 | Rear power point (2001-2002) |
| 36 | 40 | Blower motor |
| 37 | 15 | A/C clutch relay/Transmission |
| 38 | 15 | Coil on plug (2001-2003), HEGO (2004-2005), VMV (2004-2005), CMS (2004-2005), ESM (2004-2005), CVS (2004-2005) |
| 39 | 15 | Injectors/Fuel pump relay |
| 40 | 15 | PTEC power (2001-2003), PCM power (2004-2005) |
| 41 | 15 | HEGO (2001-2003), VMV (2001-2003), CMS (2001-2003), PTEC (2001-2003), Coil on plug (2004-2005; 4.6L engine only), Ignition coil (2004-2005; 4.0L engine only) |
| 42 | 10 | Right low beam |
| 43 | 10 | Left low beam |
| 44 | 15 | Front foglamps |
| 45 | 5 | Brake pressure switch (2001-2002) |
| 2 | Brake pressure switch (ABS) (2003-2005) | |
| 46 | 20 | High beams |
| 62 | 30 | Circuit Breaker: Delayed accessory (2001-2002), Power windows circuit breaker (2003-2005) |
| Relay |
||
| 47 | Horn relay |
|
| 48 | Fuel pump relay | |
| 49 | High beam relay | |
| 50 | Fog lamp relay | |
| 51 | Police IVD relay DRL relay (Canada) |
|
| 52 | A/C clutch relay | |
| 53 | Trailer tow right turn | |
| 54 | Trailer tow left turn | |
| 55 | Blower motor relay | |
| 56 | Starter relay | |
| 57 | PTEC relay PCM relay |
|
| 58 | Ignition relay | |
| 59 | Driver brake applied or DRL relay (Canada only) | |
| Diode | ||
| 60 | PCM diode | |
| 61 | A/C clutch diode | |

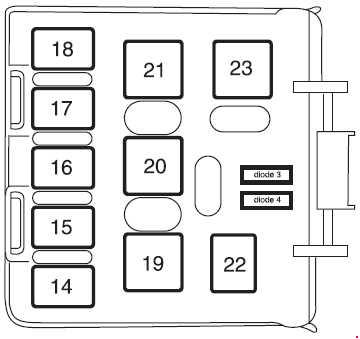

Rear Relay Box
| Number | Protected circuit |
| 14 | — |
| 15 | Trailer tow back- up lamps |
| 16 | — |
| 17 | — |
| 18 | — |
| 19 | Trailer tow park lamps |
| 20 | Trailer tow battery charge |
| 21 | — |
| 22 | Approach lamps |
| 23 | — |
| Diode | |
| 3 | — |
| 4 | — |
Auxiliary Relay Box
| Number | Protected circuit |
| 64 | Police vehicles equipped with AdvanceTrac® Two-speed 4×4 motor clockwise (2004-2005) |
| 65 | Two-speed 4×4 motor counterclockwise (2004-2005) |
| 66 | Open |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
