Ford Explorer UN105/UN150 (1994 – 2003) – fuse box diagram
Year of production: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003

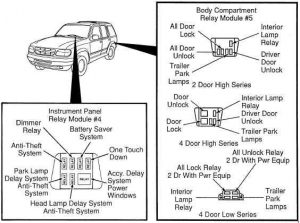

Passenger Compartment Fuse Panel
| Number | Ampers | Protected circuit |
| 1 | 7,5 | 1994-2000: Power Mirror Switch, Power Antenna, Memory Seat (1997-2000) |
| 5 | 2001-2003: Mirrors, Autolamp | |
| 2 | 7,5 | 1994-1996: High-Mount Brakelamp 1997-2000: Blower Motor Relay, Air Bag Diagnostic Monitor 2001-2003: Cluster, Autolamp. Generic Electronic Module (GEM), Keyless entry, 4×4 |
| 3 | 7,5 | 1997-2001: Left Stop/Turn Trailer Tow Connector 2002-2003: Trailer Tow Right-hand Stop/Turn Lamps |
| 15 | 1994-1996: Parking lamp, Instrument Cluster Gauges | |
| 4 | 10 | 1994-2000: Left Headlamp |
| 15 | 2001: Subwoofer | |
| 7,5 | 2002-2003: Starter | |
| 5 | 10 | 1994-2000: Data Link Connector (DLC) |
| 15 | 2001-2003: Park lamps, Autolamps, I/P dimming, Trailer tow | |
| 6 | 7,5 | 1994-1996: Air Bag System, Blower Relay, EATC 1997-2000: Rear Blower Motor (Without EATC) 2001; Without Rear Blower: Airbag Diagnostic Monitor 2002-2003: Air bags, Cluster |
| 15 | 2001; With Rear Blower: Blower Motor Relay, Airbag Diagnostic Monitor | |
| 7 | 7,5 | 1994-1996: Illumination Switches 1997-2001: Right Stop/Turn Trailer Tow Connector 2002-2003: Trailer Tow Left-hand Stop/Turn Lamps |
| 8 | 10 | 1994-2001: Right Headlamp, Foglamp Relay, DRL (1996), Lamp Out Warning (1996) |
| 7,5 | 2002-2003: Cluster, Audio, GEM | |
| 9 | 7,5 | 1997-2001: Brake Pedal Position Switch 2002-2003: Speed control, Anti-lock Brake System (ABS), 4×4, Powertrain Control Module (PCM), Park interlock, Keyless entry |
| 10 | 1994-1996: EATC system, Seat Memory, Message Center, Cellular Phone, Autolamps | |
| 10 | 7,5 | 1994-1996: EATC System, Rear Blower, Speed Control, GEM System, Brake Interlock, Overhead Console, Automatic Ride Control, Lamp Out Warning 1997-2001: Speed Control/Amplifier Assembly, Generic Electronic Module (GEM), Shift Lock Actuator, Blend Door Actuator, A/C – Heater Assembly, Flasher, Overhead Console (1998-2000), Load Leveling Module (1998-2000), Brake Pressure Switch (1997) |
| 15 | 2002-2003: Ignition, IPATS | |
| 11 | 7,5 | 1994-1996: Warning lamps, Autolamp 1997-2001: Instrument Cluster, 4X4 Module (2001) |
| 15 | 2002-2003: Subwoofer | |
| 12 | 7,5 | 1994-2000: Washer Pump Relay, Rear Washer Pump Relay |
| 10 | 2001: Washer Pump Relay, Rear Washer Pump Relay | |
| 15 | 2002-2003: Air bags, Climate control, Rear climate control | |
| 13 | 20 | 1997-2000: Brake Pedal Position Switch, Brake Pressure Switch |
| 15 | 1994-1996: PCM System, Stoplamps, AWD, Anti- Lock Brake, Speed Control, Trailer Tow 2001: Brake Pedal Position Switch, Brake Pressure Switch 2002-2003: Stop lamps, Speed control, Auxiliary Center High-Mounted Stop Lamp (CHMSL) |
|
| 14 | 10 | 1994-2001: 4 Wheel Anti-Lock Brake System (4WABS) Module, 4WABS Main Relay 2003: Air bags |
| 15 | 7,5 | 1994-2001: Instrument Cluster 2002-2003: 4×4 module |
| 16 | 30 | 1994-2001: Windshield Wiper Motor, Wiper Hi-Lo Relay, Wiper Run/Park Relay |
| 7,5 | 2002-2003: Turn signals, Park interlock, Overhead console, Climate control, 4×4, Speed control | |
| 17 | 25 | 1994- 2000: Cigar Lighter |
| 20 | 2001- 2003:Cigar Lighter, Data Link Connector | |
| 18 | 25 | 1997-2000: Drivers Unlock Relay, All Unlock Relay, All Lock Relay |
| 15 | 1994-1996: A/C System | |
| 20 | 2001-2003: Power locks, Keyless entry | |
| 19 | 25 | 1994-1996: Ignition Coil, PCM System 1997-2001: PCM Power Diode |
| 15 | 2002-2003: Trailer Tow Park Lamps | |
| 20 | 7,5 | 1994-1996: Radio, Power Antenna, GEM System, Anti-Theft, cCellular Phone 1997-2000: RAP Module, Generic Electronic Module (GEM), Radio 2001: Generic Electronic Module (GEM), Radio, Moonroof Relay, Power Window Relay |
| 15 | 2002-2003: Daytime Running Lamps (DRL), Reverse lamps, PCM | |
| 21 | 15 | 1994-2002: Flasher (Hazard) |
| 20 | 2003: Heated seats | |
| 22 | 20 | 1997-2001: Auxiliary Power Socket 2002-2003: I/P power point |
| 10 | 1994-1996: Turn signals | |
| 23 | 10 | 1994-1996: Rear wiper system 2002-2003: Front/Rear washers |
| 24 | 7,5 | 1997-2001: Clutch Pedal Position (CPP) Switch, Starter Interrupt Relay, Anti-Theft |
| 10 | 1994-1996: Starter Relay | |
| 30 | 2002-2003: Front wiper | |
| 25 | 7,5 | 1994-1996: Speedometer, GEM System 1997-2003: Generic Electronic Module (GEM), Instrument Cluster, Securi-Lock |
| 26 | 10 | 1994-1996: 4R44E/4R55E/4R7OW/5R55E Overdrive, DRL System, Backup Lamps, AWD, Rear Defroster 1997-2003: Battery Saver Relay, Electronic Shift Relay (1997-2000), Interior Lamp Relay, Electronic Shift Control Module (1997-2000) |
| 27 | 15 | 1997-2001: DRL, Backup Lamps Switch, DTR Sensor, Electric Shift |
| 10 | 1994-1996: Under Hood Lamp, Map Lamps, Glove Box Lamp, Dome Lamp, Visor Lamps, Accessory Delay, Dimmer Switch Illumination, 4×4 System | |
| 7,5 | 2002-2003: Audio, Windows, GEM, Moonroof, Rear window | |
| 28 | 7,5 | 1994-2001: Generic Electronic Module (GEM) (1994-2000), Radio (1997-2001), Memory Seat (1994-2000) |
| 15 | 2002-2003: Rear wiper (on glass) | |
| 29 | 10 | 1994-1999: Radio |
| 20 | 2001:Radio 2002-2003: Audio, Rear audio |
|
| 25 | 2000:Radio | |
| 30 | 15 | 1997-2000: Park Lamp/Trailer Tow Relay |
| 25 | 2001-2003: Power Seats | |
| 31 | 7,5 | 1994-1996: Rear blower system |
| 5 | 2001: Rear Blower Motor 2002: Rear climate control 2003: Instrument panel dimming (XLS)/Rear audio control (XLT) |
|
| 32 | 10 | 1997-2000: Heated Mirror |
| 7,5 | 1994-1996: Heated Mirror, Rear Defroster | |
| 5 | 2001-2002: Heated Rear Window Switch | |
| 33 | 15 | 1994-1996: High Beam Lamps 1997-2001: Headlamps, Daytime Running Lamps (DRL) Module, Instrument Cluster 2002-2003: Highbeam headlamps |
| 34 | 7,5 | 1994-1996: Lux Audio System 1997-2000: Rear Integrated Control Panel, CD |
| 5 | 2001: Rear Integrated Control Panel 2002-2003: Rear audio |
|
| 35 | 7,5 | 1997-2000: Real-Blower Motor (w/EATC) |
| 15 | 2001: 4X4 Module | |
| 5 | 2002-2003: ABS module | |
| 36 | 7,5 | 1997-2000: ATC Memory, CD, Rear Integrated Control Panel, Memory Seat, Message Center |
| 15 | 2001: Trailer Tow Relay |

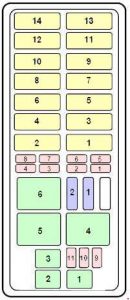

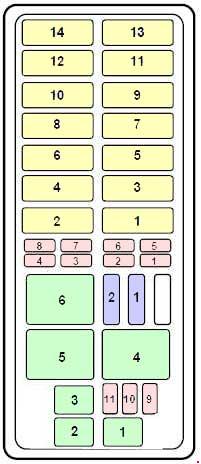

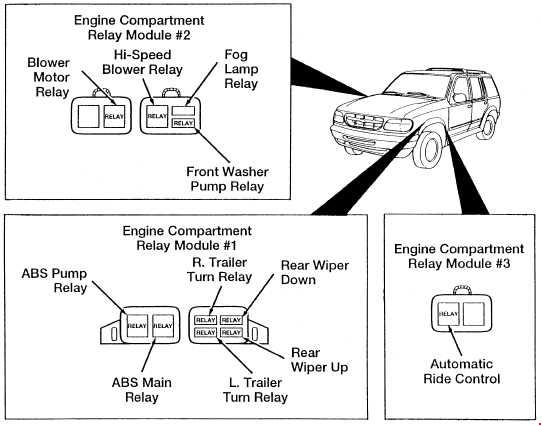

Power Distribution Box (1994-1996)
| Number | Ampers | Protected circuit |
| Maxi fuses | ||
| 1 | 30 | Rear window defrost |
| 2 | 30 | PCM power relay |
| 3 | 20 | Fuel system, anti-theft system |
| 4 | 20 | Headlamps |
| 5 | 30 | ABS system |
| 6 | 30 | ABS system |
| 7 | 20 | Trailer park LP and trailer stop LP |
| 8 | 30 | Battery saver relay and headlamp relay |
| 9 | 50 | Blower motor |
| 10 | 30 | Power locks, power windows and power |
| 11 | 20 | PCM memory and |
| 12 | 50 | Air ride control relay |
| 13 | 60 | Instrument panel fuse |
| 14 | 60 | Ignition |
| Mini fuses | ||
| 1 | 30 | JBL system |
| 2 | 15 | Rear wiper system |
| 3 | 30 | Power point |
| 4 | 20 | 4WD system |
| 5 | 15 | Air suspension system |
| 6 | 15 | Alternator system |
| 7 | 10 | Air bag system |
| 8 | 15 | DRL/Fog lamps/Off-road lamps |
| 9 | — | — |
| 10 | — | — |
| 11 | 20 | HEGO system |
| Relay | ||
| 1 | Wiper run relay | |
| 2 | Horn relay | |
| 3 | Wiper HI/LO relay | |
| 4 | WOT A/C relay | |
| 5 | PCM power relay | |
| 6 | Fuel pump relay | |
| Diode | ||
| 1 | ABS diode | |
| 2 | PCM diode | |

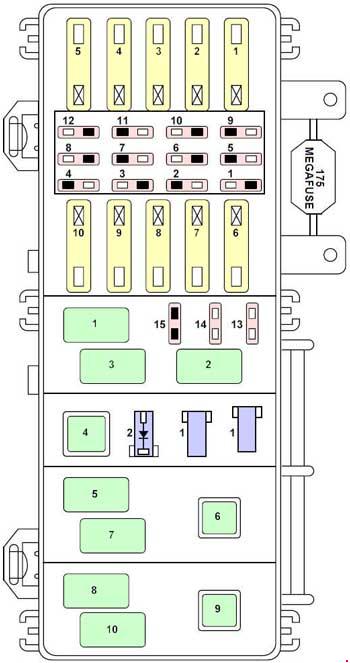

Power Distribution Box (1997-2000)
| Number | Ampers | Protected circuit |
| Maxi fuses | ||
| 1 | 60 | I/P Fuse Panel |
| 2 | 40 | Blower Motor Relay |
| 3 | 50 | 4 Wheel Anti-Lock Brake System (4WABS) Module |
| 4 | 30 | Power Windows, Power Moon Roof, Power Seat |
| 5 | 50 | Ignition Switch, Starter Relay |
| 6 | 20 | Transfer Case Relay |
| 7 | — | — |
| 8 | 20 | Automatic Ride Control ARC Switch Off/On Switch |
| 9 | 40 | Automatic Ride Control Relay |
| 10 | 30 | PCM Power Relay |
| Mini fuses | ||
| 1 | 10 | A/С Relay |
| 2 | 30 | 1998-2000: Heated Seats |
| 3 | 30 | Heated Backlight |
| 4 | 15 | Fog Lamps and Daytime Running Lamps |
| 5 | 10 | 1997: Air Bag Diagnostic Monitor |
| 6 | 10 | Powertrain Control Module |
| 7 | 30 | 4 Wheel Anti-Lock System (4WABS) Module |
| 8 | 15 | Real- Wiper Motor |
| 9 | 20 | Fuel Pump Relay and RAP Module |
| 10 | 15 | Horn Relay |
| 11 | 15 | Parklamps Relay and Mainlight Switch |
| 12 | 30 | Mainlight Switch and Multifunction Switch |
| 13 | 15 | Heated Oxygen Sensor, EGR Vacuum Regulator, EVR Solenoid, Camshaft Position (CMP) Sensor, Canister Vent Solenoid |
| 14 | 30 | Generator/Voltage Regulator |
| 15 | — | — |
| Relay | ||
| 1 | Wiper Park Relay | |
| 2 | A/С Relay | |
| 3 | Wiper High/Low Relay | |
| 4 | PCM Power Relay | |
| 5 | Fuel Pump Relay | |
| 6 | Starter Relay | |
| 7 | Horn Relay | |
| 8 | Rear Wipe Down Relay | |
| 9 | Blower Motor Relay | |
| 10 | Rear Wipe Up Relay | |
| Diode | ||
| 1 | DRL Diode | |
| 1 | — | |
| 2 | Electronic Engine Controls Diode | |

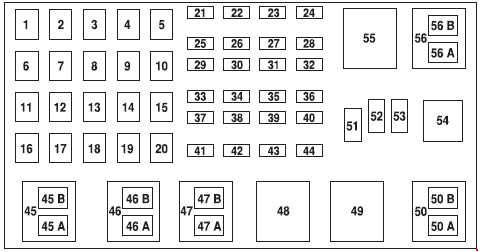

Power Distribution Box (2000-2003)
| Number | Ampers | Protected circuit |
| 1 | 50 | Fuse Panel |
| 2 | — | — |
| 3 | 20 | Moonroof |
| 4 | — | — |
| 5 | — | — |
| 6 | 50 | ABS Pump Motor |
| 7 | 30 | Powertrain Control |
| 8 | — | — |
| 9 | — | — |
| 10 | — | — |
| 11 | 50 | Ignition Switch |
| 12 | — | — |
| 13 | 20 | 4X4 Motor |
| 14 | — | — |
| 15 | — | — |
| 16 | 40 | Blower Motor |
| 17 | 30 | Rear Defroster |
| 18 | — | — |
| 19 | — | — |
| 20 | — | — |
| 21 | 10 | PCM Memory |
| 22 | 15 | Horn |
| 23 | 20 | Fuel Pump Motor |
| 24 | 25 | Headlamps |
| 25 | 10 | A/C Clutch Solenoid |
| 26 | — | — |
| 27 | — | — |
| 28 | 30 | 4WABS Module |
| 29 | 15 | Foglamps |
| 30 | — | — |
| 31 | 15 | Daytime Running Lamps |
| 32 | — | — |
| 33 | — | — |
| 34 | — | — |
| 35 | — | — |
| 36 | — | — |
| 37 | — | — |
| 38 | 10 | Left Low Beam |
| 39 | — | — |
| 40 | — | — |
| 41 | 15 | Heated Oxygen Sensors |
| 42 | 10 | Right Low Beam |
| 43 | — | — |
| 44 | — | — |
| 47A | 20 | Circuit Breaker: Windows |
| Relay | ||
| 45A | Wiper Hi/Low Relay | |
| 45B | Wiper Run/Park Relay | |
| 46A | — | |
| 46B | Rear Wiper Up Relay | |
| 47B | — | |
| 48 | Window Safety Relay | |
| 49 | Starter Relay | |
| 50A | — | |
| 52B | Fuel Pump Relay | |
| 54 | PCM Relay | |
| 55 | Blower Relay | |
| 56A | A/C Clutch Solenoid | |
| 56B | Horn Relay | |
| Diode | ||
| 51 | — | |
| 52 | — | |
| 53 | PCM Diode | |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
