Ford F-150 (2009 – 2014) – fuse box diagram
Year of production: 2009, 2010, 2011, 2012, 2013, 2014

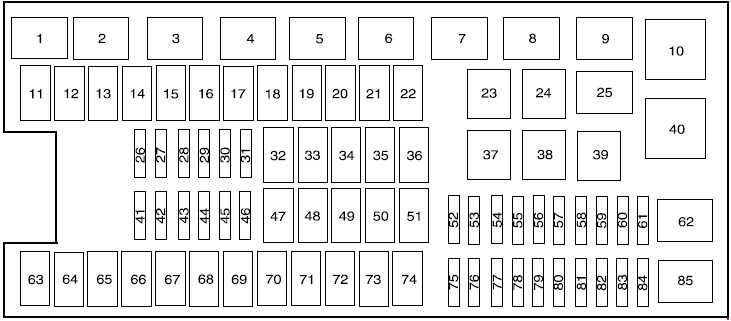

Power Distribution Box
| Number | Ampere rating [A] | Description |
| 11 | 30 | Power running board motors |
| 12 | 40 | 2010-2014: Electric fan |
| 50 | 2011-2014: Electric fan (3.5L, 6.2L with max trailer tow, SVT Raptor) | |
| 13 | 30 | Starter relay power |
| 14 | 30 | Passenger power seat |
| 15 | 40 | 2010-2014: Electric fan |
| 50 | 2011-2014: Electric fan (3.5L, 6.2L wlth max trailer tow, SVT Raptor) | |
| 16 | 20 | 2013-2014: Hlgh-lntenslty discharge headlamp -passenger side |
| 17 | 30 | Trailer brake control |
| 18 | 30 | 2010-2014: Auxiliary switch 1 (SVT Raptor) |
| 19 | 30 | 2010-2014: Auxiliary switch 2 (SVT Raptor) |
| 20 | 20 | 4×4 module (electronic shift) |
| 21 | 30 | Trailer tow battery charge relay power |
| 22 | 30 | Auxiliary power point (Instrument panel) |
| 26 | 10 | Powertrain control module – keep alive power and relay coll, canister vent solenoid, transmission (2009-2010) |
| 27 | 20 | Fuel pump relay power |
| 28 | 10 | 2010-2014: Auxiliary switch 4 (SVT Raptor) |
| 29 | 10 | 4×4 integrated wheel end solenoid |
| 30 | 10 | Air conditioner clutch relay power |
| 31 | 15 | 2011-2014: Run/start relay power |
| 20 | 2009-2010: Trailer tow park lamp relay | |
| 32 | 40 | Rear window defroster relay power, Heated mirror relay power |
| 33 | 40 | 2011-2014: 110-volt AC power point |
| 34 | 40 | 2009-2014: Powertrain control module relay power |
| 50 | 2011-2014: Powertrain control module relay power (3.5L engine) | |
| 35 | 20 | 2013-2014: Hlgh-lntenslty discharge headlamps -driver side |
| 36 | 30 | Roll stability control / Anti-lock brake system |
| 41 | 15 | 2012-2014: Front camera washer (SVT Raptor) 2010: Heated mirror |
| 42 | 5 | 2011-2014: Run/start relay coll |
| 43 | 15 | 2011-2014: Trailer tow back-up lamp relay power |
| 20 | 2009-2010: Backup lamp relay | |
| 44 | 15 | 2010-2014: Auxiliary switch 3 (SVT Raptor), Trailer tow power folding mirrors |
| 45 | 10 | 2011-2014: Alternator sensor |
| 20 | 2009-2010: Trailer tow stop turn relay feed | |
| 46 | 10 | Brake on/off switch |
| 47 | 60 | Roll stability control / Anti-lock brake system module (2011-2014) |
| 48 | 20 | 2011-2014: Moonroof |
| 49 | 30 | Wiper relay power |
| 50 | — | — |
| 51 | 40 | Blower motor relay power |
| 52 | 5 | 2011-2014: Run/start – Electronic power assist steering. Blower relay coll |
| 53 | 5 | 2011-2014: Run/start – Powertrain control module 2009-2010: PCM, 6R80 transmission |
| 54 | 5 | 2011-2014: Run/start – 4×4 module. Back-up lamps, Roll stability control /Anti-lock brake system. Trailer tow battery charge relay coll. Rear window defroster relay coll. Front camera washer relay coll (SVT Raptor) 2009-2010: 4×4 module, Back up lamp, RSC, Trailer tow battery charge relay |
| 55 | 5 | 2009-2010: Electronic compass mirror (6R transmission only) |
| 56 | 15 | 2011-2014: Heated mirrors |
| 57 | — | — |
| 58 | 15 | 2009-2010:Trailer tow backup lamps |
| 59 | 15 | 2009: Heated mirrors |
| 60 | — | 2009-2010: One-touch Start diode |
| 61 | — | 2009-2010: Fuel pump diode |
| 63 | 25 | 2010-2014: Electric fan relay power |
| 64 | 30 | 2009-2010: Amplifier |
| 40 | 2011-2012: Vacuum pump relay power (3.5L engine) | |
| 65 | 20 | Auxiliary power point (Instrument panel) |
| 66 | 20 | Auxiliary power point (Inside center console) |
| 67 | 20 | 2011-2014: Trailer tow park lamps relay power |
| 68 | 25 | 4×4 module, 4×2 elocker module (2013-2014) |
| 69 | 30 | Front heated or heated/cooled seats |
| 70 | — | — |
| 71 | 20 | 2011-2014: Heated rear seats |
| 72 | 20 | Auxiliary power point (rear) |
| 73 | 20 | 2011-2014: Trailer tow stop/turn lamps relay power |
| 74 | 30 | Driver power seat/memory module |
| 75 | 15 | 2009-2014: Powertrain control module – voltage power 1 |
| 25 | 2011-2014: Powertrain control module – voltage power 1 (3.5L engine) | |
| 76 | 20 | 2011-2014: Powertrain control module – Voltage power 2: General powertrain components (Mass air flow/intake air temp sensor -3.7L, 5.0L, 6.2L engines) (Canister vent solenoid – 3.5L engine) 2009-2010: Voltage power 2, Voltage – battery voltage, Mass air flow/Intake air temp, CMS 12 and 22 with 6R80 transmission, Brake on/off switch (BOO) |
| 77 | 10 | 2011-2014: Powertrain control module – Voltage power 3 (Emission related powertrain components, Electric fan relays coll) 2009-2010: Voltage power 3, Electric fan clutch, A/C clutch relay coil, Floor shifter (4–speed transmission) |
| 78 | 15 | 2010-2014: Powertrain control module – Voltage power 4 – Ignition colls (3.5L, 3.7L, 5.0L engines) |
| 20 | 2011-2014: Powertrain control module – Voltage power 4 – Ignition colls (6.2L engine) | |
| 25 | 2009: Ignition coils, Voltage power 4 | |
| 79 | 5 | 2011-2014: Rain sensor |
| 10 | 2009-2010: CMS 4–speed transmission, 12 and 22 with 4–speed transmission | |
| 80 | — | — |
| 81 | — | — |
| 82 | 10 | 2009-2010: Trailer Brake Control Module (TBCM), After market Center High Mounted Stop Lamp (CHMSL) |
| 83 | — | — |
| 84 | — | — |
| Relay | ||
| 1 | Powertrain control module | |
| 2 | Starter | |
| 3 | Blower motor | |
| 4 | Rear window defroster | |
| 5 | 2010-2014: Electric fan (high speed) | |
| 6 | Trailer tow park lamp | |
| 7 | 2010: Upfitter 1 relay 2011-2014: Run/start |
|
| 8 | Fuel pump | |
| 9 | Trailer tow battery charger | |
| 10 | 2010: Upfitter 2 relay 2011-2014: Powertrain control module (3.5L engine) |
|
| 23 | Air conditioner clutch | |
| 24 | — | |
| 25 | — | |
| 37 | Trailer tow left stop/turn | |
| 38 | Trailer tow right stop/turn | |
| 39 | Trailer tow back-up lamps | |
| 40 | 2010-2014: Electric fan | |
| 62 | 2011-2014: Wiper motor 2010: Upfitter 3 relay |
|
| 85 | 2010-2014: Electric fan (low speed) | |

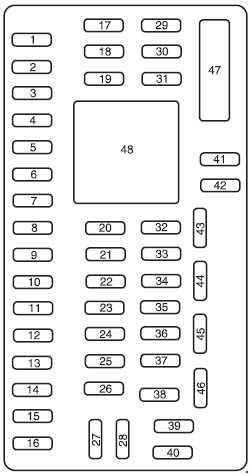

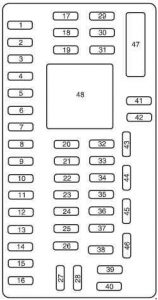

Passenger Compartment Fuse Panel (2009-2010)
| Number | Ampere rating [A] | Description |
| 1 | 30 | Moon roof |
| 2 | 15 | Not used (spare) |
| 3 | 15 | Not used (spare) |
| 4 | 30 | Not used (spare) |
| 5 | 10 | Keypad illumination, Brake Shift Interlock (BSI), SJB microprocessor power |
| 6 | 20 | Turn signals, Stop lamps |
| 7 | 10 | Low beam headlamps (left) |
| 8 | 10 | Low beam headlamps (right) |
| 9 | 15 | Interior courtesy lights, Cargo lamps |
| 10 | 15 | Backlighting, Puddle lamps |
| 11 | 10 | 2010: GPS module |
| 12 | 7,5 | Power mirror switch, Memory seat module microprocessor power, Steering column switch |
| 13 | 5 | SYNC® |
| 14 | 10 | 2010: Ambient lighting module |
| 15 | 10 | Climate control |
| 16 | 15 | Ignition switch feed |
| 17 | 20 | All lock motor feeds |
| 18 | 20 | Driver memory seat switch |
| 19 | 25 | Not used (spare) |
| 20 | 15 | Adjustable pedals, Datalink |
| 21 | 15 | Fog lamps, Fog lamp indicator |
| 22 | 15 | Park lamps, Side marker lamps |
| 23 | 15 | High beam headlamps |
| 24 | 20 | Horn |
| 25 | 10 | Interior demand lamps, Mid box power feed |
| 26 | 10 | Instrument panel cluster, Key out inhibit solenoid, Radio info display (CID), Radio buttons, Key-in chime |
| 27 | 20 | — |
| 28 | 5 | Radio muting |
| 29 | 5 | Instrument panel cluster |
| 30 | 5 | Passenger airbag disable indicator |
| 31 | 10 | Restraints control module |
| 32 | 10 | Non-integrated compass module, Heated-only seat module |
| 33 | 10 | Trailer brake controller |
| 34 | 5 | Electronic locking differential indicator |
| 35 | 10 | Rear park assist |
| 36 | 5 | Passive anti-theft system transceiver |
| 37 | 10 | 2010: Upfitter relay coils |
| 38 | 20 | Subwoofer |
| 40 | 20 | 2010: Rear heated seats module |
| 41 | 15 | Automatic dimming mirror, Door lock switch illumination, Radio accessory delay |
| 42 | 10 | Not used (spare) |
| 43 | 10 | Heated mirror/backlight relay, Rain sensor, Reverse camera |
| 44 | 10 | Not used (spare) |
| 45 | 5 | Front wiper logic, Blower motor relay |
| 46 | 7,5 | Occupant classification sensor (OCS) |
| 47 | 30 | Circuit Breaker: Power windows, Moon roof, Power sliding backlight |
| Relay | ||
| 48 | Delayed accessory relay (Feeds fuse 41 and circuit breaker 47) | |

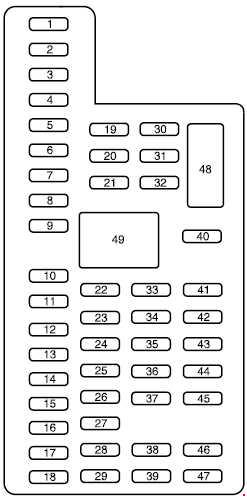

Passenger Compartment Fuse Panel (2011-2014)
| Number | Ampere rating [A] | Description |
| 1 | 30 | Driver side front window |
| 2 | 15 | SYNC, Display module (8 Inch) (2013-2014) |
| 3 | 30 | Passenger side front window |
| 4 | 10 | Interior lamps |
| 5 | 20 | Memory module |
| 6 | 5 | Not used (spare) |
| 7 | 7,5 | Power mirror switch. Memory seat module |
| 8 | 10 | Not used (spare) |
| 9 | 10 | Radio display, GPS module. Electric finish panel module (2013-2014), Navigation display (2011-2012) |
| 10 | 10 | Run/accessory relay |
| 11 | 10 | Instrument cluster |
| 12 | 15 | Interior lighting, Puddle lamps, lighting. Cargo lamp |
| 13 | 15 | Right turn signals/stop lamps |
| 14 | 15 | Left turn signals/stop lamps |
| 15 | 15 | Reverse lights. High-mounted |
| 16 | 10 | Right low-beam headlamp |
| 17 | 10 | Left low-beam headlamp |
| 18 | 10 | Brake-shift interlock, Keypad illumination, Powertrain control module wake-up, Passive anti-theft system |
| 19 | 20 | Audio amplifier |
| 20 | 20 | Power door locks |
| 21 | 10 | 2011-2012: Ambient lighting |
| 22 | 20 | Horn |
| 23 | 15 | Steering wheel control module |
| 24 | 15 | Datallnk connector. Steering wh module |
| 25 | 15 | Not used (spare) |
| 26 | 5 | Radio frequency module |
| 27 | 20 | Not used (spare) |
| 28 | 15 | Ignition switch |
| 29 | 20 | Radio |
| 30 | 15 | Front parking lamps |
| 31 | 5 | Brake on/off – Instrument panel. Engine |
| 32 | 15 | Delay/accessory – moonroof, power windows, locks. Automatic dimming mlrror/Compass, Trailer tow power telescope mirrors |
| 33 | 10 | Rear heated seats |
| 34 | 10 | Reverse sensing system, 4×4 switch, Rear video, Off-road indicator (SVT Raptor), Front video (SVT Raptor), Camera splice module (SVT Raptor) |
| 35 | 5 | Hill descent switch (SVT Raptor) |
| 36 | 10 | Restraint control module, Oc flcatlon system module |
| 37 | 10 | Trailer brake control |
| 38 | 10 | Delayed accessory – 110-volt Radio |
| 39 | 15 | Hlgh-beam headlamps |
| 40 | 10 | Rear park lamps |
| 41 | 7,5 | Passenger airbag deactivate Auxiliary switch (SVT Rapto) |
| 42 | 5 | Overdrive cancel switch |
| 43 | 10 | Not used (spare) |
| 44 | 10 | Not used (spare) |
| 45 | 5 | Not used (spare) |
| 46 | 10 | Climate controls module |
| 47 | 15 | Fog lamps, Exterior mirror tu |
| 48 | 30 | Circuit breaker: Power windows, Power sliding back window |
| Relay | ||
| 49 | Delayed accessory | |

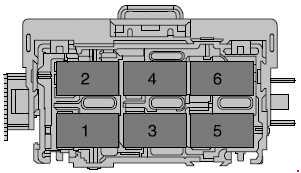

Auxiliary Relay Box (SVT Raptor only)
The relay box is located in the left-hand corner of the engine compartment near the windshield.
| Number | Description |
| 1 | Auxiliary switch 1 |
| 2 | Auxiliary switch 2 |
| 3 | Auxiliary switch 3 |
| 4 | Auxiliary switch 4 |
| 5 | Front camera washer |
| 6 | — |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
