Ford F-750 (2004 – 2010) – fuse box diagram

Ford F-750 (2004 – 2010) – fuse box diagram

Year of production: 2004, 2005, 2006, 2007, 2008, 2009, 2010

Engine Compartment Fuse Box

Ford F-750 – fuse box diagram – passenger compartment
Number Ampere rating [A] Description
F1 15 Main light switch
F2 30 Power seat (driver)
F3 30 Power seat (passenger)
F4 15 Washer pump relay, Washer pump motor
F5 15 Caterpillar / Cummins: Brake warning switch
F6 15 Caterpillar: Air intake heater
F7 15 Stoplamp switches, Brake pressure switches, Stoplamp relay
F8 25 Caterpillar: Fuel heater relay
Power Stroke 6.0L (’04-’07): Fuel heater relay
F9 20 ’06-’10: Inhibit relay, Engine ECM, Cluster, Transmission TCM, CJB Start (’07), CJB Run (’07), Starter cutoff (’10)
F10 15 ’04-’09: Heated drain valve
’10: Air tank moisture removal valve
F11 30 ’07-’10: Electronic trailer brake
F12 20 ’06-’10: Daytime Running Lamps (DRL), Blend door actuator, Climate mode, Back-up, Heated seats, Trailer ABS, Exhaust brake
F13 10 ’04-’05: Parking brake
F14
F15 7,5 ’04-’09: Body builder – trailer adapter stoplamps
F16 5 Hydraulic Brake: WABCO ABS
Air Brake: Bendix Air ABS
F17
F18 10 Fuel transfer pump
F19
F20 10 Power Stroke 6.0L (’04-’07): Engine ECM power relay
F21 10 ’04-’08: Hydromax motor input to GEM
F22 10 Power Stroke 6.0L (’04-’07): Engine IDM2 logic power
F23
F24
F101 30 Air Brake: Bendix Air ABS relay
Hydraulic Brake: Hydraulic brakes module
F102 20 Ignition switch to customer access
F103 50 ’04-’05: Ignition switch, Passenger compartment fuse box fuses 8, 9, 10, 11, 19, 20, 23, 24, 25, 29, 30, 31
20 ’06-’10: Ignition switch, Passenger compartment fuse box fuses 8, 9, 10, 11, 19, 29, 30
F104 20 Power point
F105 20 Door lock switches
F106 30 Main light switch, Multifunction switch, Passenger compartment fuse box fuses 16, 26 and 28, Headlamps, DRL relays
F107 50 Passenger compartment fuse box fuses 1, 2, 3, 4, 12, 13, 14, 15
F108 40 Cummins: Fuel heater relay
F109 40 Power window relay
F110 30 ’06-’10: Windshield wiper relay
F111 30 Park lamps relay, Park lamps, Body builder relay
F112 40 Blower motor relay, Blower motor
F113 30 Heated seats switches, Air ride seat (’09-’10)
F114 25 ’04-’09:
Hydraulic Brake: ABS ECU power
F115 40 ’04-’05: Ignition switch, Passenger compartment fuse box fuses 5, 8, 9, 10, 11, 21
20 ’06-’10: Ignition switch, Passenger compartment fuse box fuses 8, 9, 10 and 11, Starter motor relay (’06-’09)
F116 30 Turn relays and back-up lamp relay
F117 20 Stoplamp relay
F118 60 Trailer tow left, right and ABS fuse block (Hydraulic brake vehicles)
F119 60 Trailer tow fuse block, Stop/Tail/Marker lamps
F120 60 Trailer tow fuse block (Air brake vehicles), Left, right and ABS, Hydraulic HydroMax pump motor fuse relay
Relay
201 Washer pump relay
202 Wiper speed relay
203 Wiper run-park relay
204 ’04-’06:
Power Stroke 6.0L: Neutral start relay
Caterpillar / Cummins: Exhaust brake relay
’07-’10: Windshield wiper relay
205 ’04-’09: RH stop/turn relay
’10: Body builder relay, right turn
206 ’04-’09: LH stop/turn relay
’10: Body builder relay, left turn
207 ’04-’06:Drain valve heater relay
’07-’09:
Hydraulic Brake: ABS event relay
’10:
Air Brake: ABS event relay
Hydraulic Brake: Stop lamp relay
208 Back-up lamps relay, body builder relay (’10)
209 ’04-’07:
V8 engines: ECM ISO relay
Caterpillar / Cummins: Stop lamp relay
’08-’09: Stop lamp relay
’10: Auxiliary stoplamp relay
301 Fuel heater/transfer pump relay
302 Park lamp relay, body builder relay (’10)
303 Blower motor relay
304 Air Brake: ABS relay
Hydraulic Brake: Hydraulic modulator relay
Diode
501
502
503
Resister
401

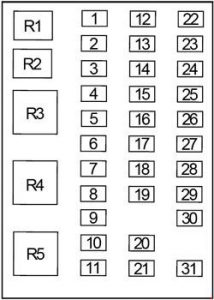

Passenger Compartment Fuse Box

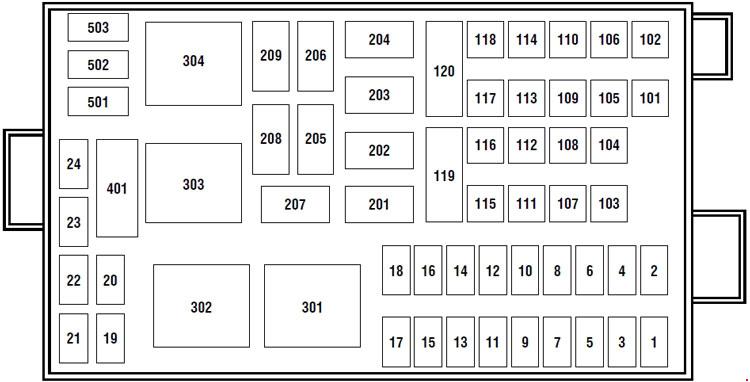

Ford F-750 – fuse box diagram – engine compartment
Ford F-750 – fuse box diagram – engine compartment
Number Ampere rating [A] Description
1 20 Horn relay
2 15 Hazard flasher
3 20 Cigar lighter
4 10 Data Link Connector (DLC), Engine diagnostic connector (’10), Parking brake warning (’07-’10)
5 15 Blend door actuator, Function selector switch assembly (’10), Trailer tow relay (’10), Trailer ABS (’05-’10), Daytime Running Lights (DRL), Climate mode (’07-’10), Heated seats, Exhaust brakes (’07-’10), Back-up lamps switch
6 10 ’04: Horn switch
7
8 5 Radio, GEM
9 5 Switch illumination (Headlamp, Power windows, Power door locks (’04-’07)), Power window switch LED and relay
10 15 Heated and lighted mirrors
11 30 ’04-’06:Wiper motor, Washer pump relay
5 ’07-’10: Wiper and washer systems
12 10 ’04-’09: Stop lamp switch (Hydraulic brake vehicles), Allison push-button shifter (’08-’09)
’10: Brake pedal position switch, Transmission shift selector, Stoplamp switch, Cruise switches
13 20 Cluster, Radio
14 14 Interior lamp relay
15 10 Interior lamp relay, Vanity mirror lamps, Map lamps, Generic Electronic Module (GEM)
16 15 Headlamp high beam, High beam indicator
17
18 5 Headlamp switch interior lighting
19 15 Engine control (all engines), Accelerator pedal (6.0L Power Stroke engine)
20 15 ’04-’06:Starter relay, GEM
5 ’07-’10: Starting system
21 10 Daytime Running Lights (DRL) resistor
22 15 Speed control feed (6.0L Power Stroke engine (’04)), Fuel transfer pump (’04), Air horn, Air solenoid 4–pack (Air horn, Air suspension dump, Differential lock axle and Two-speed axle)
23 10 Hazard flasher (Run)
24 15 ABS, Air dryer, Vacuum pump, Fuel heater relay
25 10 Function selector switch
26 10 Right hand low beam headlamp
27
28 10 Left hand low beam headlamp
29 10 Cluster (Power, Warning lamps), Gauges GEM, Hydraulic ABS relay, Air traction control, Hourmeter, Transmission temp
30 15 ’07-’10: Allison electronic transmission
31 15 ’04-’06:Allison transmission or ABS event
Relay
R1 Interior lamp relay
R2
R3 Horn relay
R4 One-touch window down relay
R5

Additional Relay Box No.2

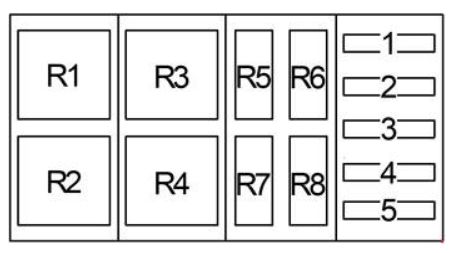

Ford-F-750 – fuse box diagram – additional relay box 2
Number Ampere rating [A] Description
1 30 Trailer tow ABS feed
2 30 Trailer tow park/marker lamps
3 30 Trailer tow stop lamps
4 30 Trailer tow turn/stop lamps (combined)
Trailer tow turn lamps (separate)
5
Relay
R1 Trailer tow ABS relay
R2 ’04-’07: Trailer tow stop lamp relay
’08-’10: Trailer tow marker lamp relay
R3 ’04-’07: Trailer tow park/marker lamp relay
’08-’10: Trailer tow stop lamp relay
R4 Trailer tow tail lamp relay
R5
R6
R7 ’04-’07:
Trailer tow left turn/stop lamp relay (combined)
Trailer tow left turn lamp relay (separate)
’08-’10: Trailer tow left turn lamp relay
R8 ’04-’07:
Trailer tow right turn/stop lamp relay (combined)
Trailer tow right turn lamp relay (separate)
’08-’10: Trailer tow right turn lamp relay

Passenger Compartment Relay Box (’10)

The relay center is located on the instrument panel behind the passenger side airbag panel.

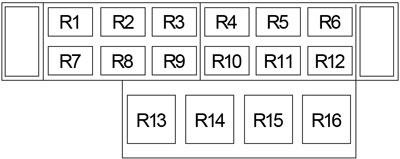

Ford F-750 – fuse box diagram – passenger compartment relay box
Ford F-750 – fuse box diagram – passenger compartment relay box
Number Description
R1
R2 Starter cutoff
R3 Run relay
R4 ABS warning indicator
R5 Hydraulic brake buzzer
R6 Eaton UltraShift
R7 Two-speed axle/Differential lock disable
R8 Air tank moisture removal valve
R9
R10 Hydraulic brake
R11 Eaton Ultrashift fan
R12 Starter cutoff
R13 Flasher
R14 Power window
R15 Full power buzzer
R16 Warning chime module

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
