Ford F53 (1997) – wiring diagrams – power lumbar

Ford F53 (1997) – wiring diagrams – power lumbar

Year of productions:  1997

Power lumbar

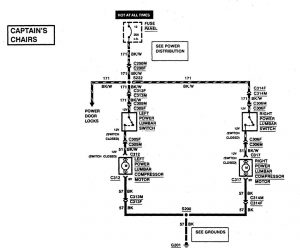

Ford F53 - wiring diagrams - power lumbar (part 1)
Ford F53 – wiring diagrams – power lumbar (part 1)

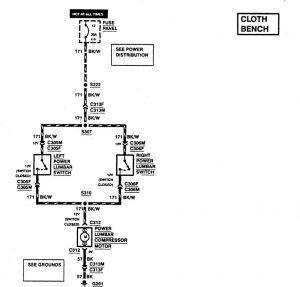

Ford F53 - wiring diagrams - power lumbar (part 2)
Ford F53 – wiring diagrams – power lumbar (part 2)

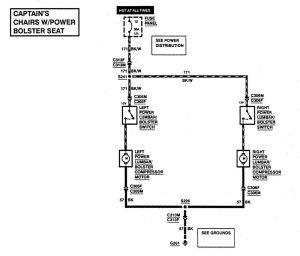

Ford F53 - wiring diagrams - power lumbar (part 3)
Ford F53 – wiring diagrams – power lumbar (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
