Ford F53 (1997) – wiring diagrams – wiper/washer

Ford F53 (1997) – wiring diagrams – wiper/washer

Year of productions:  1997

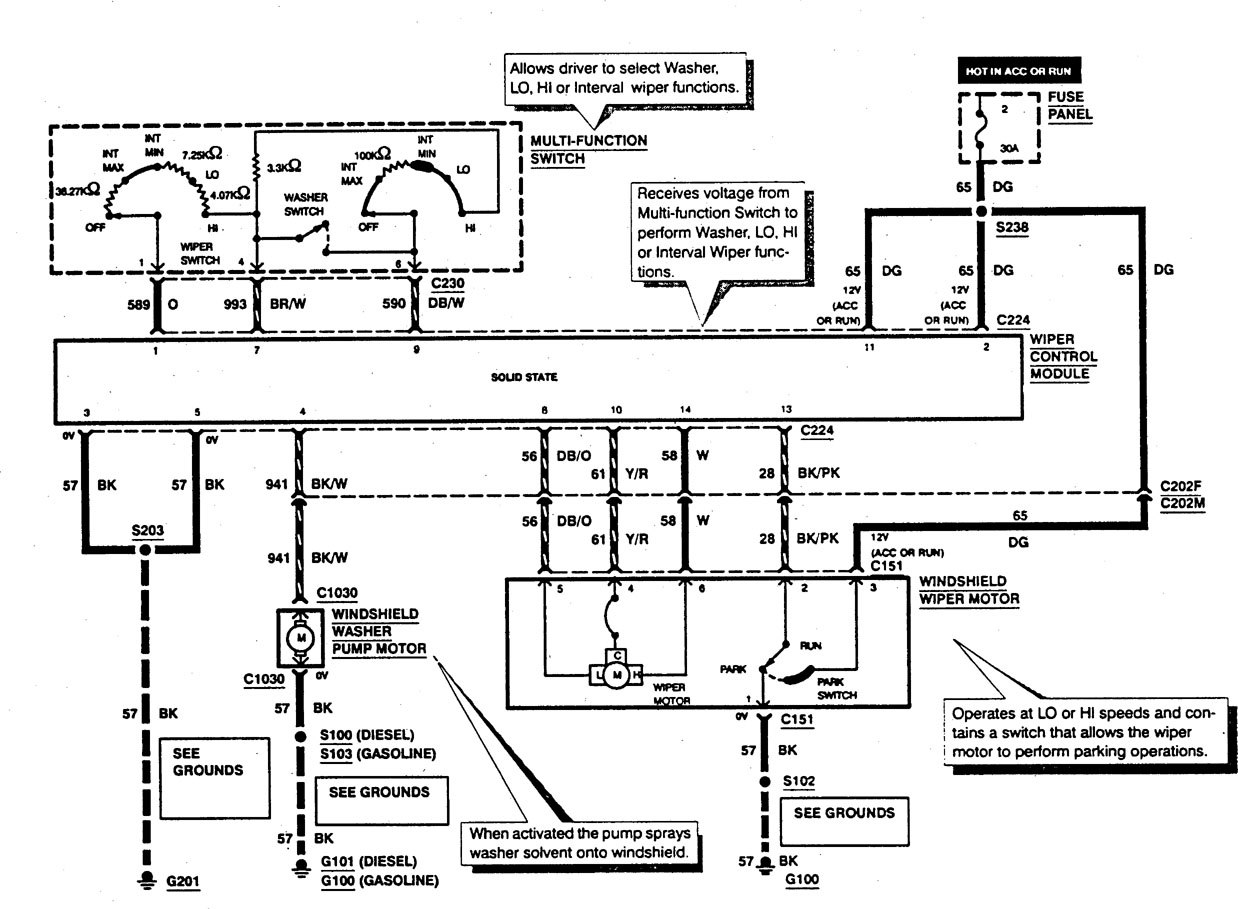

Wiper/washer

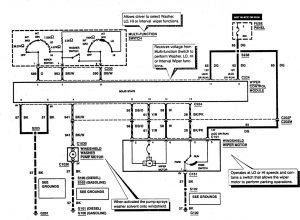

Ford F53 - wiring diagrams - wiper/washer
Ford F53 – wiring diagrams – wiper/washer

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
