Ford Fiesta (1997 – 2002) – fuse box diagram
Year of production: 1997, 1998, 1999, 2000, 2001, 2002

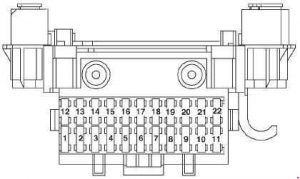

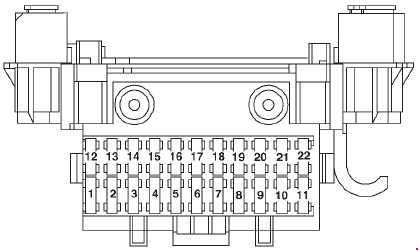

Passenger Compartment Fuse Box

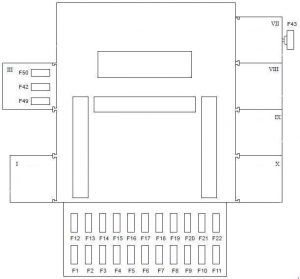

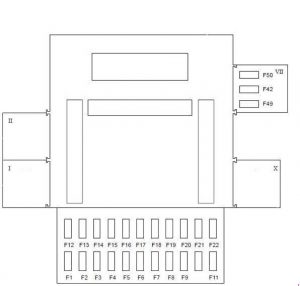

Type 1
LHD
RHD

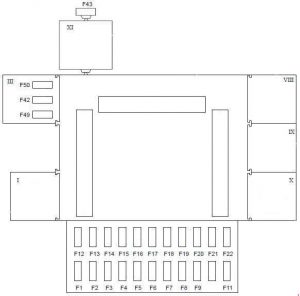

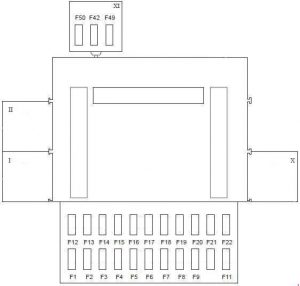

Type 2
LHD
RHD
Number | A | Description |
1 | 15 | Cigar lighter |
2 | 20 | 1) Clock, Heating, Interior Lights, Clock, Radio Memory |
7,5 | 2) Interior Lights, Climate Control Module, Clock, Instrument Panel | |
3 | 10 | 2) GEM Module 2) Fridge Van; up to 1999: Refrigeration System Relay, Evaporator Control Relay |
4 | 15 | 1) Heated Rear Window, Heated Exterior Mirrors |
20 | 2) Heated Rear Window | |
5 | 20 | 1) Horn, Alarm |
15 | 2) Multifunction Switch (Horn) | |
6 | 10 | 1) Left Side Lamp |
7,5 | 2) Left Side Lamp, Headlight Range Control, License Plate Light, Climate Control Module, Radio, Heated Rear Window Switch, Instrument Panel, Rear Fog Light Switch, Front Fog Light Switch, Heated Windshield Switch | |
7 | 10 | 1) Right Side Lamp |
7,5 | 2) Right Side Lamp, License Plate Light | |
8 | 15 | Up to 09.1999: Central Locking, Electric Mirrors As of 09.1999: GEM Module |
9 | 15 | 1) Seat Height Adjustment |
25 | 2) Multifunction Switch (Exterior Light) | |
10 | 15 | Heated Front Seat |
11 | 30 | Electric Windows, Central Locking |
12 | 20 | Wiper Motor, Screen Washer Pump |
13 | 15 | 1) Brake Light, Instrument Panel |
15 | 2) Brake Light Switch, Climate Control Module, Gearbox Switch (Manual Transmission), Gearbox Position Sensor (Automatic Transmission), Heater Control Valve Solenoid, Heated Rear Window Switch, Instrument Panel | |
14 | 10 | Air Bag |
15 | 10 | 1) Heated Mirrors |
7,5 | 2) Electric Mirrors | |
16 | 30 | Heater Blower Motor |
17 | 15 | Direction Indicators |
18 | 15 | 1) Ignition |
15 | 2) GEM Module, Auxiliary Relay, Main Relay, Ignition coil DIS (1,3 L Endura–E, 1,25 and 1,4 L ZETEC–SE), Passive Anti-Theft Module (1,8 L Diesel Endura–DE) | |
19 | 10 | 1) Engine Management, Radio, Alarm |
7,5 | 2) Fuse No.30, Radio, Clock, Instrument Panel | |
20 | 30 | 1) Headlight Washer |
10 | 1) RHD: Dim/Dip | |
20 | 2) Multifunction Switch (Daytime Running Lights, Exterior Light) | |
21 | 15 | 2) As of 09.1999: Central Locking |
22 | 10 | Data Link Connector (DLC), Radio |
42 | 15 | 2) Up to 09.1999: GEM Module |
10 | 2) Fridge Van; as of 09.1999: Refrigeration System Relay, Evaporator Control Relay | |
43 | 10 | 2) Daytime Running Light Relay (Parking Lights) |
49 | 20 | 2) Daytime Running Lights, Exterior Light |
50 | 25 | 2) Exterior Light |
Relay | ||
I | Ignition Relay | |
II | Heated Windshield Relay | |
III | — | |
IV | — | |
V | — | |
VI | — | |
VII | Daytime Running Light Relay (Parking Lights) | |
VIII | Daytime Running Light Relay (DTRL) | |
IX | Heated Windshield Relay | |
X | Heated Rear Window Relay | |
XI | Daytime Running Light Relay (Parking Lights) | |
1) Haynes 2) Electrical Wiring Diagrams (CG1647es) |

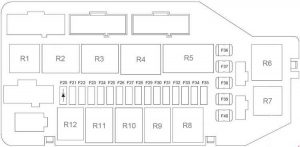

Engine Compartment Fuse Box
Number | A | Description |
20 | — | Diode |
21 | — | — |
22 | — | — |
23 | 10 | Left Main Beam |
24 | 10 | Right Main Beam |
25 | 10 | Left Low Beam |
26 | 10 | Right Low Beam |
27 | 10 | Petrol Engines: Lambda Sensor |
15 | Diesel Engines: Fuel Heater | |
28 | 15 | 1,8 L Diesel Endura–DE: PCM Module, EGR, Glow Plug Relay, Engine Cooling Fan Relay, High Speed Cooling Fan Relay (with air conditioning), Air Conditioning Relay, Vehicle Speed Sensor (VSS) Petrol Engines: Fuel Pump Relay, Engine Cooling Fan Relay, High Speed Cooling Fan Relay (with air conditioning), Air Conditioning Relay, Vehicle Speed Sensor (VSS), Passive Anti-Theft Module (1,25 L ZETEC–SE 1,3 L Endura–DE), PCM Module, Mass Air Flow Sensor (MAF; 1,4 L ZETEC–SE), Idle Air Control Valve, Injector, Canister Purge Valve |
29 | 20 | Air Conditioning Relay, Front Fog Light Relay, Dual Pressure Switch, Refrigeration System Relay (Fridge Van), Evaporator Control Relay (Fridge Van) |
30 | 3 | ABS |
31 | 30 | ABS |
32 | 3 | PCM Module |
33 | 30 | ABS (all models with ABS), Engine Cooling Fan (without ABS, without A/C) |
34 | 30 | PCM Module |
35 | 10 | Passive Anti-Theft Module (1,8 L Diesel Endura–DE), Fuel Pump Relay |
36 | 60 | Engine Cooling Fan Relay, High Speed Cooling Fan Relay (with air conditioning), Glow Plug Relay, Inhibitor Relay |
37 | 40 | Heated Windshield Relay |
60 | Fridge Van: Cooling Fan Relay (Refrigeration System), High Speed Cooling Fan Relay | |
38 | 10 | Main Relay |
39 | 60 | Daytime Running Light Relay (DTRL), Fuse No.: 1, 2, 3, 4, 5, 21, 22 (Passenger Compartment Fuse Box) |
40 | 60 | Ignition Lock, Fuse No.: 42, 50 (Passenger Compartment Fuse Box) |
Relay | ||
R1 | Auxiliary Relay | |
R2 | Inhibitor Relay | |
R3 | Diesel Engines: Glow Plug Relay | |
R4 | Engine Cooling Fan Relay | |
R5 | High Speed Cooling Fan Relay | |
R6 | Air Conditioning Relay | |
R7 | Air Conditioning Relay | |
R8 | Main Relay | |
R9 | Petrol Engines: Fuel Pump Relay Diesel Engines: Fuel Heater Relay |
|
R10 | Front Fog Light Relay | |
R11 | Low Beam Relay | |
R12 | High Beam Relay |

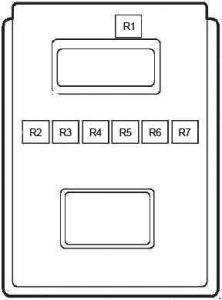

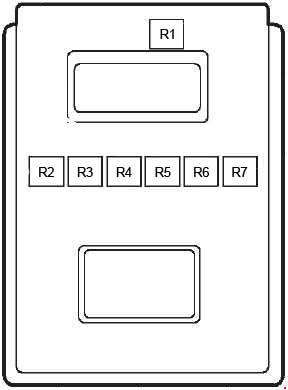

Relay Box (Fridge Van)
Number | Description |
R1 | Refrigeration System |
R2 | Evaporator |
R3 | Chiller |
R4 | Cooling Fan |
R5 | High Speed Cooling Fan |
R6 | Low Speed Cooling Fan |
R7 | Clutch Control |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
