Ford Fiesta Classic (from 2010) – fuse box diagram (India version)
Year of production: 2010, 2011, 20112, 2013, 2014, 2015, 2016
Fuse labels
| Labels | Description |
 |
See Owner’s handbook |
 |
Airbag |
 |
ABS |
 |
Headlamp dipped beam |
 |
Headlamp main beam |
 |
Fog lamps |
 |
Lighting control |
 |
Windscreen wipers |
 |
Heated rear window |
 |
Blower motor |
 |
Air conditioning |
 |
Horn |
 |
Engine management or electronic module |
 |
Fuel pump |
 |
Auxiliary heater, glow plugs and fuel injection pump relay |
 |
Battery and charging system |
 |
Instrument cluster, battery saver, number plate lamp |
 |
Side and tail lamps |
 |
Central locking |
 |
Hazard warning flashers and direction indicators |
 |
Ignition |
 |
Brake lamps |
 |
Reversing lamp |

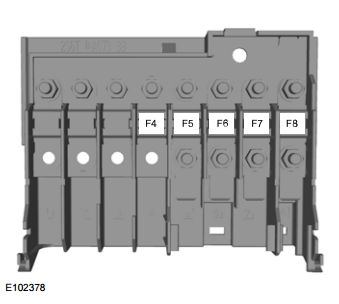

Engine compartment fuse box
The engine compartment fuse box is attached with the battery tray in the engine compartment
| Fuse | Ampere rating [A] | Circuits protected |
| F1 | — | Not used |
| F2 | — | Not used |
| F3 | — | Not used |
| F4 | 40 | Cooling Fan and AC (Duratec – Petrol) |
| 50 | Cooling Fan and AC (Duratorq – Diesel) | |
| F5 | 60 | Lighting and GEM |
| F6 | 60 | Ignition Relay |
| F7 | 60 | Engine and Lights |
| F8 | 60 | Anti lock braking system |

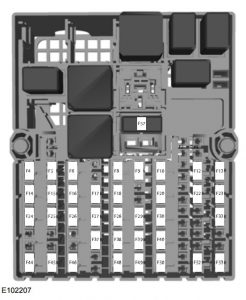

Passenger compartment fuse box
The passenger compartment fuse box is located behind the glove box in the instrument panel.
1. Open the glove box and empty it before continuing.
2. Press the side clips of the glove box inwards and swivel the box further down.
| Fuse | Ampere rating [A] | Circuits protected |
| F1 | — | Not used |
| F2 | — | Not used |
| F3 | — | Not used |
| F4 | 10 | Air conditioning clutch |
| F5 | 20 | ABS Valve |
| F6 | 30 | ABS Pump |
| F7 | — | Not used |
| F8 | 3 | Powered rear view mirror |
| F9 | 10 | Head lamp Low (Dipped) Beam – LHS |
| F10 | 10 | Head lamp Low (Dipped) Beam – RHS |
| F11 | — | Not used |
| F12 | 15 | Powertrain Control Module Fuse |
| F13 | 20 | Heated Oxygen Sensor/Powertrain Control Module – Diesel |
| F14 | 30 | Starter motor relay power |
| F15 | 20 | Fuel pump |
| F16 | 3 | Powertrain control module power |
| F17 | 15 | Lighting switch |
| F18 | 15 | Onboard diagnotics/Radio |
| F19 | — | Not used |
| F20 | 7,5 | Instrument cluster |
| F21 | — | Not used |
| F22 | 7,5 | Park/Tail lamp – LHS |
| F23 | 7,5 | Park/Tail lamp – RHS |
| F24 | 20 | Clock/Alarm Horn/Anti theft sensing |
| F25 | 15 | Turn/Hazard lamp |
| F26 | 20 | Heated back window |
| F27 | 15 | Horn |
| F28 | 3 | Alternator |
| F29 | 15 | Front power outlet connector |
| F30 | 15 | Ignition switch |
| F31 | — | Not used |
| F32 | — | Not used |
| F33 | 7,5 | License plate lamp |
| F34 | — | Not used |
| F35 | — | Not used |
| F36 | — | Not used |
| F37 | 3 | Antilock braking system |
| F38 | 7,5 | General Electrical Module (GEM) |
| F39 | 7,5 | Air bag |
| F40 | 10 | Light/Dimmer switch |
| F41 | — | Not used |
| F42 | — | Not used |
| F43 | — | Not used |
| F44 | 3 | Radio/Instrument cluster |
| F45 | 15 | Stop lamps |
| F46 | 20 | Front wiper |
| F47 | — | Not used |
| F48 | 7,5 | Back up lamp |
| F49 | 30 | Heater Blower |
| F50 | 20 | Fog lamps |
| F51 | — | Not used |
| F52 | 10 | High Beam – LHS |
| F53 | 10 | High Beam – RHS |
| F54 | — | Not used |
| F55 | — | Not used |
| F56 | — | Not used |
| F57 | 40 | Power windows |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
