Ford Fiesta (2011 – 2015) – fuse box diagram (India version)
Year of production: 2011, 2012, 2013, 2014, 2015

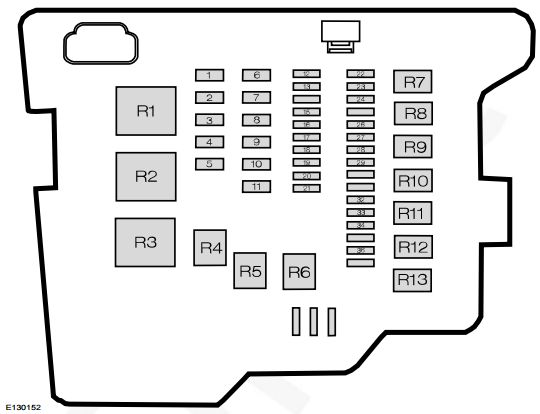

Engine compartment fuse box
| Fuse | Ampere rating [A] | Circuits protected |
| 1 | 40 | ABS module |
| 2 | 60 | Cooling system fan high speed |
| 3 | 40 | Cooling system fan low speed |
| 4 | 30 | Heater blower |
| 5 | 60 | Passenger compartment fuse box supply (battery) |
| 6 | 30 | Body control module (BCM) |
| 7 | 60 | Ignition relay |
| 8 (Diesel only) | 60 | Glow plug |
| 9 | 20 | Automatic transmission unit |
| 10 | 20 | Automatic transmission unit |
| 11 | 30 | Starter relay |
| 12 | 7,5 | Head lamp switch assembly |
| 13 | 7,5 | Back up lamp |
| 14 | — | Not used |
| 15 | — | Not used |
| 16 | 15 | Powertrain control module, engine control |
| 17 (Petrol only) | 15 | Fuel pump relay |
| 17 (Diesel only) | 20 | Fuel heater |
| 18 | 10 | Dipped beam left-hand relay |
| 19 | 10 | Dipped beam right-hand relay |
| 20 | 10 | Main beam left-hand relay |
| 21 | 10 | Main beam right-hand relay |
| 22 | 15 | (BCM) Lighting control battery supply |
| 23 | 15 | Front fog lamps |
| 24 | 15 | Direction indicators |
| 25 | — | Not used |
| 26 | 7,5 | Electric exterior mirrors switch, electric folding mirrors, power window (driver door) |
| 27 (Petrol only) | 10 | Powertrain control module (PCM) |
| 27 (Diesel only) | 7,5 | Powertrain control module (PCM) |
| 28 | 20 | Horn |
| 29 | 10 | Air conditioning clutch |
| 30 | — | Not used |
| 31 | — | Not used |
| 32 | 20 | Battery saver, horn |
| 33 | 20 | Heated rear window |
| 34 | 20 | Fuel tank, fuel pump relay, fuel heater |
| 35 | — | Not used |
| 36 | 20 | ABS valve (ESP only) |
| 37 | — | Not used |
| 38 | — | Not used |
| 39 | — | Not used |
| 40 | — | Not used |
| Relay | Circuits switched |
| R1 | Cooling system fan (High speed) |
| R2 | Ignition |
| R3 | Powertrain control module (PCM) |
| R4 | Main beam |
| R5 | Dipped beam |
| R6 | Backup lamp (automatic transmission only) |
| R7 | Cooling system fan (Low speed) |
| R8 | Starter |
| R9 | Air conditioning clutch |
| R10 | Front fog lamps |
| R11 | Fuel pump, fuel heater |
| R12 | Dual horn |
| R13 | Heater blower |

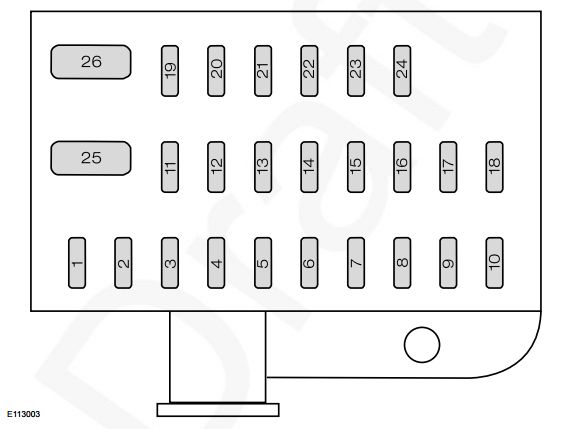

Passenger compartment fuse box
| Fuse | Ampere rating [A] | Circuits protected |
| 1 | 7,5 | Audio system, instrument cluster |
| 2 | 10 | Airbag module |
| 3 | — | Not used |
| 4 | — | Not used |
| 5 | — | Not used |
| 6 | 10 | Passive anti-theft system, electric power-assisted steering (EPAS), instrument cluster, BCM |
| 7 | 10 | Gearshift |
| 8 | — | Not used |
| 9 | 10 | Stop lamp switch |
| 10 | 20 | BCM (windscreen wiper) |
| 11 | 7,5 | Multifunctional display, clock, internal scanner, heating ventilating, air conditioning (HVAC) panel |
| 12 | 15 | Audio system |
| 13 | 20 | Cigar lighter |
| 14 | — | Not used |
| 15 | 15 | Data link connector |
| 16 | — | Not used |
| 17 | 15 | Ignition switch |
| 18 | 7,5 | Instrument Cluster |
| 19 | 7,5 | Fog lamp relay |
| 20 | 7,5 | Blower control, A/C Clutch |
| 21 | — | Not used |
| 22 | 15 | Wiper switch, washer pump |
| 23 | — | Not used |
| 24 | 15 | Body control module and rear wiper |
| 25 | 30 | Power windows (rear) |
| 26 | 30 | Power windows (front) |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
