Ford Fiesta mk6 (2008 – 2017) – fuse box diagram
Year of production: 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017

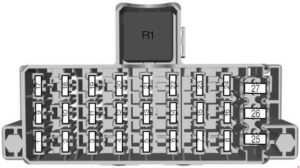

Passenger Compartment Fuse Box (Type 1; Europe)
| No. | A | Circuits protected |
| 1 | 7.5 | Ignition, rain sensor, heated windscreen |
| 2 | 10 | Stop lamps |
| 3 | 7.5 | Reversing lamp, Rear view camera (VP) |
| 4 | 7.5 | Headlamp levelling |
| 5 | 20 | Windscreen wipers |
| 6 | 15 | Rear window wiper |
| 7 | 15 | Washer pump |
| 8 | 10 | Parking aid (vehicles with front parking aid) |
| 9 | – | Not used |
| 10 | 7.5 | Heated seats |
| 11 | – | Not used |
| 12 | 10 | Airbag module |
| 13 | 10 | Ignition, electric power assisted steering, instrument cluster, passive anti theft system, ABS |
| 14 | 7.5 | Powertrain control module, gear selector lever, fuel pump, |
| 15 | 7.5 | Audio system, instrument cluster |
| 16 | 7.5 | Heated exterior mirror |
| 17 | 15 | Ignition switch |
| 18 | 20 | Cigar lighter, front power point |
| 19 | 15 | Data link connector |
| 20 | 20 | Trailer module |
| 21 | 15 | Audio system, Navigation, Bluetooth |
| 22 | 7.5 | Instrument cluster |
| 23 | 7.5 | Multi functional display, clock, internal scanner, heating ventilating, air conditioning panel |
| 24 | – | Not used |
| 25 | 30 | Power windows (front) |
| 26 | 30 | Heated windscreen, left-hand side |
| 27 | 30 | Heated windscreen, right-hand side |
| Relay | ||
|---|---|---|
| R1 | Ignition | |

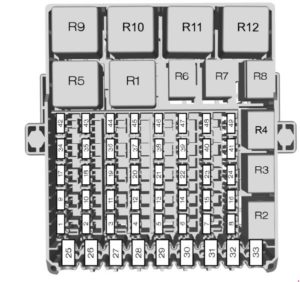

Passenger Compartment Fuse Box (Type 2; Europe)
| No. | A | Circuits protected |
| 1 | 7.5 | Ignition, autowipers, heated windshield, dome lamp, interior mirror |
| 2 | 10 | Stop lamps |
| 3 | 7.5 | Reversing lamp |
| 4 | 7.5 | Headlamp leveling |
| 5 | 20 | Windshield wipers |
| 6 | 15 | Rear window wiper |
| 7 | 15 | Washer pump |
| 8 | 10 | Parking aid (vehicles with front parking aid) (-2012) |
| 9 | 15 | Passenger heated seat (2012-) |
| 10 | 15 | Driver heated seat |
| 7.5 | Heated seats | |
| 11 | – | Not used |
| 12 | 10 | Airbag module |
| 13 | 10 | Ignition, electric power assisted steering, instrument cluster, passive anti-theft system, anti-lock braking system |
| 14 | 7.5 | Powertrain control module, transmission selector lever, fuel pump |
| 15 | 7.5 | Audio system, instrument cluster |
| 16 | 7.5 | Heated exterior mirror (-2012) |
| 17 | 15 | Ignition switch (-2012) |
| 18 | 20 | Cigar lighter, Front power point (-2012) |
| 19 | 15 | Data link connector |
| 20 | 20 | Trailer module |
| 21 | 15 | Audio system, (Navigation, Bluetooth (-2012)) |
| 22 | 7.5 | Instrument cluster |
| 23 | 7.5 | Multi functional display, clock, internal scanner, heating vents, air conditioning panel |
| 24 | 10 | SYNC, Bluetooth (2012-) |
| 25 | 30 | Power windows (front) (-2012) |
| 26 | 30 | Heated windshield left-hand side |
| 27 | 30 | Heated windshield right-hand side |
| 28 | 30 | High quality power supply (vehicles with Start-Stop), Voltage Quality Module |
| 29 | 20 | Rear power point (2012-) |
| 30 | 20 | Cigar lighter, front auxiliary power point |
| 31 | 30 | Power windows (rear) (-2012) |
| 32 | – | Not used |
| 33 | – | Not used |
| 34 | 20 | Keyless entry |
| 35 | 20 | Keyless entry |
| 36 | 15 | Ignition switch (2012-) |
| 37 | – | Not used |
| 38 | – | Not used |
| 39 | – | Not used |
| 40 | – | Not used |
| 41 | – | Not used |
| 42 | 7.5 | Rear view camera (2012-) |
| 43 | 10 | Active city stop (2012-) |
| 44 | 7.5 | Passenger airbag deactivation indicator (2012-) |
| 45 | – | Not used |
| 46 | – | Not used |
| 47 | – | Not used |
| 48 | – | Not used |
| 49 | – | Not used |
| Relay | ||
|---|---|---|
| R1 | Ignition | |
| R2 | Power fold mirror 1 (-2012) Cigar lighter, front auxiliary power point (2012-) |
|
| R3 | Power fold mirror 2 (-2012) | |
| R4 | Active city stop (2012-) | |
| R5 | Not used | |
| R6 | Keyless entry (accessory) | |
| R7 | Keyless entry (ignition) | |
| R8 | Rear auxiliary power point (2012-) | |
| R9 | Not used | |
| R10 | Not used | |
| R11 | Not used | |
| R12 | Not used | |

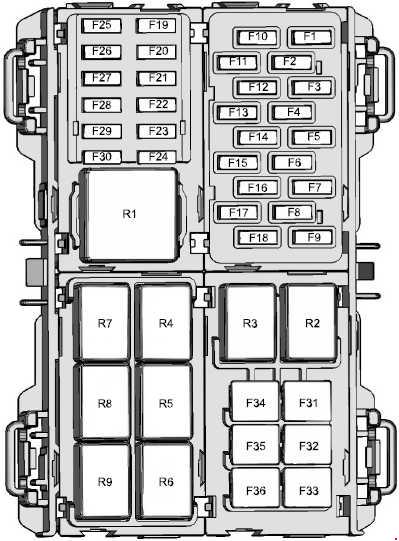

Passenger Compartment Fuse Box (North America)
| No. | A | Protected circuits |
| F1 | 15 | Ignition switch, Keyless entry ignition relay, Keyless entry accessory relay |
| F2 | 10 | up to 2012: Electronic mirror, A/C clutch, Engine compartment fuse panel |
| 7,5 | as of 2013: Auto-dimming interior mirror, Autowipers, Heater relay control | |
| F3 | 7.5 | Instrument cluster |
| F4 | 7.5 | Passenger airbag deactivation indicator, Occupant classification system |
| F5 | 15 | Diagnostic connector |
| F6 | 10 | Backup lamp |
| F7 | 7.5 | Instrument panel display, Intelligent access (IA) antenna (up to 2012), Manual climate controls (up to 2012), Information and entertainment display (as of 2013) |
| F8 | 7,5 | as of 2011: Front dome lamp (up to 2012), Moon roof switch |
| F9 | 20 | Keyless vehicle module |
| F10 | 15 | Radio, SYNC® module |
| F11 | 20 | Front wipers, Body control module (BCM) |
| F12 | 20 | up to 2012: Tire pressure monitoring system (TPMS) |
| 7,5 | as of 2013: Climate control | |
| F13 | 15 | Rear wiper, BCM |
| F14 | 20 | up to 2012: Intelligent access module as of 2013: Keyless entry, keyless starting |
| F15 | 15 | Washer pump |
| F16 | 15 | up to 2011: Global positioning system (GPS) module |
| 7,5 | as of 2011-2012: Electric exterior mirrors, power windows | |
| 5 | as of 2013: Electric exterior mirrors, power windows | |
| F17 | 7.5 | up to 2012: Heated seat relay |
| 15 | as of 2012: Heated seats | |
| F18 | 10 | Stop lamps, Turn signals (up to 2012) |
| F19 | 7.5 | Instrument cluster, Radio (up to 2011) |
| F20 | 10 | Airbag module |
| F21 | 10 | up to 2012: Body control module, Climate control, Passive anti-theft system transceiver, Electronic power steering module, Instrument cluster, Engine compartment fuse panel |
| 7,5 | as of 2012: Body control module – ignition switch, Climate control, Passive anti-theft system transceiver, Electronic power steering module, Instrument cluster, Engine compartment fuse panel as of 2013: Electronic power assisted steering, Instrument cluster, Ignition, Wipers, Passive anti-theft system |
|
| F22 | 7.5 | Accelerator pedal position sensor, Powertrain control module (PCM), Gear shifter (up to 2012), Anti-lock brake system (ABS) ignition feed, Stability assist (as of 2013) |
| F23 | 10 | up to 2012: Transmission control unit ignition feed, Tire pressure monitoring system ignition feed |
| 7,5 | as of 2013: Transmission control unit. | |
| F24 | 7.5 | up to 2011: Front dome lamp, Moon roof switch as of 2013: Audio unit |
| F25 | 7.5 | Exterior mirrors |
| F26 | 7.5 | up to 2011: Tire pressure monitoring system as of 2013: Central locking system. |
| F27 | — | Not used |
| F28 | — | Not used |
| F29 | — | Not used |
| F30 | — | Not used |
| F31 | 30 | Power windows |
| F32 | 20 | Battery back-up sounder, Rear auxiliary power points |
| F33 | 20 | Power points |
| F34 | 30 | Power windows |
| F35 | 20 | Moon roof |
| F36 | — | Not used |
| Relay | ||
| R1 | Ignition relay | |
| R2 | up to 2012: Left rear stop/turn lamp relay | |
| R3 | up to 2012: Right rear stop/turn lamp relay | |
| R4 | Driver heated seat relay | |
| R5 | Passenger heated seat relay | |
| R6 | Accessory mode remote keyless starting | |
| R7 | Ignition mode remote keyless starting | |
| R8 | Battery saver relay Battery back-up sounder |
|
| R9 | Accessory delay | |

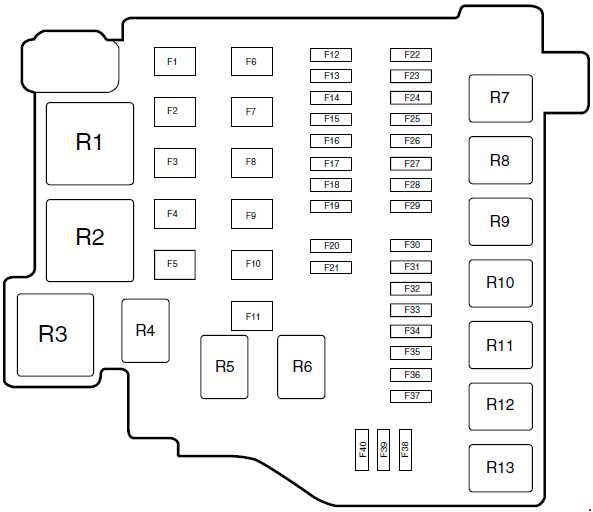

Engine Compartment Fuse Box (Europe ’08-’17; North America ’10-’11)
| No. | A | Circuits protected |
| 1 | 40 | Anti-lock braking system module |
| 30 | Anti-lock braking system, electronic stability program module (Europe only) | |
| 2 | 60 | Europe: Cooling system fan high speed |
| 50 | North America: Transmission control module (TCM) | |
| 3 | 40 | Cooling system fan |
| 30 | Cooling system fan low speed (Europe only) | |
| 4 | 30 | Heater blower |
| 40 | North America: Heater blower relay, Climate controls | |
| 5 | 60 | Passenger compartment fuse box supply (battery) |
| 6 | 30 | Body control module |
| 7 | 60 | Passenger compartment fuse box supply (ignition) |
| 8 | 50 | Europe; as of 2012: Automatic transmission |
| 60 | Europe; up to 2012: Glow plugs | |
| 30 | North America: Fuel pump | |
| 9 | 60 | Europe: Heated windshield |
| 20 | North America: ABS module valve | |
| 10 | – | Not used |
| 11 | 30 | Starter relay |
| 12 | 10 | High beam left-hand relay |
| 13 | 10 | High beam right-hand relay |
| 14 | 10 | Europe: Water pump North America: Left headlamp (low beam) |
| 15 | 10 | Europe: Ignition coils North America: Right headlamp (low beam) |
| 16 | 15 | Europe: Powertrain control module, high and low cooling fan North America: A/C clutch relay, Mass air flow (MAF) sensor, Powertrain control module (PCM), Fuel injectors, Vehicle speed sensor (VSS), Variable camshaft timing, Canister purge |
| 17 | 15 | Gasoline Engines: Heated oxygen sensors |
| 20 | Diesel Engines: Power supply module | |
| 18 | 10 | Europe; up to 2012: FN (Automatic) transmission |
| 15 | North America: Ignition coil | |
| 19 | 7.5 | Europe; as of 2012: Air conditioning compressor |
| 20 | – | Not used |
| 21 | 7.5 | Europe; as of 2012: Cooling system fan (1.6L Duratorq-TDCi) |
| 22 | 15 | Europe; up to 2012: Lighting control battery supply North America: BCM – exterior lighting |
| 23 | 15 | Europe: Front fog lamps |
| 7,5 | North America: Low beam relay | |
| 24 | 15 | Direction indicators |
| 25 | 15 | Europe; as of 2012: Exterior lighting left-hand side North America: Low beam relay, Daytime running lights |
| 10 | Europe; up to 2012: Daytime running lamps | |
| 26 | 15 | Europe; as of 2012: Exterior lighting right-hand side |
| 7.5 | Europe; up to 2012: Electric exterior mirrors switch, electric folding mirrors, power window (driver’s door) North America: Power mirror switch, Driver window switch |
|
| 27 | 7.5 | Europe: Powertrain control module North America: TCM, PCM, Natural vacuum leak detection |
| 28 | 20 | Europe: Anti-lock braking system, electronic stability program |
| 29 | 10 | Air conditioning clutch |
| 30 | – | Not used |
| 31 | 20 | North America: Low beam relay |
| 32 | 20 | Horn, battery saver, keyless vehicle module |
| 33 | 20 | Heated rear window |
| 34 | 20 | Europe: Fuel pump relay, diesel fuel heater |
| 35 | 15 | Europe; as of 2012: Category one alarm system |
| 36 | 7.5 | Europe; as of 2012: Automatic transmission controller |
| 37 | 25 | Europe; as of 2012: Front door module left-hand side |
| 38 | 25 | Europe; as of 2012: Front door module right-hand side |
| 39 | 25 | Europe; as of 2012: Rear door module left-hand side |
| 40 | 25 | Europe; as of 2012: Rear door module right-hand side |
| Relay | ||
|---|---|---|
| R1 | Europe: Cooling system fan | |
| R2 | Europe: Heated windshield | |
| R3 | Europe: Power control module | |
| R4 | High beam | |
| R5 | Europe; up to 2012: Dipped beam North America: PCM relay |
|
| R6 | Daytime running lamps | |
| R7 | Engine cooling fan | |
| R8 | Starter | |
| R9 | Air conditioning clutch | |
| R10 | Europe: Front fog lamps North America: Reverse light relay |
|
| R11 | Gasoline Engines: Fuel pump Diesel Engines: Fuel heater North America: Coil pack relay |
|
| R12 | Europe: Reversing lamp North America: Low beam relay |
|
| R13 | Heater blower | |

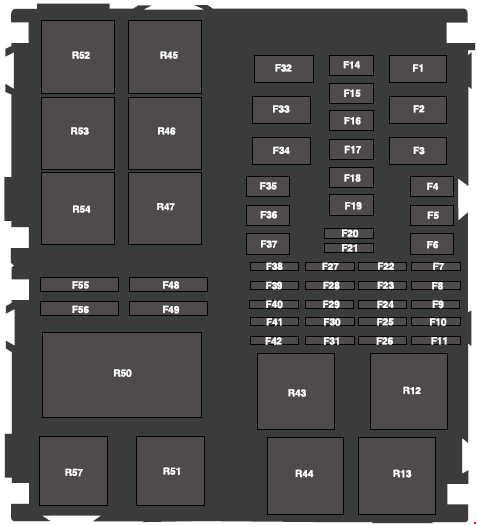

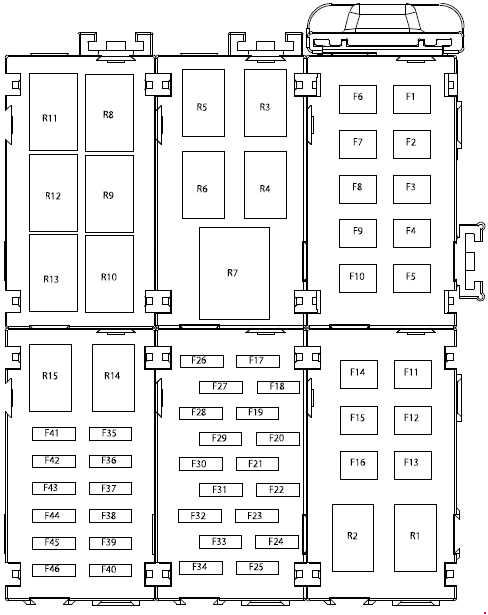

Engine Compartment Fuse Box (North America ”11-’15)
| No. | A | Circuits protected |
| 1 | 60 | as of 2013: Stability assist |
| 40 | Anti-lock brake system | |
| 2 | 40 | as of 2013: Transmission control module |
| 50 | up to 2012: Transmission control module | |
| 3 | 40 | Cooling fan |
| 60 | 1.0L and 1.6L EcoBoost (as of 2013): Cooling fan module | |
| 4 | 40 | Blower motor |
| 5 | 60 | Passenger compartment fuse box supply |
| 6 | 30 | Central locking system |
| 7 | 60 | as of 2013: Ignition switch up to 2012: Passenger compartment fuse panel |
| 8 | 60 | Powertrain control module |
| 9 | 40 | as of 2013: Stability assist module |
| 20 | up to 2012: ABS module valve | |
| 10 | 30 | Engine start Inhibitor |
| 11 | 30 | Electronic fuel pump relay, Fuel tank, Ignition coil |
| 12 | 60 | as of 2013: Power windows |
| 13 | 60 | 1.0L EcoBoost (as of 2013): High-speed cooling fan |
| 14 | – | Not used |
| 15 | – | Not used |
| 16 | – | Not used |
| 17 | 20 | High beam |
| 18 | 15 | as of 2013: Powertrain control module |
| 19 | 20 | as of 2013: Front fog lamps up to 2012: Low beam relay |
| 20 | 15 | Heated exhaust gas oxygen sensor, Catalyst module sensor |
| 21 | 7.5 | as of 2013: High beam up to 2012: Low and High beams coil relay control |
| 22 | 15 | as of 2013: Ignition coll |
| 20 | 1.0L and 1.6L EcoBoost (as of 2013): Ignition coll | |
| 15 | up to 2012: Mass air flow (MAF) sensor, Powertrain control module (PCM), Fuel injectors, Vehicle speed sensor (VSS), Variable camshaft timing, Canister purge | |
| 23 | 15 | as of 2013: Right-hand exterior lamps up to 2012: Daytime running lights |
| 24 | 10 | as of 2013: Emissions system |
| 25 | 15 | as of 2013: Left-hand exterior lamps up to 2012: BCM – exterior lighting |
| 26 | 20 | Horn. Battery back-up sounder. Interior lamps |
| 27 | 7.5 | 1.6L Flex-fuel (as of 2013): Engine cold start system module |
| 15 | 1.0L EcoBoost (as of 2013): Water pump, Active grill shutter | |
| 28 | 15 | Direction Indicators |
| 29 | 20 | as of 2013: Compressed natural gas, fuel control module |
| 30 | 10 | Air conditioning clutch |
| 31 | – | Not used |
| 32 | 7.5 | Powertrain control module. Transmission control unit |
| 33 | 10 | as of 2013: Fuel Injectors |
| 7.5 | 1.0L and 1.6L EcoBoost (as of 2013): Mass air flow sensor | |
| 15 | up to 2012: Ignition coil | |
| 34 | 30 | as of 2013: Heated exterior mirrors up to 2012: BCM – rear window defroster |
| 35 | 10 | as of 2013: Left-hand fog lamp up to 2012: Left headlamp (low beam) |
| 36 | 10 | as of 2013: Right-hand fog lamp up to 2012: Right headlamp (low beam) |
| 37 | 10 | Left-hand high beam |
| 38 | 10 | Right-hand high beam |
| 39 | 2 | up to 2012: Natural vacuum leak detection |
| 40 | – | Not used |
| 41 | – | Not used |
| 42 | – | Not used |
| 43 | – | Not used |
| 44 | – | Not used |
| 45 | – | Not used |
| 46 | – | Not used |
| Relay | ||
| R1 | as of 2013: Compressed natural gas fuel system | |
| R2 | Not used | |
| R3 | Powertrain control module | |
| R4 | Blower motor | |
| R5 | Cooling fan | |
| R6 | Air conditioning clutch | |
| R7 | 1.0L and 1.6L EcoBoost (as of 2013): High-speed cooling fan | |
| R8 | up to 2012: Daytime running lamp | |
| R9 | Engine start Inhibitor | |
| R10 | High beam | |
| R11 | as of 2013: Front fog lamps up to 2012: Low beam relay |
|
| R12 | Reversing lamp | |
| R13 | Fuel pump | |
Engine Compartment Fuse Box (North America ’15-’17)
| No. | A | Circuits protected |
| F1 | 40 | Anti-lock brake system module |
| 60 | Stability assist | |
| F2 | 40 | Cooling fan relay |
| 60 | 1.6L Ecoboost:High-speed cooling fan relay | |
| F3 | 60 | Passenger compartment fuse box |
| F4 | 20 | Body control module Power door locks |
| F5 | – | Not used |
| F6 | 40 | Blower motor relay Blower motor |
| F7 | – | Not used |
| F8 | – | Not used |
| F9 | 7.5 | Front fog lamp relay Headlamp high beam relay |
| F10 | 15 | Body control module Right-hand exterior lamps |
| F11 | 15 | Body control module Left-hand exterior lamps |
| F14 | – | Not used |
| F15 | – | Not used |
| F16 | – | Not used |
| F17 | – | Not used |
| F18 | – | Not used |
| F19 | 30 | Fuel Injectors |
| F20 | – | Not used |
| F21 | 7.5 | 1.0L and 1.6L EcoBoost: Mass air flow sensor |
| 10 | Fuel Injectors | |
| F22 | 15 | Powertrain control module |
| F23 | 15 | Camshaft position sensor Heated oxygen sensor |
| F24 | 15 | 1.6L Sigma:Ignition coll |
| 20 | 1.0L and 1.6L EcoBoost: Ignition coll | |
| F25 | 10 | Variable camshaft timing Evaporative emission canister purge valve. R57, R45 and R50 relay coll |
| F26 | 7.5 | 1.6L Flex-fuel:ECSS system |
| 15 | 1.0L EcoBoost: Active grille shutter Water pump Air conditioning control module |
|
| F27 | – | Not used |
| F28 | – | Not used |
| F29 | – | Not used |
| F30 | – | Not used |
| F31 | – | Not used |
| F32 | 60 | Passenger compartment fuse box |
| F33 | 60 | Power windows |
| F34 | 40 | 6-Speed PowerShift Transmission: Transmission control module |
| 60 | 1.0L EcoBoost: High speed cooling fan | |
| F35 | 40 | Anti-lock brake system with electronic stability control |
| F36 | 30 | Engine start Inhibitor Starter motor solenoid |
| F37 | 30 | Heated rear window Heated exterior mirrors |
| F38 | 20 | Body control module Battery saver |
| F39 | 15 | Body control module Direction Indicators |
| F40 | – | Not used |
| F41 | 10 | Air conditioning clutch |
| F42 | 7.5 | Powertrain control module Transmission control module Evaporative emission canister purge valve |
| F48 | 10 | Left-hand front fog lamp |
| F49 | 10 | Right-hand front fog lamp |
| F55 | 10 | Left-hand high beam |
| F56 | 10 | Right-hand high beam |
| Relay | ||
| R12 | Powertrain control module relay | |
| R13 | Headlamp high beam relay | |
| R43 | Not used | |
| R44 | Front fog lamp relay | |
| R45 | A/C clutch relay | |
| R46 | Not used | |
| R47 | Fuel pump relay | |
| R50 | 1.0L and 1.6L EcoBoost: High speed cooling fan | |
| R51 | Start Inhibit relay | |
| R52 | Blower motor relay | |
| R53 | Not used | |
| R54 | Reversing lamp | |
| R57 | Cooling fan relay | |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
