Ford Focus mk3 (from 2015) – fuse box diagram (EU version)
Year of production: 2015, 2016

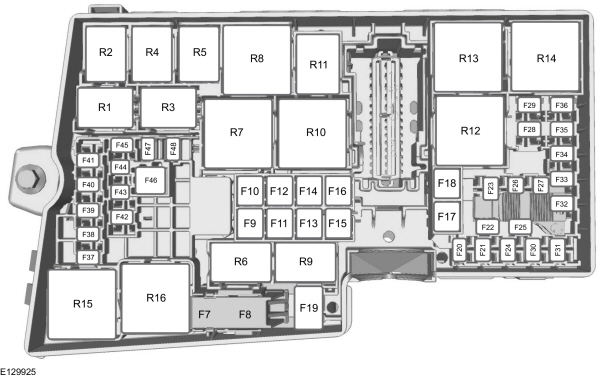

Engine compartment fuse box
| Fuse | Ampere rating [A] | Circuits protected |
| F7 | 40** | Anti-lock brake system. Electronic stability program. |
| F8 | 30** | Electronic stability program |
| F9 | 40** | Luggage compartment fuse box |
| F10 | 40** | Blower motor |
| F11 | 30** | Auto-Start-Stop module |
| F12 | 30** | Powertrain control module |
| F13 | 30** | Starter relay |
| F14 | 40** | Right-hand heated windshield element |
| F15 | 25** | Transmission control module. Intercooler fan |
| F16 | 40** | Left-hand heated windshield element |
| F17 | 20** | Auxiliary heater |
| F18 | 20** | Windshield wipers |
| F19 | 5* | Anti-lock brake system. Electronic stability program |
| F20 | 15* | Horn |
| F21 | 5* | Brake lamps |
| F22 | 15* | Battery monitor system |
| F23 | 5* | Battery monitor system |
| F24 | — | Not used |
| F25 | — | Not used |
| F26 | 25* | Transmission control module |
| F27 | 15* | Air conditioning clutch |
| F28 | 10* | Headlamp washer |
| F29 | 20** | Spryskiwacz reflektora |
| F30 | 5* | Powertrain control module |
| F31 | — | Not used |
| F32 | 10* | Powertrain control module relay. Cooling fan module rela |
| F33 | 15* | Powertrain control module. Ignition coils |
| F34 | 10* | Powertrain control module |
| F35 | 10* | Water-in-fuel sensor. Powertrain control module. Ignition coils |
| F36 | 5* | Active grill shutters |
| F37 | 20** | Instrument panel auxiliary power point |
| F38 | 15* | Powertrain control module. Transmission control module |
| F39 | 5* | Headlamp leveling |
| F40 | 5* | Electronic power assist steering |
| F41 | 20** | Body control module |
| F42 | — | Not used |
| F43 | 15* | Headlamp leveling. Adaptive front lighting unit |
| F44 | 5* | Adaptive cruise control |
| F45 | 10* | Heated washer nozzle |
| F46 | 25* | Cooling fan |
| F47 | — | Not used |
| F48 | 15 | Diesel particulate filter vaporizer |
|
*Mini fuses
**Cartridge fuses
|
||
| Relay | Circuits switched |
| R1 | Intercooler fan |
| R2 | Horn |
| R3 | Diesel particulate filter vaporizer |
| R4 | Not used |
| R5 | Not used |
| R6 | Cooling fan relay |
| R7 | Heated windshield |
| R8 | Cooling fan relay |
| R9 | Headlamp washer |
| R10 | Cooling fan relay |
| R11 | Air conditioning clutch |
| R12 | Cooling fan relay |
| R13 | Blower motor |
| R14 | Engine control module |
| R15 | Starter motor |
| R16 | Ignition |

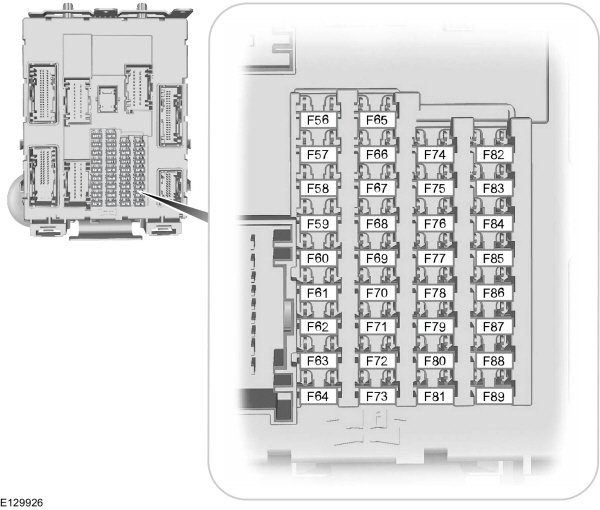

Passenger compartment fuse box
| Fuse | Ampere rating [A] | Circuits protected |
| F56 | 20 | Fuel pump |
| F57 | — | Not used |
| F58 | — | Not used |
| F59 | 5 | Passive anti-theft transceiver |
| F60 | 10 | Interior lighting. Driver door switch pack. Glove box lamp. Ambient lighting. Moonroof |
| F61 | 20 | Cigar lighter. Rear auxiliary power points |
| F62 | 5 | Autowipers. Humidity sensor. Auto-dimming interior mirror |
| F63 | 10 | Adaptive cruise control |
| F64 | — | Not used |
| F65 | 10 | Liftgate release |
| F66 | 20 | Driver door lock |
| F67 | 7,5 | SYNC module. Global positioning system module. Information and entertainment display |
| F68 | 15 | Electric steering column lock |
| F69 | 5 | Instrument cluster |
| F70 | 20 | Central locking system |
| F71 | 7,5 | Air conditioning |
| F72 | 7,5 | Steering wheel module |
| F73 | 7,5 | Data link connector |
| F74 | 15 | High beam |
| F75 | 15 | Front fog lamps |
| F76 | 10 | Reversing lamps |
| F77 | 20 | Windshield washer pump |
| F78 | 5 | Ignition switch. Push button ignition switch. Keyless vehicle module |
| F79 | 15 | Audio unit. Navigation DVD player. Hazard flasher switch. Door lock switch |
| F80 | 20 | Moonroof |
| F81 | 5 | Interior motion sensor. Radio frequency receiver |
| F82 | 20 | Windshield washer pump |
| F83 | 20 | Central locking system |
| F84 | 20 | Driver door unlock |
| F85 | 7,5 | Air conditioning. Moonroof. Heated seat switches. Passenger airbag deactivation switch |
| F86 | 10 | Restraints control module. Occupant classification system |
| F87 | 15 | Heated steering wheel |
| F88 | 25 | Voltage quality module |
| F89 | — | Not used |

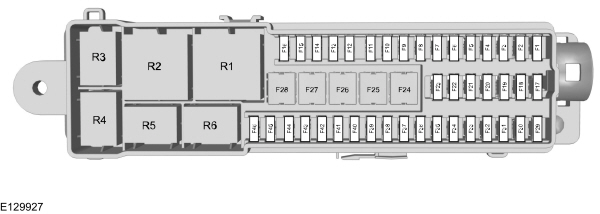

Luggage compartment fuse box
| Fuse | Ampere rating [A] | Circuits protected |
| F1 | 5* | Relay coils |
| F2 | — | Not used |
| F3 | 5* | Keyless vehicle door handles |
| F4 | 25* | Front left door control unit |
| F5 | 25* | Front right door control unit |
| F6 | 25* | Rear left door control unit |
| F7 | 25* | Rear right door control unit |
| F8 | 10* | Anti-theft alarm |
| F9 | 25* | Driver seat |
| F10 | 25* | Power windows |
| F11 | 25* | Passenger seat |
| F12 | — | Not used |
| F13 | — | Not used |
| F14 | — | Not used |
| F15 | — | Not used |
| F16 | — | Not used |
| F17 | — | Not used |
| F18 | — | Not used |
| F19 | — | Not used |
| F20 | — | Not used |
| F21 | — | Not used |
| F22 | — | Not used |
| F23 | — | Not used |
| F24 | 30** | Heated rear window |
| F25 | 20** | Luggage compartment auxiliary power points |
| F26 | — | Not used |
| F27 | — | Not used |
| F28 | 40** | Trailer tow module |
| F29 | 5* | Blind spot monitor. Lane keeping system. Active City Stop. Rear view camera |
| F30 | 5* | Parking aid module |
| F31 | — | Not used |
| F32 | — | Not used |
| F33 | 15* | Rear window wiper relay |
| F34 | 15* | Driver heated seat |
| F35 | 15* | Passenger heated seat |
| F36 | — | Not used |
| F37 | — | Not used |
| F38 | — | Not used |
| F39 | — | Not used |
| F40 | — | Not used |
| F41 | 5* | Retractable tow ball |
| F42 | — | Not used |
| F43 | — | Not used |
| F44 | 10* | Power exterior mirrors |
| F45 | 7,5* | Heated exterior mirrors |
| F46 | — | Not used |
|
*Mini fuses
**Cartridge fuses
|
||
| Relay | Circuits switched |
| R1 | Ignition switch |
| R2 | Heated rear window |
| R3 | Rear window wiper |
| R4 | Not used |
| R5 | Anti-theft alarm horn |
| R6 | Delayed accessory power |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
