Ford Freestar (1998 – 2003) – fuse box diagram
Year of production: 1998, 1999, 2000, 2001, 2002, 2003

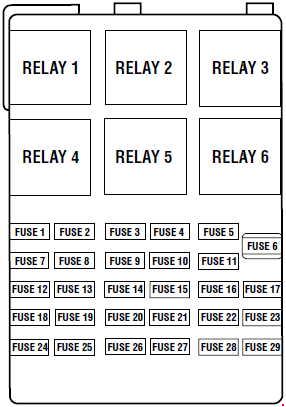

Passenger Compartment Fuse Panel
| Fuse | A | Circuit protected |
| 1 | 10 | Stepwell lamps, Puddle lamps, 2nd row reading lamps, 3rd row reading lamps, Cargo lamp, Dome lamp, Map lamp, Visor/Vanity lamps, Remote Keyless Entry (RKE) keypad, Turn signal mirrors |
| 2 | 25 | I/P Courtesy Lamps, Video Cassette Player (VCP), Glove Box Lamp, Trailer Tow Module (up to 2000) |
| 3 | 15 | as of 2001: Power mirror motors, Adjustable pedal motor, Memory module (if equipped) |
| 10 | up to 2000: Power mirror motors | |
| 4 | — | — |
| 5 | 20 | Console power point |
| 6 | 15 | Radio, Compact Disc (CD) changer, Remote Keyless Entry Module, Power Sliding Door (PSD) module, Rear seat radio controller (if equipped), Rear seat entertainment module (if equipped) |
| 7 | 15 | Left rear turn lamp, Backup lamps, Right stop lamp, Right rear park lamp, License Lamps |
| 8 | 20 | Rear electronic module (RHF/RH sliding/LH sliding/Liftgate door lock motors, Aux. air blend door motor, Aux. air mode door motor) |
| 9 | 10 | Cluster, Powertrain Control Module (PCM) relay (coil) |
| 10 | 15 | Heated backlite relay (coil), Speed control module, Anti-lock Brake System (ABS) module or IVD Module, Heated seat switch (if equipped), Heated seat module (if equipped), Cluster, Front temp blend door actuator, Brake shift interlock solenoid, PCM, PSD module, Reverse Sensing System (RSS), Front A/C control head, Steering wheel angle sensor (if equipped) |
| 11 | 15 | as of 2001: Electric Brake Controller, Brake Shift Interlock Solenoid, Rear Electronic Module |
| 10 | up to 2000: Electric Brake Controller, Brake Shift Interlock Solenoid, Rear Electronic Module | |
| 12 | 20 | Center high-mounted stop lamp, Trailer Tow Module (up to 2000) |
| 13 | 10 | Right rear turn lamp, Left stop lamp, Left rear park lamp |
| 14 | 10 | Autolamp Sensor, Transmission Overdrive Cancel Switch, Front Electronic Module, Compass Module, Electrochromatic Mirror, Power Sliding Door Overhead Console Switch |
| 15 | 20 | as of 2001: Console power point |
| 16 | 10 | Cluster, Rear Electronic Module (up to 2000) |
| 17 | 20 | Cigar lighter/Powerpoint, Datalink connector |
| 18 | 15 | as of 2001: Quarter Window Motors, RH window switch backlighting, RH lock switch backlighting, Master control switch (LH) backlighting, Radio, VCP, Liquid Crystal Display (LCD), Front electronic module |
| 10 | up to 2000: LH Quarter Window Motor, RH Quarter Window Motor, RH Window Switch Backlighting, RH Lock Switch Backlighting, Master Control Switch (LH) Backlighting, Radio | |
| 19 | 10 | Starter Interrupt Relay (coil) |
| 20 | — | — |
| 21 | — | — |
| 22 | 10 | Heated Mirrors |
| 23 | 20 | Body power point, Auxiliary blower relay #1 and #2 coils |
| 24 | — | — |
| 25 | 10 | Radio (Anti-theft) |
| 26 | 10 | Air bag module, Passenger air bag deactivated indicator, Passenger seat weight pressure sensor ECU |
| 27 | — | — |
| 28 | 10 | Cluster |
| 29 | 2 | 2003: Speed control deactivation switch |
| Relay | ||
| Relay 1 | Switched system power relay #4 | |
| Relay 2 | Accessory delay relay | |
| Relay 3 | Front blower motor relay | |
| Relay 4 | Switched system power relay #3 | |
| Relay 5 | Rear defrost relay | |
| Relay 6 | Auxiliary blower motor relay | |

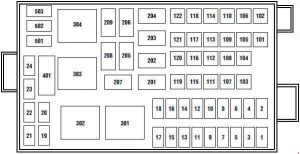

Fuse Box in the Engine Compartment
| Fuse | A | Circuit protected |
| 1 | 30 | Powertrain Control Module (PCM) |
| 2 | 10 | PCM, Front electronic module (FEM) |
| 3 | 10 | A/C compressor clutch |
| 4 | 25 | Horns, Horn relay (coil) |
| 5 | 15 | Fuel pump motor, PCM |
| 6 | 30 | Front wiper motor, Front wiper relay, Front washer pump, FEM |
| 7 | 25 | Rear wiper motor, Rear washer pump, Rear wiper relay (coil) |
| 8 | — | — |
| 9 | 15 | as of 2000: Right Headlamp (Low and High Beam) |
| 10 | 15 | as of 2000: Right front park lamp, Right front turn lamp, Right front cornering lamp, Right front auxiliary driving |
| 11 | 15 | as of 2000: Left front park lamp, Left front turn lamp, Left front cornering lamp, Left front auxiliary driving lamp |
| 12 | 15 | as of 2000: Left Headlamp (Low and High Beam) |
| 13 | 10 | as of 2001: Alternator field sense |
| 14 | 10 | as of 2000: Front Electronic Module (LH Door Lock Motor) |
| 15 | 20 | as of 2001: Trailer tow park lamps |
| 15 | 1999: Right Headlamp (Low and High Beam) | |
| 16 | 20 | as of 2001: Trailer tow turn lamps |
| 15 | 1999: Left Headlamp (Low and High Beam) | |
| 17 | — | — |
| 18 | — | — |
| 19 | 15 | AX4S transaxle, Vapor Management Valve (VMV), A/C clutch relay coil, EGR control solenoid, Engine fuel control H02S #11 sensor, Engine fuel control H02S #21 sensor, Catalyst monitor H02S #12 sensor, Catalyst monitor H02S #22 Sensor, Canister vent solenoid, Intake manifold runner control (as of 2001) |
| 20 | 15 | Ignition coil, Intake Air Control (IAC) valve, Fuel injectors, Mass Air Flow (MAF) sensor, Fuel pump relay coil, Intake manifold runner control, High-speed cooling fan relay coil, Low-speed cooling fan relay coil, PCM, Passive anti-theft receiver (as of 2001), Powertrain Control Module (up to 2000) |
| 21 | 10 | up to 1999: Front Electronic Module (LH Door Lock Motor) |
| 22 | 15 | up to 1999: Right Front Park Lamp, Right Front Turn Lamp, Right Front Cornering Lamp |
| 23 | 15 | up to 1999: Left Front Park Lamp, Left Front Turn Lamp, Left Front Cornering Lamp |
| 24 | — | — |
| 101 | 40 | Anti-lock Brake System (ABS) module or IVD Module |
| 102 | 40 | ABS module or IVD module |
| 103 | 40 | SSP4 Relay, SSP4 Relay (coil) |
| 104 | 30 | as of 2001: Left-hand power seat motors, Left-hand power lumbar motor, Driver seat memory module |
| 40 | up to 2000: LH Power Seat Motors, LH Power Lumbar Motor | |
| 105 | 30 | Starter motor solenoid, Ignition switch |
| 106 | 30 | Delayed accessory relay, Delayed accessory relay coil, FEM- right-hand front window motor |
| 107 | 50 | Engine cooling fan motors, Cooling fan dropping resistor |
| 108 | 40 | up to 1999: SSP2 Relay, SSP2 Relay (coil) |
| 109 | 30 | as of 2001: Heated seat modules |
| 40 | up to 1999: SSP1 Relay, SSP1 Relay (coil) | |
| 110 | 50 | Right-hand Power Sliding Door (PSD) module |
| 111 | 40 | as of 2001: Fuse junction box |
| 112 | 30 | Trailer Tow (as of 2001), Electric Brake Controller |
| 113 | 30 | FEM – left-hand window motor |
| 114 | 40 | SSP3 relay, SSP3 relay coil |
| 115 | 50 | Fuse junction box bus #2 |
| 116 | 30 | Heated backlight relay |
| 117 | 40 | Auxiliary blower relay coil, Auxiliary blower motor |
| 118 | 50 | LH Power Sliding Door Module |
| 119 | 30 | Fuse junction box bus #1 |
| 120 | 40 | Front blower relay coil, Front blower motor |
| 121 | 20 | Ignition switch, Rear defrost relay |
| 122 | 40 | Right-hand power seat motors, Right-hand power lumbar motor |
| Relay | ||
| 201 | — | |
| 202 | Front wiper ON/OFF relay | |
| 203 | Rear wiper relay | |
| 204 | A/C clutch relay | |
| 205 | Horn relay | |
| 206 | — | |
| 207 | Fuel pump relay | |
| 208 | — | |
| 209 | Front wiper HI/LO relay | |
| 301 | as of 2001: Starter interrupt relay up to 1999: SSP2 Relay |
|
| 302 | as of 2001: High-speed engine cooling fan relay up to 2000: Start Interrupt Relay |
|
| 303 | as of 2001: Low-speed engine cooling fan relay up to 1999: SSP1 Relay |
|
| 304 | PCM Relay | |
| 401 | — | |
| Diode | ||
| 501 | Powertrain Control Module Diode | |
| 502 | up to 2000: A/C Clutch Diode | |
| 503 | — | |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
