Ford Fusion (2010 – 2012) – fuse box diagram (American Version)

Ford Fusion (2010 – 2012) – fuse box diagram (American Version)

Year of production: 2010, 2011, 2012

Passenger Compartment Fuse Box

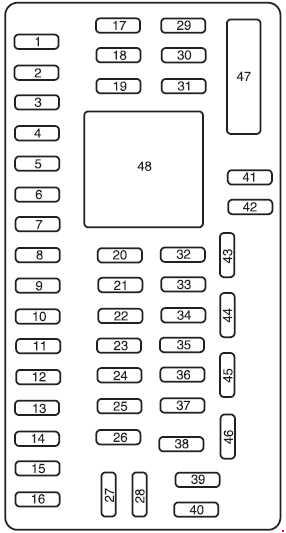

Ford Fusion – fuse box diagram – passenger compartment fuse box
Ford Fusion – fuse box diagram – passenger compartment fuse box
Number Ampere ratting [A] Description
1 30 Driver smart window motor
2 15 Brake on/off switch, Center high-mount stop lamp
3 15 Hybrid: HEV battery fan
4 30 Hybrid (2010-2011): 110V Inverter
2012: Passenger smart window motor
5 10 Keypad illumination, Brake shift interlock
6 20 Turn signal lamps, Stop lamps
7 10 Low beam headlamps (left)
8 10 Low beam headlamps (right)
9 15 Courtesy lights
10 15 Backlighting, Puddle lamps
11 10 AWD module
12 7,5 Power outside mirrors
13 5 SYNC® module
14 10 Electronic finish panel (EFP) radio and climate control buttons module. Navigation display, Center information display, GPS module
15 10 Climate control
16 15 Not used (spare)
17 20 Door locks, Trunk release
18 20 Heated seats
19 25 Amplifier
20 15 On-board diagnostic connector
21 15 Fog lamps
22 15 Front sidemarker lamps, Park lamps, License plate lamp
23 15 High beam headlamps
24 20 Horn
25 10 Demand lamps/power saver relay
26 10 Instrument cluster battery power
27 20 Ignition switch
28 5 Radio crank sense circuit
29 5 Instrument cluster ignition power
30 5 Not used (spare)
31 10 Not used (spare)
F32 10 Restraint control module
33 10 Not used (spare)
34 5 Not used (spare)
35 10 Reverse sensing system, Blind spot information system, Heated seats, Rearview camera, 110V inverter, AWD
36 5 Passive Anti-Theft Sensor (PATS) transceiver
37 10 Hybrid: Humidity senso
38 20 Subwoofer amplifier
39 20 Radio
40 20 Not used (spare)
41 15 Automatic dimming mirror, Moon roof, Compass, Ambient lighting
42 10 Electronic stability control, Electronic power assist steering
43 10 Rain Sensor
44 10 Fuel diode/Powertrain control module
45 5 Heated backlight and blower relay coil, Wiper washer
46 7,5 Occupant classification sensor (OCS) module, Passenger airbag off lam
47 30 Circuit Breaker:Power windows
Relay
48 Delayed accessory relay

Engine Compartment Fuse Box (except Hybrid)

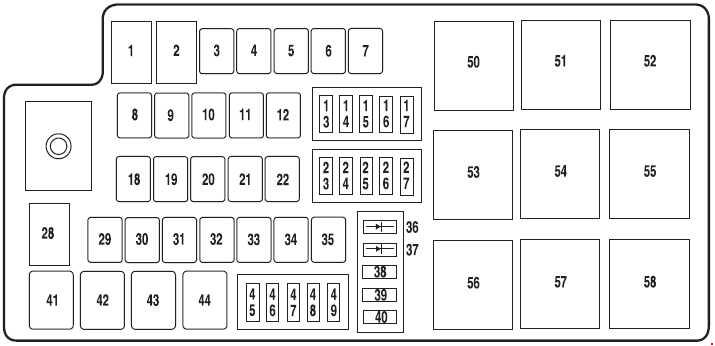

Ford Fusion – fuse box diagram – engine compartment fuse box (except Hybrid)
Ford Fusion – fuse box diagram – engine compartment fuse box (except Hybrid)
Number Ampere ratting [A] Description
1 50 Electronic power assist steering B+
2 50 Electronic power assist steering B+
3 40 Powertrain control module (PCM) (relay 57 power)
4
5 30 Starter motor (relay 55 power)
6 40 Rear defrost (relay 53 power)
7
8 40 Anti-lock brake system (ABS) pump
9 20 Wiper washer
10 30 ABS valve
11
12
13
14
15
16 15 Transmission module (3.5L)
17 10 Alternator
18
19
20
21
22 20 Console power point
23 10 PCM – Keep alive power, Canister vent
24
25 10 A/C clutch (relay 43 power)
26
27
28 60 Cooling fan motor (2.5L & 3.0L)
80 Cooling fan motor (3.5L)
29 20 Front power point
30 30 Fuel relay (relay 54 power)
31 30 Passenger power seat
32 30 Driver power seat
33 20 Moon roof motor power feed
34
35 40 Front A/C blower motor (relay 52 power)
38 10 Heated side mirrors
39
40
45 15 Injectors
46 15 PCM
47 10 General powertrain components, A/C clutch relay, Backup lamps
48 15 Ignition coils
15 Emissions related powertrain components (2.5L & 3.5L)
49 20 Emissions related powertrain components (3.0L)
Diode
36 1 Fuel pump
37 1 One-touch start
Relay
41 Backup lamps
42
43 A/C clutch
44
50
51
52 Blower motor relay
53 Rear defrost relay
54 Fuel relay
55 Starter relay
56
57 PCM relay
58

Engine Compartment Fuse Box (only Hybrid)

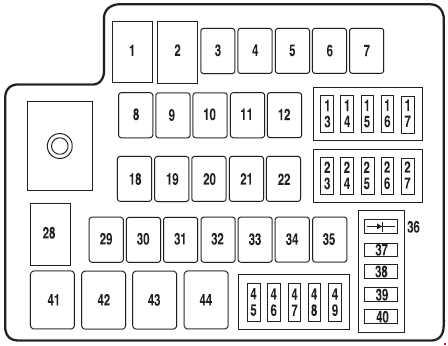

Ford Fusion – fuse box diagram – engine compartment fuse box (only Hybrid)
Ford Fusion – fuse box diagram – engine compartment fuse box (only Hybrid)
Number Ampere ratting [A] Description
1 50 Electronic power assist steering B+
2 50 Electronic power assist steering B+
3 40 Powertrain control module (aux relay 5 power)
4
5
6 40 Rear defrost (aux relay 4 power)
7 40 2010-2011: Vacuum pump (aux relay 6 power)
30 2012: Vacuum pump (aux relay 6 power)
8 50 Brake system controller pump
9 20 Wiper washer
10 30 Brake system controller valves
11
12
13 15 Motor electronics coolant/heater pump (relay 42 & 44 power)
14
15
16
17 10 HEV high voltage battery module
18 30 2011-2012: 110V electrical outlet
19
20
21
22 20 Console power point
23 10 Powertrain control module/ Transmission control module keep-alive power, Canister vent
24
25
26
27
28 60 Cooling fan motor
29 20 Front power point
30 30 Fuel relay (relay 43 power)
31 30 Passenger power seat
32 30 Driver power seat
33 20 Moon roof
34
35 40 Front A/C blower motor (aux relay 3 power)
36 1 Diode: Fuel pump
37 5 Vacuum pump monitoring
38 10 Heated side mirrors
39 10 Transmission control module
40 10 Powertrain control module
45 15 Injectors
46 15 Coil on plugs
47 10 Powertrain control module (general): Heater pump, Motor electronics coolant pump relay coils, DC/DC converter, Back-up lamps, Brake controller
48 20 HEV high voltage battery module, Fuel pump relay
49 15 Powertrain control module (emissions related)
Relay
41 Backup lamps
42 Heater pump
43 Fuel pump
44 Motor electronics coolant pump

Auxiliary relay box (only Hybrid)

The auxiliary relay box is located in front of the radiator in the engine compartment.

Ford Fusion – fuse box diagram – auxiliary relay box (only Hybrid)
Ford Fusion – fuse box diagram – auxiliary relay box (only Hybrid)
Number Description
1
2
3 Blower motor
4 Rear window defogger
5 Powertrain control module
6 Vacuum pump cut-off
7 Vacuum pump

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
