Ford Kuga (2012 – 2018) – fuse box diagram
Year of production: 2012, 2013, 2014, 2015, 2016, 2017, 2018

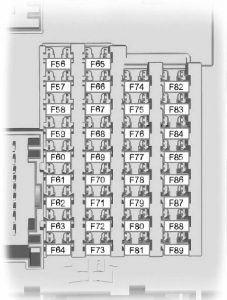

Passenger compartment fuse panel
| Fuse | Ampere rating (A) | Circuits protected |
| F56 | 20 | Fuel pump |
| F57 | — | Not used. |
| F58 | — | Not used. |
| F59 | 5 | Passive anti-thef transceiver |
| F60 | 10 | Interior light, Driver door switch pack, Glove box lamp. Overhead console switch bank |
| F61 | — | Not used |
| F62 | 5 | Autowipers. Auto-dimming interior mirror. |
| F63 | 10 | Adaptive cruise control – front sensing module. |
| F64 | — | Not used |
| F65 | 10 | Liftgate release. |
| F66 | — | Not used. |
| F67 | 7,5 | SYNC module. Front control/display interface module. Global positioning system module. |
| F68 | 15 | Electric steering column lock. |
| F69 | 5 | Instrument cluster |
| F70 | — | Not used |
| F71 | 10 | Heating control head – manual air conditioning. Duel electronic automatic temperature control. |
| F72 | 7,5 | Steering wheel module |
| F73 | 7,5 | Data link connector. Battery backup sounder. |
| F74 | 15 | High beam. |
| F75 | 15 | Rear fog lamp |
| F76 | 10 | Reversing lamp |
| F77 | 20 | Windshield washer supply |
| F78 | 5 | Ignition switch. Push button ignition switch. |
| F79 | 15 | Audio unit. Navigation DVD player. Touch screen. Hazard flasher switch. Door lock switch. |
| F80 | 20 | Moonroof |
| F81 | 5 | Radio frequency receiver. Interior motion sensor. |
| F82 | 20 | Windshield washer pump. |
| F83 | 20 | Central locking system. |
| F84 | — | Not used |
| F85 | 7,5 | Ignition switch. |
| F86 | 10 | Air bag module. Occupant classification system. Passenger air bag deactivation indicator. |
| F87 | — | Not used |
| F88 | — | Not used |
| F89 | — | Not used |

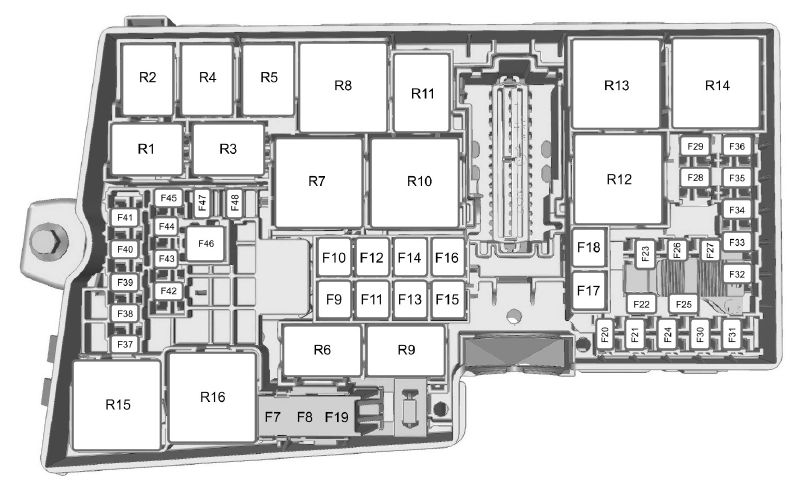

Engine compartment fuse box
| Fuse | Ampere rating (A) | Protected circuits |
| F1 | — | Not used. |
| F2 | — | Not used. |
| F3 | — | Not used. |
| F4 | — | Not used. |
| F5 | — | Not used. |
| F6 | — | Not used. |
| F7 | 40 ** | Anti-lock brake system. Electronic stability program. |
| F8 | 30 ** | Electronic stability program. |
| F9 | 20 ** | Headlamp washer. |
| F10 | 40 ** | Blower motor. |
| F11 | 30 ** | Voltage quality module. Body control module. |
| F12 | 30 ** | Powertrain control module. |
| F13 | 30 ** | Starter relay. |
| F14 | 40** | Right-hand heated windshield element. |
| F15 | 20 ** | Cigar lighter. Auxiliary power points. |
| F16 | 40 ** | Left-hand heated windshield element. |
| F17 | 20 ** | Auxiliary heater. |
| F18 | — | Not used |
| F19 | 5 * | Anti-lock brake system. Electronic stability program. |
| F20 | 15 * | Horn. |
| F21 | 5 * | Brake lamps. |
| F22 | 15 * | Battery monitor system. |
| F23 | 5 * | Relay coils. |
| F24 | 5 * | Lighting control. |
| F25 | — | Not used. |
| F26 | 5 * | Engine control relay coil feed – vehicles with a gasoline engine |
| F26 | 15 * | Engine control relay coil feed – vehicles with a diesel engine. Transmission control module – vehicles with a diesel engine. |
| F27 | 15 * | Air conditioning clutch. |
| F28 | 5 * | Adaptive cruise control – vehicles with start-stop. |
| F29 | 25 * | Rear window defroster. |
| F30 | — | Not used. |
| F31 | — | Not used |
| F32 | 15 * | Engine control module. |
| F33 | 10 * | Engine control module. |
| F34 | 10 * | Engine control module. |
| F35 | 15 * | Engine control module. |
| F36 | 5 * | Not Active grill shutters. |
| F37 | 5 * | Passenger airbag deactivation indicator feed. |
| F38 | 5 * | Engine control module. Transmission control module. |
| F39 | 5 * | Headlamps. Headlamp leveling. |
| F40 | 5 * | Electronic power assist steering. |
| F41 | 20 ** | Body control module. |
| F42 | 15 * | Rear window wiper. |
| F43 | 15 * | Headlamps. |
| F44 | 5 * | Adaptive cruise control – vehicles without start-stop. |
| F45 | 10 * | Heated washer nozzle. |
| F46 | 40 ** | Autowipers |
| F47 | — | Not used. |
| F48 | 15 * | Diesel particulate filter vaporizer. |
| * Mini fuses | ||
| ** Cartidge fuses | ||
Relays in the compartment fuse box
| Relay | Protected circuits |
| R1 | Not used |
| R2 | Horn. |
| R3 | Diesel particulate filter vaporizer. |
| R4 | Not used |
| R5 | Not used. |
| R6 | Not used. |
| R7 | Heated windshield |
| R8 | Not used |
| R9 | Headlamp washer. |
| R10 | Starter motor. |
| R11 | Air conditioning clutch. |
| R12 | Cooling fan. |
| R13 | Blower motor. |
| R14 | Engine control module. |
| R15 | Heated rear window. |
| R16 | Ignition. |

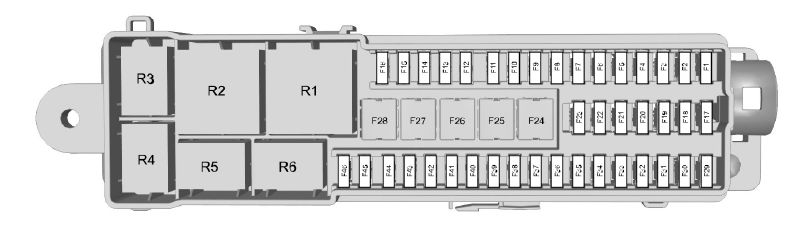

Luggage compartment fuse panel
| Fuse | A | Protected circuits |
| F1 | 5 | Hands-free liftgate actuation module. |
| F2 | 10 | Keyless vehicle module |
| F3 | 5 | Keyless vehicle door handles |
| F4 | 25 | Front left door control unit. |
| F5 | 25 | Front right door control unit. |
| F6 | 25 | Rear left door control unit. |
| F7 | 25 | Rear right door control unit. |
| F8 | — | Not used. |
| F9 | 25 | Driver seat motor |
| F10 | — | Not used. |
| F11 | 5 | Rear ignition relay coil feed. |
| F12 | 10 | Climate control – vehicles with start-stop. |
| F13 | 5 | Instrument cluster – vehicles with start-stop. |
| F14 | 7,5 | Information and entertainment display. SYNC module. Global positioning system module – vehicles with start-stop. |
| F15 | 15 | Audio unit – vehicles with start-stop. |
| F16 | — | Not used |
| F17 | — | Not used |
| F18 | — | Not used |
| F19 | — | Not used. |
| F20 | — | Not used |
| F21 | — | Not used |
| F22 | — | Not used |
| F23 | — | Not used |
| F24 | 30 | AC/DC auxiliary power points. |
| F24 | 20 | Rear auxiliary power points. |
| F25 | 25 | Elektryczne otwieranie/zamykanie drzwi tyłu nadwozia. |
| F26 | 40 | Accessories. Trailer tow module. |
| F27 | 20 | Luggage compartment auxiliary power points. |
| F28 | — | Not used |
| F29 | 5 | Blind spot monitor. Front camera sensor. Adaptive cruise control. Rear view camera with park assist. Voltage quality module ignition signal. |
| F30 | 5 | Parking aid button. |
| F31 | — | Not used |
| F32 | 5 | DC/AC auxiliary power point ignition signal. |
| F33 | — | Not used |
| F34 | 20 | Driver seat heater. |
| F35 | 20 | Passenger seat heater. |
| F36 | — | Not used |
| F37 | — | Not used |
| F38 | — | Not used |
| F39 | — | Not used |
| F40 | — | Not used |
| F41 | — | Not used |
| F42 | — | Not used |
| F43 | — | Not used |
| F44 | — | Not used |
| F45 | — | Not used |
| F46 | 10 | Blind spot monitor. Front camera sensor. Adaptive cruise control. Rear view camera with park assist – vehicles with start-stop. |
Relay in the luggage compartment fuse panel
| Relay | Protected circuits |
| R1 | Ignition switch. |
| R2 | Not used |
| R3 | Not used |
| R4 | Not used |
| R5 | Not used |
| R6 | Not used |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
