Ford Police Interceptor Sedan (2015) – fuse box diagram
Year of production: 2015

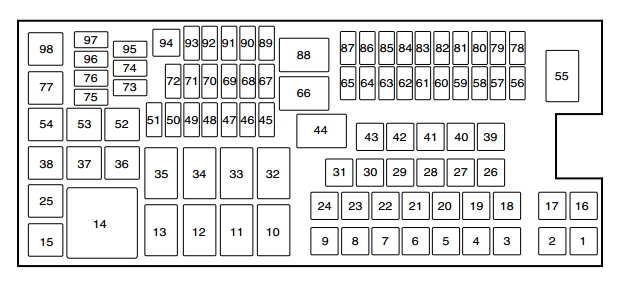

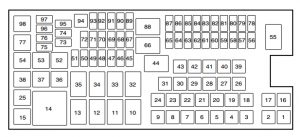

Power distribution box
| Fuse or relay number | Ampere rating [A] | Protected componenst |
| 1 | 50** | Rear power point tap feed 1 |
| 2 | 50** | Rear power point tap feed 2 |
| 3 | — | Not used |
| 4 | 30** | Wiper motor relay |
| 5 | 50** | Anti-lock brake system pump |
| 6 | 40** | Center console 6-way B+ feed 2 |
| 7 | — | Not used |
| 8 | 20** | PTU Cooler Pump |
| 9 | — | Not used |
| 10 | — | PTU Cooler Pump Relay |
| 11 | — | Rear window defroster relay, Mirror relay (Sedan) |
| 12 | — | Run/start relay |
| 13 | — | Starter motor relay |
| 14 | — | Engine cooling fan #2 high speed relay |
| 15 | — | Fuel pump relay |
| 16 | 40** | Center console 6 way B+ feed 3 |
| 17 | — | Not used |
| 18 | 40** | Front blower motor relay |
| 19 | 30** | Starter relay |
| 20 | 20** | Center console power point #2 |
| 21 | — | Not used |
| 22 | — | Not used |
| 23 | 30** | Driver power seat |
| 24 | 40** | Police run/start relay |
| 25 | — | Not used |
| 26 | 40** | Rear window defrost relay |
| 27 | 20** | Center console power point #1 |
| 28 | — | Not used |
| 29 | 40** | Engine cooling fan #1 high speed power, Engine cooling fan #1 and #2 low speed primary fuse |
| 30 | 40** | Engine cooling fan #2 high speed fuse |
| 31 | 25** | Engine cooling fan #1 and #2 low speed secondary fuse |
| 32 | — | Auxiliary blower motor relay (Utility) |
| 33 | — | Engine cooling fan #1 and #2 low speed relay #2 |
| 34 | — | Blower motor relay |
| 35 | — | Engine cooling fan #1 high speed relay, Engine cooling fan #1 and #2 low speed relay #1 |
| 36 | — | Not used |
| 37 | — | Right-hand trailer tow stop/turn lamps relay (Utility) |
| 38 | — | Not used |
| 39 | 40** | Auxiliary blower motor (Utility) |
| 40 | 40** | Center console 6-way B+ feed 1 |
| 41 | — | Not used |
| 42 | 30** | Passenger seat (Sedan) |
| 43 | 40** | Anti-lock brake system valves (Utility) |
| 20** | Anti-lock brake system valves (Sedan) | |
| 44 | — | Rear washer relay (Utility) |
| 45 | — | Not used |
| 46 | — | Not used |
| 47 | — | Not used |
| 48 | — | Not used |
| 49 | — | Not used |
| 50 | 15* | Heated mirrors |
| 51 | — | Not used |
| 52 | — | Not used |
| 53 | — | Left-hand trailer tow stop/turn lamps relay (Utility) |
| 54 | — | Not used |
| 55 | — | Wiper relay |
| 56 | — | Not used |
| 57 | — | Not used |
| 58 | 10* | Alternator A-line |
| 59 | 10* | Brake on/off switch |
| 60 | — | Not used |
| 61 | — | Not used |
| 62 | 10* | Air conditioner clutch relay |
| 63 | 15* | Trailer tow stop/turn lamps (Utility) |
| 64 | 15* | Rear wipers (Utility) |
| 65 | 30* | Fuel pump relay |
| 66 | — | Powertrain control module relay |
| 67 | 20* | Oxygen sensor heater, Mass airflow sensor, Variable camshaft timing solenoid valve, Canister vent solenoid, Canister purge solenoid |
| 68 | 20* | Ignition coils |
| 69 | 20* | Vehicle power #1 (Powertrain control module) |
| 70 | 15* | (Sedan) — Air conditioner variable compressor control, Fan control relay coils, Variable air conditioning compressor, Auxiliary transmission warm-up, Turbo charge waste-gate control, Electronic compressor bypass valve, All-wheel drive module, Positive crankcase ventilation heater |
| 10* | (Utility) — same as above | |
| 71 | — | Not used |
| 72 | — | Not used |
| 73 | 20* | Center console run/start feed #1 |
| 74 | 20* | Center console run/start feed #2 |
| 75 | — | Diode |
| 76 | — | Not used |
| 77 | — | Trailer tow park lamps relay (Utility) |
| 78 | — | Not used |
| 79 | — | Not used |
| 80 | 25* | Police rear flasher / Package tray lighting access circuit (Sedan) |
| 81 | 20* | Spot lights |
| 82 | 15* | Rear washer (Utility) |
| 83 | — | Not used |
| 84 | 20* | Trailer tow park lamps (Utility) |
| 85 | — | Not used |
| 86 | 7,5* | Powertrain control module keep-alive power and relay, Canister vent solenoid |
| 87 | 5* | Run/start relay coil |
| 88 | — | Run/start relay |
| 89 | 5* | Front blower relay coil, Electrical power assist steering module |
| 90 | 10* | Powertrain control module run/start |
| 91 | — | Not used |
| 92 | 10* | Anti-lock brake system module |
| 93 | 5* | Rear window defroster relay, Run/start relay, Trunk release relay |
| 94 | 30** | Passenger compartment fuse panel run/start |
| 95 | 2* | Center console start feed |
| 96 | — | Not used |
| 97 | — | Not used |
| 98 | — | Air conditioner clutch relay |
| *Mini Fuses**Cartridge Fuses | ||

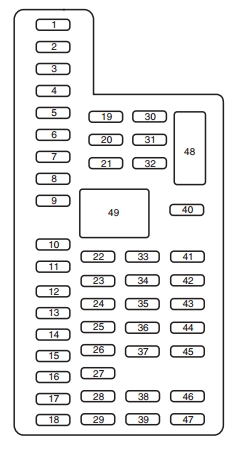

Passenger compartment fuse panel
The fuse panel is located under the instrument panel to the left of the steering wheel.
| Fuse or relay number | Ampere rating [A] | Protected components |
| 1 | 30 | Driver side front window, Rear windows (Sedan) |
| 2 | 15 | Driver seat switch, 14-way B+ feed #1 |
| 3 | 30 | Not used (spare) |
| 4 | 10 | Demand lamps battery saver relay, Glove box lamp, Visor lamps (Utility), Task lamp |
| 5 | 20 | 14-way B+ feed #3 |
| 6 | 5 | Not used (spare) |
| 7 | 7,5 | Not used (spare) |
| 8 | 10 | Not used (spare) |
| 9 | 10 | SYNC, Displays, Electronic finish panel, Radio frequency transceiver module (Sedan) |
| 10 | 10 | Run accessory relay |
| 11 | 10 | Cluster (Utility) |
| 12 | 15 | Backlighting LED, Interior lighting, Backlighting feed |
| 13 | 15 | Right rear stop/turn, Right turn (Sedan), Right rear police fuse/relay box |
| 14 | 15 | Left rear stop/turn, Left turn (Sedan), Left rear police fuse/relay box |
| 15 | 15 | Stop lamp, Backup lamp, High-mounted stop lamp (Utility) |
| 16 | 10 | Right front low beam |
| 17 | 10 | Left front low beam |
| 18 | 10 | Brake shift interlock, Powertrain control module wake-up |
| 19 | 20 | Police B+ #8 access circuit center console, 14-way B+ feed #2 |
| 20 | 20 | All lock motor relay, Driver lock motor relay |
| 21 | 10 | Not used (spare) |
| 22 | 20 | Horn relay |
| 23 | 15 | Steering wheel control module logic, Instrument cluster, Headlamp switch (Utility) |
| 24 | 15 | Steering wheel control module, Datalink |
| 25 | 15 | Liftgate release (Utility) |
| 26 | 5 | Ignition switch (Sedan), Frequency transceiver module (Utility) |
| 27 | 20 | Not used (spare) |
| 28 | 15 | Ignition switch (Utility) |
| 29 | 20 | Radio, GPS module |
| 30 | 15 | Front park lamps |
| 31 | 5 | Brake signal for police equipment |
| 32 | 15 | Master window/mirror switch, Lock switch illumination, Police console inline delayed accessory feed, Delayed accessory feed |
| 33 | 10 | Occupant classification module (Utility) |
| 34 | 10 | Reverse park aid module, Blind spot monitor module, Rear video camera |
| 35 | 5 | Motorized humidity sensor, Overdrive cancel switch (Low gear switch feed), Column shift – low gear, Headlamp switch (Utility) |
| 36 | 10 | Not used (spare) |
| 37 | 10 | Restraints control module (Utility) |
| 38 | 10 | Auto-dimming mirror, Rear camera display mirror |
| 39 | 15 | High beam headlamp shutters |
| 40 | 10 | Rear park lamps, License plate lamps (Utility) |
| 41 | 7,5 | Occupant classification sensor, Restraint control module (Utility), Brake shift interlock (Utility) |
| 42 | 5 | Police 4-button steering wheel control module |
| 43 | 10 | Not used (spare) |
| 44 | 10 | Not used (spare) |
| 45 | 5 | Not used (spare) |
| 46 | 10 | Climate control module |
| 47 | 15 | Not used (spare) |
| 48 | 30A Circuit Breaker | Window switches |
| 49 | Relay | Delayed accessory |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
