Ford Ranger (1993 – 1997) – fuse box diagram
Year of production: 1993, 1994, 1995, 1996, 1997

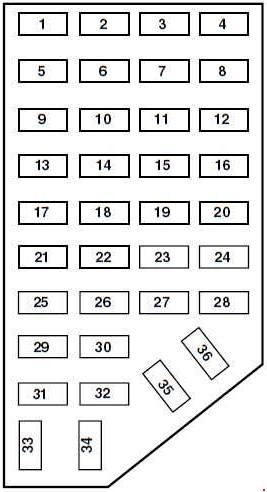

Passenger Compartment Fuse Panel
| Number | Ampere rating [A] | Description |
| 1 | 7,5 | Power Mirror |
| 2 | — | — |
| 3 | 15 | Parking lamp |
| 4 | 10 | Left Headlamp |
| 5 | 10 | Data Link Connector (DLC) |
| 6 | 7,5 | Air Bag System, Blower Relay, EATC |
| 7 | 7,5 | Illumination Switches |
| 8 | 10 | Right Headlamp, Foglamp Relay, DRL |
| 9 | 10 | Anti-lock System |
| 10 | 7,5 | Speed Control, Generic Electronic Module (GEM), A/C System, Brake Interlock |
| 11 | 7,5 | Instrument Cluster, Warning Lamps |
| 12 | 10 | Front Wash System, Power Windows |
| 13 | 15 | PCM System, Stoplamps, AWD, Anti-lock System, Speed Control |
| 14 | 20 | Anti-Lock System |
| 10 | Anti-Lock System | |
| 15 | 7,5 | Air Bag, Alternator |
| 16 | 30 | Front Wiper |
| 17 | 25 | Cigar Lighter |
| 15 | Cigar Lighter | |
| 18 | 15 | A/C System |
| 19 | 25 | PCM System, Ignition Coil |
| 20 | 7,5 | Anti-Theft, Generic Electronic Module (GEM), Radio |
| 21 | 15 | Hazard Lamps |
| 22 | 10 | Turn Signals |
| 23 | — | — |
| 24 | 10 | Starter, Anti-Theft |
| 25 | 7,5 | Speedometer, Generic Electronic Module (GEM) |
| 26 | 10 | 4R44E/4R55E/4R7OW/5R55E Overdrive, DRL System, Backup Lamps |
| 27 | 10 | Under Hood Lamp, Map Lamps, Glove Box Lamp, Dome Lamp, Visor Lamps, 4×4 System |
| 28 | 7,5 | Generic Electronic Module (GEM) |
| 29 | 10 | Audio System |
| 30 | — | — |
| 31 | — | — |
| 32 | — | — |
| 33 | 15 | Headlamps, Daytime Running Lamps (DRL) Module, Instrument Cluster |
| 34 | — | — |
| 35 | — | — |
| 36 | — | — |

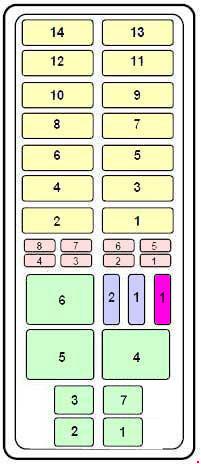

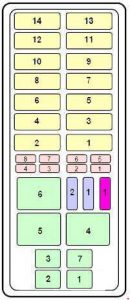

Engine Compartment Fuse Box
| Number | Ampere rating [A] | Description |
| Maxi fuses | ||
| 1 | — | — |
| 2 | 30 | PCM Power |
| 3 | 20 | Fuel System, Anti-Theft System |
| 4 | 20 | Headlamps |
| 5 | 30 | ABS system |
| 6 | 30 | ABS system |
| 7 | — | — |
| 8 | 20 | Parking Lamps |
| 9 | 40 | Blower Motor |
| 10 | 20 | Power Locks, Power Windows, Power Seat |
| 11 | 20 | PCM Memory, Horn |
| 12 | — | — |
| 13 | 50 | Instrument Panel Fuse |
| 14 | 50 | Ignition |
| Mini fuses | ||
| 1 | 20 | JBL System |
| 2 | 30 | Power Point |
| 3 | 15 | HEGO |
| 4 | 20 | 4 Wheel System |
| 10 | Air Bag System | |
| 5 | 15 | PCM Memory Power |
| 6 | 15 | Alternator system |
| 7 | 10 | Air Bag System |
| 20 | 4 Wheel System | |
| 8 | 15 | DRL/Fog Lamps/Off-Road Lamps |
| Relay | ||
| 1 | Wiper Run Relay | |
| 2 | Horn Relay | |
| 3 | Fog Lamp Relay | |
| 4 | WOT A/C Relay | |
| 5 | PCM Power Relay | |
| 6 | Fuel Pump Relay | |
| 7 | Wiper HI/LO Relay | |
| Diode | ||
| 1 | ABS diode | |
| 2 | PCM diode | |
| Resistor | ||
| 1 | RABS Resistor | |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
