Ford Ranger T6 (2011 – 2018) – fuse box diagram
Year of production: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

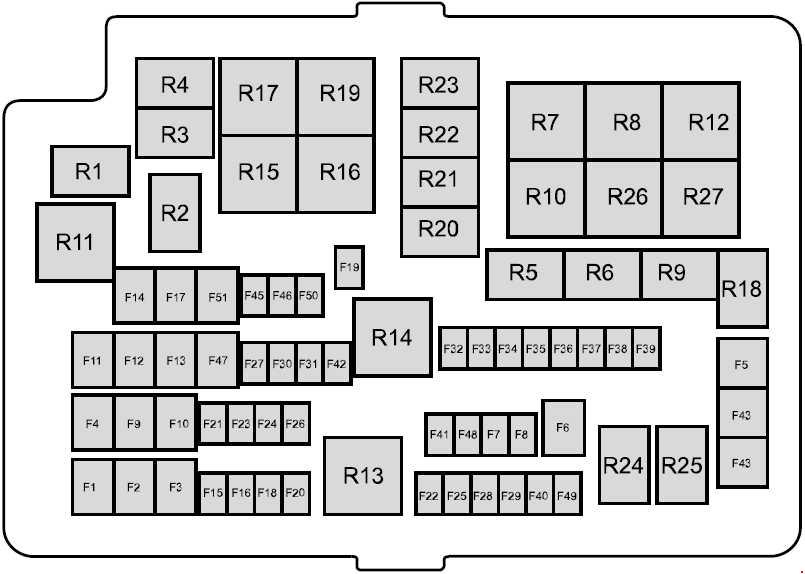

Engine Compartment Fuse Box (Type 1)
| Fuse | Ampere rating [A] | Description |
| 1 | 60 | Passenger compartment fuse box supply (Battery) |
| 2 | 60 | Passenger compartment fuse box supply (Battery) |
| 3 | 50 | Petrol: Engine cooling fan |
| 60 | Diesel: Glow plug control module | |
| 4 | 40 | Anti-lock brake system module |
| 5 | 30 | Power windows (front and rear) |
| 6 | 25 | 2011-2014: Four wheel drive (4WD) motor ground |
| 7 | — | — |
| 8 | — | — |
| 9 | 20 | Power seats |
| 10 | 20 | 2015-2018: Auxiliary power socket instrument panel, console top |
| 25 | 2011-2014: Electric windows (front) | |
| 11 | 30 | Blower motor |
| 12 | 25 | Four wheel drive (4WD) motor power |
| 13 | 20 | Starter solenoid |
| 14 | 20 | Heated rear window |
| 15 | 10 | Petrol: Flex-fuel pump |
| 20 | Diesel (2013-2016): Vaporizer glow plug | |
| 15 | Diesel (2011-2012 and 2017-2018): Vaporizer glow plug | |
| 16 | 10 | Air conditioning clutch |
| 17 | 25 | Power windows (front) |
| 18 | 25 | Windscreen wiper motor |
| 19 | 25 | 2011-2014: Windscreen wiper motor ground |
| 20 | 20 | Cigar lighter |
| 21 | 15 | Horn |
| 22 | 15 | 2011-2016: Fuel injectors, flex-fuel valve |
| 10 | 2017-2018: Fuel injectors, flex-fuel valve. | |
| 23 | 10 | Differential lock solenoid |
| 24 | 20 | 2011-2014: Auxillary power socket (front console) |
| 25 | 15 | Ignition coils, temperature and mass air flow sensor, glow plug module, vacuum control valve (VCV), electronic vacuum regulator valve (EVRV) |
| 26 | 7,5 | Electronic control module (ECM) |
| 27 | 10 | Transmission control module (TCM) |
| 28 | 10 | Heated exhaust gas oxygen, universal heated exhaust gas oxygen-sensor, relay coils |
| 29 | 15 | Electronic control module (ECM) |
| 30 | 5 | 2015-2018: Battery monitoring sensor |
| 15 | 2011-2014: Battery monitoring sensor | |
| 31 | 20 | Auxiliary power socket (rear console) |
| 32 | 5 | Air conditioning pressure switch |
| 33 | 10 | Transmission control module (TCM) |
| 34 | 5 | 2014-2018: Crew chief module 2011-2013: PTC heater (where fitted) |
| 35 | 20 | Passenger compartment fuse box supply (Ignition) |
| 36 | 5 | Anti-lock brake system module |
| 37 | 10 | Headlamp leveling |
| 38 | 20 | 2011-2014: Heated seat |
| 39 | 10 | Power mirrors |
| 40 | 10 | Vapourizer pump |
| 41 | 10 | Heated mirrors |
| 42 | 10 | Alarm horn |
| 43 | 30 | 2011-2014: Heated windscreen (right) |
| 44 | 30 | 2011-2014: Heated windscreen (left) |
| 45 | 25 | Anti-lock brake system module |
| 46 | 20 | 2011-2014: Auxillary power socket (bedliner (floor console)) |
| 20 | 2015-2018: Battery isolator | |
| 47 | 40 | Trailer tow module |
| 48 | — | — |
| 49 | — | — |
| 50 | 5 | Ignition relay, relay coils |
| 51 | 20 | 2011-2018: Trailer Tow (12/13pin Batt feed / Permanent Live) |
| 30 | 2011-2014: Electric windows (rear) | |
| Relay |
||
| R1 | Key interlock |
|
| R2 | Wiper on or off | |
| R3 | Horn | |
| R4 | Air conditioning clutch | |
| R5 | Differential lock | |
| R6 | Wiper Hi or Lo | |
| R7 | Engine cooling fan low | |
| R8 | Engine cooling fan high | |
| R9 | Flex-fuel pump, vaporizer glow plug | |
| R10 | Heated rear window | |
| R11 | 2011-2014: Heated windscreen | |
| R12 | — | |
| R13 | Electronic control module (ECM) power hold | |
| R14 | Ignition | |
| R15 | 4WD motor 2 (clockwise) | |
| R16 | 4WD motor 1 (counter clockwise) | |
| R17 | 4WD motor | |
| R18 | Security horn | |
| R19 | Starter | |
| R20 | — | |
| R21 | — | |
| R22 | — | |
| R23 | — | |
| R24 | — | |
| R25 | — | |
| R26 | Blower motor | |
| R27 | Power seat | |
Passenger Compartment Fuse Box – Type 1
| Number | Ampere rating [A] | Description |
| 56 | 20 | Fuel pump |
| 57 | — | — |
| 58 | — | — |
| 59 | 5 | Passive anti-theft system (PATS) |
| 60 | 10 | Interior lamp, driver’s door switch pack, mood lights, puddle lights, automatic shifter, footwell lamp |
| 61 | — | — |
| 62 | 5 | Rain sensor module |
| 63 | 5 | Tachograph |
| 64 | — | — |
| 65 | — | — |
| 66 | 20 | Driver’s door unlock, central double locking |
| 67 | 5 | Stop lamp switch |
| 68 | — | — |
| 69 | 5 | Instrument cluster, integrated control module (ICP), tracking and blocking module |
| 70 | 20 | Central locking |
| 71 | 5 | Air conditioning |
| 72 | 7,5 | Alarm horn |
| 73 | 5 | On-board diagnostics II |
| 74 | 20 | Main beam |
| 75 | 15 | Front fog lamps |
| 76 | 10 | Reversing lamp, rear view mirror |
| 77 | 20 | Washer pump |
| 78 | 5 | Ignition switch |
| 79 | 15 | Radio, Audio signal DIN, FSAO audio, multi-function display |
| 80 | 20 | Multi-function display, Hi audio, bluetooth audio (2015-2018), brake valve closing (BVC) module (2011-2014) |
| 81 | 5 | Interior motion sensor |
| 82 | 20 | Washer pump ground |
| 83 | 20 | Central locking ground |
| 84 | 20 | Driver’s door unlock, central double locking ground |
| 85 | 7,5 | Instrument cluster, parking aid module, rearview camera, manual air conditioning, rear view mirror, tracking and blocking module |
| 86 | 10 | Restraint system, passenger air-bag deactivation indicator |
| 87 | 7,5 | Tachograph |
| 88 | — | — |
| 89 | — | — |

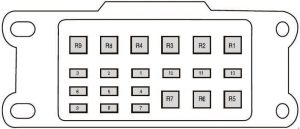

Auxiliary Fuse Box
| Fuse/Relay location | Ampere rating [A] | Description |
| 1 | 25 | Driving Light |
| 2 | 15 | Position lamp |
| 3 | 10 | LED beacon |
| 4 | 15 | Work lights |
| 5 | 20 | Spare |
| 6 | 20 | Power point |
| 7 | 15 | Reversing lamp |
| 8 | 15 | Direction indicators, stop lamp |
| 9 | 15 | Crew chief |
| 10 | 5 | Disable fuse (isolator ground) |
| 11 | — | — |
| 12 | — | — |
| Relay | ||
| R1 | Work lights | |
| R2 | LED beacon | |
| R3 | Spare | |
| R4 | Position lamp | |
| R5 | Direction indicator (left) | |
| R6 | Direction indicator (right) | |
| R7 | Stop lamp | |
| R8 | — | |
| R9 | — | |

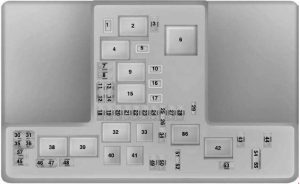

Engine Compartment Fuse Box (Type 2)
| Fuse | Ampere rating [A] | Description |
| 1 | 25 | Smart wiper module |
| 3 | 15 | Rain sensor |
| 5 | 20 | Auxiliary power point (Rear of centre console) |
| 7 | 20 | Powertrain control module |
| 8 | 20 | Variable intake manifold, Powertrain control module, Evaporative emission canister purge valve, Heated oxygen sensor, Catalyst monitoring sensor (CMS) |
| 10 | 20 | Auxiliary power point (Cigar lighter) |
| 11 | 15 | Powertrain control module, Ignition coil |
| 12 | 15 | 2.2 L and 3.2 L Duratorq: Fan drive, Powertrain control module, Glow plugs |
| 13 | 15 | 2.5 L Duratec: Heater, Fuel injectors |
| 14 | 15 | 2.2 L Duratorq: Powertrain control module, PCV Heater |
| 16 | 20 | Auxiliary power point (Cigar lighter 2) |
| 17 | 20 | Auxiliary power point (Rear cargo area) |
| 18 | 10 | 2.5 L Duratec: Powertrain control module, Keep alive power |
| 19 | 10 | Electronic power assist steering |
| 20 | 10 | Lighting control, Headlamp leveling |
| 21 | — | — |
| 22 | 10 | A/C clutch |
| 23 | 15 | Head-up display, Rear parking aid camera, Adaptive cruise control |
| 24 | 5 | Air Conditioning pressure switch (Manual transmission vehicles only) |
| 25 | 10 | Anti-lock brake system |
| 26 | 10 | Mirror adjust switch, Tachograph |
| 27 | 5 | Auxiliary Heater |
| 28 | 10 | Powertrain control module |
| 29 | — | — |
| 30 | — | — |
| 31 | — | — |
| 34 | 15 | Stop lamp (Center high mount) |
| 35 | 15 | 2.2 L Duratorq and 3.2 L Duratorq: Transmission control module |
| 36 | — | — |
| 37 | 10 | Heated exterior mirror |
| 43 | — | — |
| 44 | — | — |
| 45 | 10 | 2.5 L Duratec: Fuel injectors |
| 46 | 10 | — |
| 47 | 10 | Brake pedal switch |
| 48 | 20 | Horn |
| 49 | — | — |
| 50 | — | — |
| 51 | — | — |
| 52 | — | — |
| 53 | 10 | Rear differential lock |
| 54 | — | — |
| 55 | — | — |
| Relay |
||
| 2 | Starter motor solenoid relay | |
| 4 | Blower motor relay | |
| 6 | 2.5 L Duratec: Cooling fan relay (High-speed cooling fan) | |
| 9 | Powertrain control module relay | |
| 15 | Starter relay | |
| 32 | 2.5 L Duratec and 2.2 L Duratorq: Fuel pump rela | |
| 33 | A/C clutch relay | |
| 38 | 2.5 L Duratec: Cooling fan relay (Low speed) | |
| 39 | Four wheel drive power relay | |
| 40 | Stop lamp relay (Center high mount) | |
| 41 | Horn relay | |
| 42 | Four wheel drive motor no. 2 relay | |
| 86 | Four wheel drive motor no. 1 relay | |

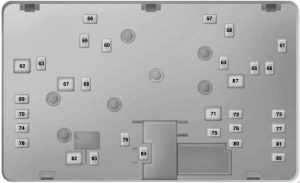

Power Distribution Box – Bottom
| Fuse | Ampere rating [A] | Description |
| 56 | — | — |
| 57 | — | — |
| 58 | — | — |
| 59 | 25 | Four Wheel Drive |
| 60 | 30 | Fuel Pump Control Module |
| 61 | 30 | Windshield Defrost (left) |
| 62 | 50 | Body control module 1 (lighting) |
| 63 | 30 | 2.5 L Duratec: Low-speed cooling fan |
| 64 | 20 | Trailer tow connector |
| 65 | 20 | Heated front seats |
| 66 | 30 | Windshield Defrost (right) |
| 67 | 50 | Body control module 2 |
| 68 | 20 | Rear window defroster |
| 69 | 30 | Anti-lock brake system (Valves) |
| 70 | — | — |
| 71 | 50 | 2.5 L Duratec: High-speed cooling fan |
| 72 | — | — |
| 73 | — | — |
| 74 | 20 | Driver power seat |
| 75 | — | — |
| 76 | — | — |
| 77 | — | — |
| 78 | — | — |
| 79 | 40 | Blower motor |
| 80 | — | — |
| 81 | 40 | Inverter |
| 82 | 60 | Anti-lock brake system (Pump) |
| 83 | 25 | Windshield wiper motor |
| 84 | 30 | Starter motor solenoid |
| 85 | — | — |
| 87 | 40 | Trailer module |
High Current Fuse Box
| Fuse | Ampere rating [A] | Description |
| 1 | 70 | 2.5 L Duratec: Heater Control Unit (cold start) |
| 60 | 2.2 L Duratorq and 3.2 L Duratorq: Glow plug module. | |
| 2 | 125 | Body control module 1 |
| 3 | 50 | 2.5 L Duratec: Body control module 2 2.2 L Duratorq and 3.2 L Duratorq: Body control module, Rear parking aid camera, Voltage quality module, Adaptive cruise control, Head-up display |
| 4 | — | Busbar through to power distribution box |
Battery Mounted Fuse Link
| Fuse | Ampere rating [A] | Description |
| 1 | 225 | Body control module 1 |
| 2 | 125 | Electronic power assist steering. |

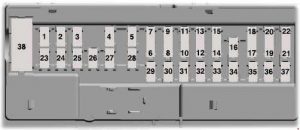

Passenger Compartment Fuse Box (Type 2)
| Fuse | Ampere rating [A] | Description |
| 1 | 10 | Glove box lamp, Map lamp, Battery saver, Overhead console, Sun visor, Grab handle, Automatic transmission gear shifter (diesel) |
| 2 | 7,5 | — |
| 3 | 20 | Driver door latch / Fuel flap unlock relay, Door Double / Aux lock relay |
| 4 | 5 | — |
| 5 | 20 | — |
| 6 | 10 | — |
| 7 | 10 | — |
| 8 | 10 | Security horn |
| 9 | 10 | — |
| 10 | 5 | — |
| 11 | 5 | Interior motion sensor |
| 12 | 7,5 | Electronic control panel, Climate control |
| 13 | 7,5 | Instrument cluster, Data link connector, Steering column control module |
| 14 | 10 | — |
| 15 | 10 | Gateway module/smart data link connector, OBDII (RHD) |
| 16 | 15 | Child lock |
| 17 | 5 | Battery backed sounder, Tracking and Blocking Module |
| 18 | 5 | Ignition switch |
| 19 | 7,5 | — |
| 20 | 7,5 | Headlamp control module |
| 21 | 5 | Humidity and in car temperature sensor |
| 22 | 5 | — |
| 23 | 10 | Inverter, Driver door window, Central locking system |
| 24 | 20 | Central locking system |
| 25 | 30 | Driver door control module (power window – one touch up/down all doors) Driver door power window switch memory (with one touch up/down driver only) |
| 26 | 30 | Passenger door control module (power window) (one touch up/down) |
| 27 | 30 | — |
| 28 | 10 | — |
| 29 | 30 | Left rear door control module (power window) (one touch up/down) |
| 30 | 30 | Right rear door control module (power window) (one touch up/down) |
| 31 | 15 | Tachograph |
| 32 | 10 | Radio transceiver module, SYNC module, GPS, Multi-function display, Door entry remote |
| 33 | 20 | Audio unit |
| 34 | 30 | Starter relay |
| 35 | 5 | Restraints control module |
| 36 | 15 | Auto-dimming interior mirror |
| 37 | 15 | — |
| 38 | 30 | Power windows (without door control module) (one touch up/down – driver only) |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
