Ford Taurus (1996 – 1999) – fuse box diagram (USA version)
Year of production: 1996, 1997, 1998, 1999
Fuse box in the passenger compartment
| Fuse/relay | Ampere rating [A] | Description |
| 1 | — | Not used |
| 2 | 5 | Instrument illumination |
| 3 | 10 | Left low beam headlamp |
| 4 | 10 | Right low beam headlamp |
| 5 | 5 | Brake shift interlock |
| 6 | 15 | MLPS switch, backup lamps, speed control, climate control |
| 7 | 10 | MLPS switch, starter relay |
| 8 | 5 | Power antenna, RCU, GEM |
| 9 | 10 | ABS, central temperature monitor |
| 10 | 20 | EEC relay, ignition coil, PATS, radio |
| 11 | 5 | Airbag, instrument cluster |
| 12 | 5 | Instrument cluster, auto lamps, transmission control switch, ICP, GEM |
| 12 | 5 | Airbag, blower motor, EATC |
| 14 | 5 | Air suspension, LOM |
| 15 | 10 | Multi-function switch (turn signal) |
| 16 | — | Not used |
| 17 | 30 | Front wiper/washer |
| 18 | 5 | Headlamps switch |
| 19 | 15 | Rear wiper/washer |
| 20 | 5 | ICP, remote entry, cellular phone |
| 21 | 20 | Cigar lighter |
| 22 | 5 | Power mirrors, antenna, decklid lamps, auto lamp |
| 23 | 5 | GEM, RAP, PATS |
| 24 | 5 | ICP, RCC, speedometer |
| 25 | 10 | Data link connector |
| 26 | 15 | Trunklid |
| 27 | 10 | Battery saver relay |
| 28 | 15 | Speed control, stop lamps |
| 29 | 15 | Multi-function switch, hazard |
| 30 | 15 | High beams, daytime running lamps, instrument cluster |
| 31 | 5 | Tail lamp feed |
| 32 | 5 | ICP, heated mirrors |
| 32 | 5 | Power windows, lock illumination |
| 34 | Relay | Battery saver relay |
| 35 | Relay | Driver’s unlock relay |
| 36 | Relay | Rear defrost relay |
| 37 | Relay | Interior lamp relay |
| 38 | Relay | One touch window down relay |
| 39 | Relay | Accessory delay relay |

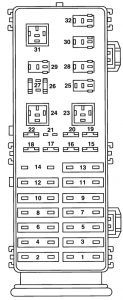

Power distribution box
| Fuse/relay | Ampere rating [A] | Description |
| 1 | 40 | Junction block |
| 2 | 30 | EEC power |
| 3 | 40 | Ignition |
| 4 | 30 | Power locks |
| 5 | 40 | Ignition |
| 6 | 30 | Power seats |
| 7 | 40 | Rear window defrost |
| 8 | 30 | Thermactor pump |
| 9 | 40 | Cooling fan |
| 10 | 20 | Fuel pump |
| 11 | 40 | Blower motor |
| 12 | 20 | Semi-active suspension |
| 13 | 40 | ABS module |
| 14 | 20 | Radio |
| 15 | 15 | Daytime running lamps |
| 16 | 10 | Airbag |
| 17 | 20 | Radio |
| 18 | 30 | Headlamps |
| 19 | 15 | Horn |
| 20 | 15 | Park lamps |
| 21 | — | Not used |
| 22 | 30 | Headlamps |
| 23 | Relay | Blower motor relay |
| 24 | Relay | Wiper park relay |
| 25 | Relay | Wiper hi/lo relay |
| 26 | 30 | Alternator |
| 27 | 10 | Hego power |
| 28 | Relay | Washer motor relay |
| 29 | Relay | Horn relay |
| 30 | Relay | Autolamp headlamp relay |
| 31 | Relay | Starter relay |
| 32 | Relay | Autolamp park relay |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
