Ford Taurus (from 2015) – fuse box diagram
Year of production: 2015, 2016

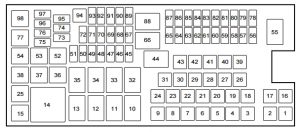

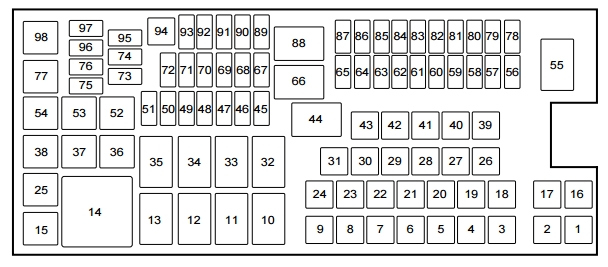

Power distribution box
| Fuse or relay number | Ampere rating [A] | Protected components |
| 1 | — | Not used |
| 2 | — | Not used |
| 3 | — | Not used |
| 4 | 30** | Wiper motor relay |
| 5 | 50** | Anti-lock brake system pump |
| 6 | — | Not used |
| 7 | — | Not used |
| 8 | 20** | Moonroof, Power sunshade |
| 9 | 20** | Second row powerpoint |
| 10 | — | Not used |
| 11 | — | Heated rear window relay |
| 12 | — | Not used |
| 13 | — | Starter motor high-current relay |
| 14 | — | Left-hand cooling fan #2 relay |
| 15 | — | Fuel pump ultra relay |
| 16 | — | Not used |
| 17 | — | Not used |
| 18 | 40** | Front blower motor relay |
| 19 | 30** | Starter relay |
| 20 | 20** | Storage bin powerpoint |
| 21 | 20** | Rear heated seat module |
| 22 | — | Massage control seats relay |
| 23 | 30** | Driver power seat, Memory module |
| 24 | — | Not used |
| 25 | — | Not used |
| 26 | 40** | Rear window defrost relay |
| 27 | 20** | Cigar lighter |
| 28 | 30** | Climate controlled seats |
| 29 | 40** | Electric fan relay 1 |
| 30 | 40** | Electric fan relay 2 |
| 31 | 25** | Electric fan relay 3 |
| 32 | — | Power seat relay |
| 33 | — | Right-hand cooling fan relay |
| 34 | — | Blower motor high-current relay |
| 35 | — | Left-hand cooling fan #1 relay |
| 36 | — | Not used |
| 37 | — | Not used |
| 38 | — | Not used |
| 39 | — | Not used |
| 40 | — | Not used |
| 41 | — | Not used |
| 42 | 30** | Passenger power seat |
| 43 | 20** | Anti-lock brake system valves |
| 44 | — | Not used |
| 45 | 5 | Rain sensor |
| 46 | — | Not used |
| 47 | — | Not used |
| 48 | — | Not used |
| 49 | — | Not used |
| 50 | 15* | Heated mirrors |
| 51 | — | Not used |
| 52 | — | Not used |
| 53 | — | Not used |
| 54 | — | Not used |
| 55 | — | Wiper relay |
| 56 | — | Not used |
| 57 | 20* | Left high-intensity discharge headlamp |
| 58 | 10* | Alternator A-line |
| 59 | 10* | Brake on/off switch |
| 60 | — | Not used |
| 61 | — | Not used |
| 62 | 10* | A/C clutch relay |
| 63 | — | Not used |
| 64 | 15* | Massage control seats |
| 65 | 30* | Fuel pump relay, Fuel injectors |
| 66 | — | Powertrain control module relay |
| 67 | 20* | Oxygen sensor heater, Mass airflow sensor, Variable camshaft timing solenoid valve, Canister vent solenoid, Canister purge solenoid |
| 68 | 20* | Ignition coils |
| 69 | 20* | Vehicle power #1 (powertrain control module) |
| 70 | 15* | A/C clutch, Fan control relay coils (1-3), Variable air conditioning compressor, Auxiliary transmission warmup, Turbo charge waste-gate control, Electronic compressor bypass valve, All-wheel drive module, Positive crankcase ventilation heater |
| 71 | — | Not used |
| 72 | — | Not used |
| 73 | — | Not used |
| 74 | — | Not used |
| 75 | — | Not used |
| 76 | — | Not used |
| 77 | — | Not used |
| 78 | 20* | Right high-intensity discharge headlamp |
| 79 | — | Not used |
| 80 | — | Not used |
| 81 | — | Not used |
| 82 | — | Not used |
| 83 | — | Not used |
| 84 | — | Not used |
| 85 | — | Not used |
| 86 | 7,5* | Powertrain control module keep-alive power and relay, Canister vent solenoid |
| 87 | 5* | Run/start relay |
| 88 | — | Run/start relay |
| 89 | 5* | Front blower relay coil, Electrical power assist steering module |
| 90 | 10* | Powertrain control module run/start |
| 91 | 10* | Adaptive cruise control module |
| 92 | 10* | Anti-lock brake system module, Adaptive headlamp module |
| 93 | 5* | Rear window defroster relay |
| 94 | 30** | Passenger compartment fuse panel run/start |
| 95 | — | Not used |
| 96 | — | Not used |
| 97 | — | Not used |
| 98 | — | A/C clutch relay |
| *Mini Fuses**Cartridge Fuses | ||

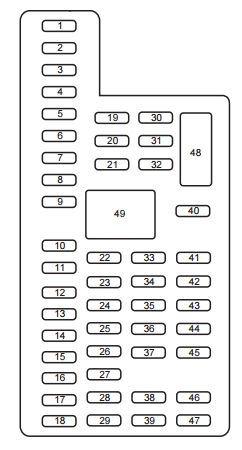

Passenger compartment fuse panel
The fuse panel is located under the instrument panel to the left of the steering wheel. You may need to remove a trim panel to access it.
| Fuse or relay number | Ampere rating [A] | Protected components |
| 1 | 30 | Left front and right rear smart window motors |
| 2 | 15 | Driver seat switch power |
| 3 | 30 | Right front smart window motor |
| 4 | 10 | Demand lamps battery saver relay and coil |
| 5 | 20 | Audio amplifiers |
| 6 | 5 | Not used (spare) |
| 7 | 7,5 | Driver seat module logic, Left front door zone module, Keypad |
| 8 | 10 | Not used (spare) |
| 9 | 10 | SYNC module, Multi-function displays, Electronic finish panel, Radio frequency transceiver module |
| 10 | 10 | Run accessory relay |
| 11 | 10 | Intelligent access module logic, Heads-up display |
| 12 | 15 | Puddle lamp, Backlighting LED, Interior lighting |
| 13 | 15 | Right front turn, Right rear turn |
| 14 | 15 | Left front turn, Left rear turn |
| 15 | 15 | Stop lamp, Backup lamp |
| 16 | 10 | Right front low beam |
| 17 | 10 | Left front low beam |
| 18 | 10 | Start button, Keypad illumination, Brake shift interlock, Powertrain control module wakeup, Immobilizer transceiver module |
| 19 | 20 | Audio amplifier |
| 20 | 20 | All lock motor relay, Driver lock motor relay |
| 21 | 10 | Not used (spare) |
| 22 | 20 | Horn relay |
| 23 | 15 | Steering wheel control module logic, Instrument cluster |
| 24 | 15 | Steering wheel control module, Datalink |
| 25 | 15 | Decklid release relay |
| 26 | 5 | Ignition switch or push button start switch |
| 27 | 20 | Intelligent access module power |
| 28 | 15 | Not used (spare) |
| 29 | 20 | Radio, Global positioning system module |
| 30 | 15 | Front park lamps |
| 31 | 5 | Not used (spare) |
| 32 | 15 | Smart window motors, Master window and mirror switch, Rear window power sunshade module, Lock switch illumination |
| 33 | 10 | Not used (spare) |
| 34 | 10 | Reverse park aid module, Automatic high beam and lane departure module, Rear heated seat module, Blind spot monitor module, Rear video camera |
| 35 | 5 | Motorized humidity sensor, Heads-up display, Traction control switch |
| 36 | 10 | Heated steering wheel |
| 37 | 10 | Not used (spare) |
| 38 | 10 | Auto–dimming mirror (without automatic high beam and lane departure module), Moonroof module and switch |
| 39 | 15 | High beams |
| 40 | 10 | Rear park lamps |
| 41 | 7,5 | Occupant classification sensor, Restraint control module |
| 42 | 5 | Not used (spare) |
| 43 | 10 | Not used (spare) |
| 44 | 10 | Not used (spare) |
| 45 | 5 | Not used (spare) |
| 46 | 10 | Climate control module |
| 47 | 15 | Fog lamp relay |
| 48 | 30A Circuit Breaker | Front passenger power window, Rear power windows |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
