Ford Tourneo Connect mk2 (from 2013) – fuse box diagram (EU version)
Year of production: 2013, 2014, 2015, 2016

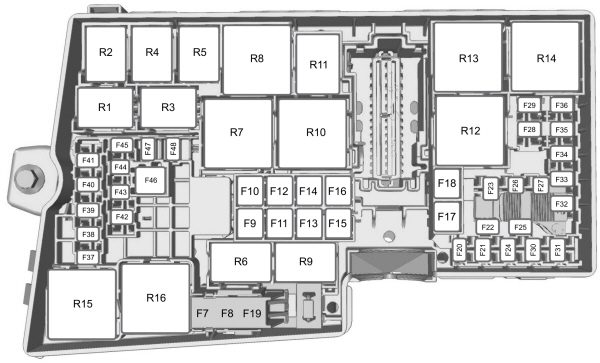

Engine compartment fuse box
| Fuse | Ampere rating [A] | Circuits protected |
| F1 | — | Not used |
| F2 | — | Not used |
| F3 | — | Not used |
| F4 | — | Not used |
| F5 | — | Not used |
| F6 | — | Not used |
| F7 | 40** | Anti-lock brake system Electronic stability program |
| F8 | 30** | Stability control |
| F9 | 30** | Heated rear window |
| F10 | 40** | Blower motor |
| F11 | 20** | Rear floor console auxiliary power point |
| F12 | 30** | Powertrain control module |
| F13 | 30** | Starter relay |
| F14 | 40** | Heated windshield (right-hand side) |
| F15 | 20** | Rear auxiliary power points |
| 25 | Charge air cooler (1.0L EcoBoost) | |
| F16 | 40** | Heated windshield (left-hand side) |
| F17 | 20** | Floor console auxiliary power point |
| F18 | 20 | Driver stowage bin auxiliary power point |
| F19 | 5* | Anti-lock brake system Stability Control |
| F20 | 15* | Horn |
| F21 | 5* | Stop lamp switch |
| F22 | 15* | Battery monitor system |
| 10 | Power supply voltage (powertrain control module) | |
| F23 | 5* | Relay coils |
| F24 | 25* | Fuel fired booster heater (van only) |
| F25 | 10 | Power mirrors (without door control unit) |
| F26 | 5* | Engine control relay coil feed (vehicles with a gasoline engine) |
| 15* | Engine control relay coil feed (vehicles with a diesel engine) Transmission control (vehicles with a diesel engine) | |
| F27 | 15* | Air conditioning clutch |
| F28 | 5* | Voltage quality module (ignition) |
| 25 | Rear power windows (without door control unit) | |
| F29 | 25* | Front power windows (without door control unit) |
| F30 | 5 | Ignition switch position II output |
| F31 | 10 | Security horn |
| F32 | 15* | Engine control module |
| 10 | Mass air flow solenoid Exhaust gas recirculation solenoid | |
| F33 | 10* | Engine control module |
| 15 | Ignition coil pack | |
| F34 | 10* | Fuel injectors |
| F35 | 15* | Fuel filter heater |
| F36 | 10* | Engine control module Active grille shutter |
| 5 | ||
| F37 | 5* | Parking assist control module |
| F38 | 15* | Engine control module Transmission control module |
| F39 | 5* | Headlamp leveling |
| F40 | 5* | Electronic power assist steering |
| F41 | 20* | Body control module |
| F42 | 15* | Rear window wiper |
| F43 | 15* | Heated front seat |
| F44 | 15* | Headlamp control module |
| F45 | 10* | Heated washer nozzle |
| F46 | 40** | Windshield wiper |
| F47 | 7,5 | Heated exterior mirror (without door control unit) |
| F48 | 25* | Body control module |
| *Mini fuses **Cartridge fuses | ||
| Relay | Circuits switched |
| R1 | Charge air cooler fan (1.0L EcoBoost) |
| R2 | Horn |
| R3 | Security horn |
| R4 | Not used |
| R5 | Rear window wiper |
| R6 | Not used |
| R7 | Heated windshield |
| R8 | Accessory delay |
| R9 | Ignition |
| R10 | Starter motor |
| R11 | Air conditioning clutch |
| R12 | Cooling fan |
| R13 | Blower motor |
| R14 | Electronic engine control |
| R15 | Heated rear window |
| R16 | Ignition |

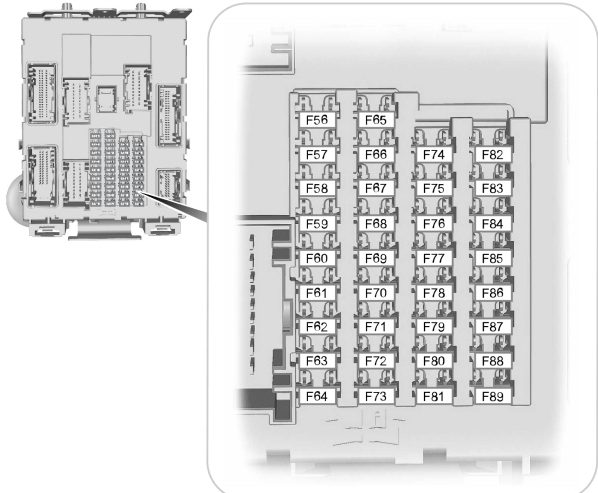

Passenger compartment fuse box
| Fuse | Ampere rating [A] | Circuits protected |
| F56 | 20 | Fuel pump |
| F57 | — | Not used |
| F58 | — | Not used |
| F59 | 5 | Passive anti-theft system transceiver |
| F60 | 10 | Interior lamp Driver door switch pack Glove compartment lamp Overhead console switch bank |
| F61 | — | Not used |
| F62 | 5 | Autowipers Auto-dimming interior mirror |
| F63 | — | Adaptive cruise control (front sensing module) |
| F64 | — | Not used |
| F65 | 10 | Liftgate release |
| F66 | — | Not used |
| F67 | 7,5 | SYNC Front display interface module Global positioning system module |
| F68 | 15 | Electric steering column lock |
| F69 | 5 | Instrument panel cluster |
| F70 | — | Not used |
| F71 | 10 | Heating control head (manual air conditioning) Dual automatic temperature control |
| F72 | 7,5 | Steering wheel module |
| F73 | 7,5 | Data link connector Battery backup sounder |
| F74 | 15 | High beam headlamp |
| F75 | 15 | Front fog lamp |
| F76 | 10 | Reversing lamp |
| F77 | 20 | Washer pump |
| F78 | 5 | Ignition switch Ignition switch (vehicles with keyless starting) |
| F79 | 15 | Audio unit DVD navigation system Touchscreen Hazard flasher switch Door lock switch |
| F80 | 20 | Moonroof |
| F81 | 5 | Radio frequency receiver Interior motion sensor |
| F82 | 20 | Washer pump |
| F83 | 20 | Central locking |
| F84 | — | Not used |
| F85 | 7,5 | Ignition switch |
| F86 | 10 | Airbag module Occupant classification system Passenger airbag deactivation indicator |
| F87 | — | Not used |
| F88 | 25 | Body control module KL30 supply |
| F89 | — | Not used |

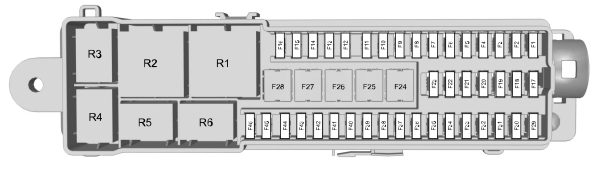

Load compartment fuse box
| Fuse | Ampere rating [A] | Circuits protected |
| F1 | 10 | Rear heating, ventilation and air conditioning |
| F2 | 25 | Driver seat adjuster |
| F3 | 25 | Driver door module |
| F4 | 25 | Passenger door module |
| F5 | — | Not used |
| F6 | 25 | Door control unit (left-hand rear) |
| F7 | 25 | Door control unit (right-hand rear) |
| F8 | 10 | Security horn |
| F9 | — | Not used |
| F10 | — | Not used |
| F11 | — | Not used |
| F12 | 10 | Climate control (vehicles with start-stop) |
| F13 | 5 | Instrument panel cluster (vehicles with start-stop) |
| F14 | 7,5 | Information and entertainment display SYNC Global positioning system module (vehicles with start-stop) |
| F15 | 15 | Audio unit (vehicles with start-stop) |
| F16 | — | Not used |
| F17 | — | Not used |
| F18 | — | Not used |
| F19 | — | Not used |
| F20 | — | Not used |
| F21 | — | Not used |
| F22 | — | Not used |
| F23 | — | Not used |
| F24 | 20 | Rear auxiliary power points |
| F25 | 40 | Rear blower motor |
| F26 | 40 | Accessories Trailer tow module |
| F27 | 30 | Voltage quality module |
| F28 | 20 | Fuel fired booster heater |
| F29 | 5 | Blind spot monitoring system Front view camera Adaptive cruise control Rear view camera with park assist Low voltage DC/DC converter ignition signal |
| F30 | 5 | Parking aid |
| F31 | — | Not used |
| F32 | — | Not used |
| F33 | — | Not used |
| F34 | 15 | Driver heated seat |
| F35 | 15 | Passenger heated seat |
| F36 | — | Not used |
| F37 | 20 | Power sunblind |
| F38 | — | Not used |
| F39 | — | Not used |
| F40 | 7,5 | gnition (Rear heating, ventilation and air conditioning module) |
| F41 | — | Not used |
| F42 | — | Not used |
| F43 | — | Not used |
| F44 | — | Not used |
| F45 | — | Not used |
| F46 | 5 | Rear view camera with park assist (vehicles with start-stop) |
| Relay | Circuits switched |
| R1 | Ignition switch |
| R2 | Rear heating, ventilation and air conditioning motor |
| R3 | Not used |
| R4 | Not used |
| R5 | Security horn |
| R6 | Not used |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
