Ford Tourneo Courier mk2 – fuse box (EU version)
Year of production:

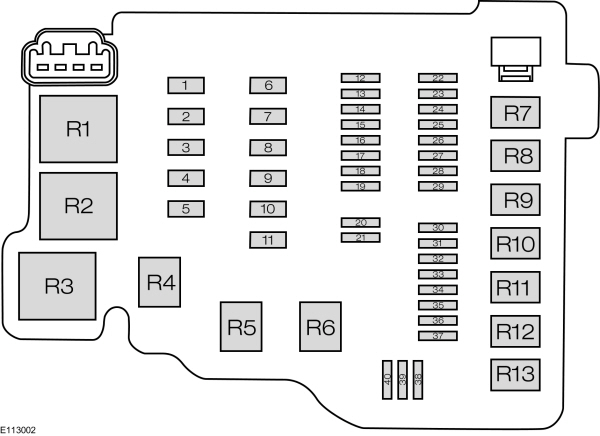

Engine compartment fuse box
| Fuse | Ampere rating [A] | Circuits protected |
| F1 | 30 | Anti-lock brake system |
| F2 | 60 | Cooling fan |
| F3 | 30 | Cooling fan |
| 40 | ||
| F4 | 30 | Blower motor |
| F5 | 60 | Passenger compartment fuse box supply |
| F6 | 30 | Central locking system |
| F7 | 60 | Ignition relay |
| F8 | 60 | Glow plugs |
| F9 | 60 | Heated windshield |
| F10 | 30 | Fuel heater |
| F11 | 30 | Starter motor |
| F12 | 10 | Left-hand high beam |
| F13 | 10 | Right-hand high beam |
| F14 | 15 | Water pump – EcoBoost |
| F15 | 20 | Ignition coil |
| F16 | 15 | Powertrain control module |
| F17 | 15 | Heated oxygen sensor |
| F17 | 20 | Powertrain control module |
| F18 | — | Not used |
| F19 | 7,5 | Air conditioning compressor |
| F20 | — | Not used |
| F21 | — | Not used |
| F22 | — | Not used |
| F23 | 15 | Front fog lamps |
| F24 | 15 | Direction indicators |
| F25 | 15 | Left-hand exterior lamps |
| F26 | 15 | Right-hand exterior lamps |
| F27 | 7,5 | Powertrain control module |
| F28 | 20 | Anti-lock brake system |
| F29 | 10 | Air conditioning clutch |
| F30 | — | Not used |
| F31 | — | Not used |
| F32 | 20 | Horn |
| F33 | 20 | Heated rear window |
| F34 | 20 | Fuel pump. Fuel heater |
| F35 | 15 | Anti-theft alarm |
| F36 | — | Not used |
| F37 | — | Not used |
| F38 | — | Not used |
| F39 | — | Not used |
| F40 | — | Not used |
| Relay | Circuits switched |
| R1 | Cooling fan |
| R2 | Glow plugs |
| R3 | Powertrain control module |
| R4 | High beam |
| R5 | Not used |
| R6 | Fuel line heater |
| R7 | Cooling fan |
| R8 | Starter motor |
| R9 | Air conditioning clutch |
| R10 | Front fog lamps |
| R11 | Fuel pump. Fuel heater |
| R12 | Not used |
| R13 | Blower motor |

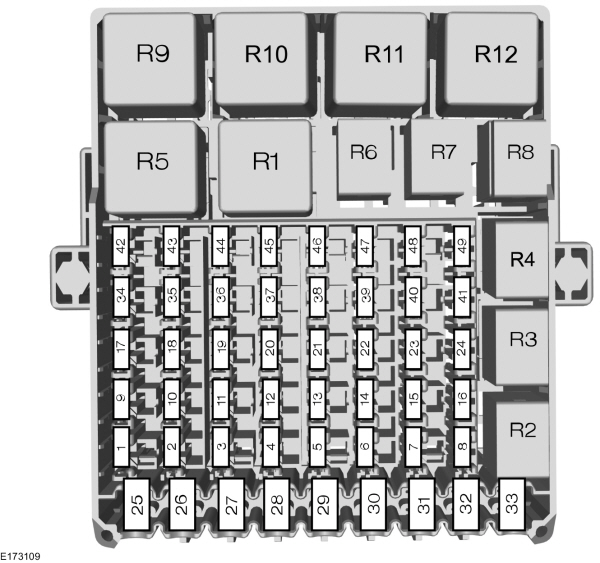

Passenger Compartment fuse box
| Fuse | Ampere rating [A] | Circuits protected |
| F1 | 7,5 | Heated windshield. Blower motor. Rain sensor module. Auto-dimming interior mirror |
| F2 | 10 | Stop lamp switch |
| F3 | 5 | Reversing lamps. Rear parking aid camera |
| F4 | 10 | Heated washer nozzle. Headlamp leveling |
| F5 | 7,5 | Power exterior mirrors |
| F6 | 15 | Rear window wiper |
| F7 | 15 | Windshield washer pump |
| F8 | 3 | USB charger |
| F9 | 15 | Passenger heated seat |
| F10 | 15 | Driver heated seat |
| F11 | — | Not used |
| F12 | 10 | Airbag module |
| F13 | 10 | Blower motor relay. Immobilizer. Power steering. Instrument panel cluster |
| F14 | 7,5 | Powertrain control module. Fuel pump |
| F15 | 7,5 | Audio unit. Instrument panel cluster |
| F16 | — | Not used |
| F17 | — | Not used |
| F18 | 10 | Passenger airbag deactivation indicator |
| F19 | 10 | Data link connector |
| F20 | 20 | Trailer tow module |
| F21 | 15 | Audio unit. Navigation unit |
| F22 | 7,5 | Instrument cluster |
| F23 | 7,5 | Front control/display interface module. Air conditioning control module. Hazard flasher switch |
| F24 | 10 | SYNC module. Global positioning system module |
| F25 | 30 | Power windows |
| F26 | 30 | Windshield wipers |
| F27 | — | Not used |
| F28 | 30 | Auto-start-stop power supply |
| F29 | 20 | Rear auxiliary power points |
| F30 | 20 | Cigar lighter socket. Front auxiliary power points |
| F31 | — | Not used |
| F32 | 30 | Left-hand heated windshield element |
| F33 | 30 | Right-hand heated windshield element |
| F34 | 20 | Central locking system |
| F35 | — | Not used |
| F36 | 20 | Heated rear window |
| F37 | 15 | Ignition switch |
| F38 | 7,5 | Anti-theft alarm |
| F39 | — | Not used |
| F40 | — | Not used |
| F41 | — | Not used |
| F42 | 7,5 | Rear parking aid camera |
| F43 | — | Not used |
| F44 | — | Not used |
| F45 | 10 | Heated exterior mirrors |
| F46 | — | Not used |
| F47 | — | Not used |
| F48 | — | Not used |
| F49 | — | Not used |
| Relay | Circuits switched |
| R1 | Ignition |
| R2 | Cigar lighter socket. Front auxiliary power points |
| R3 | Central locking system |
| R4 | Heated rear window |
| R5 | Not used |
| R6 | Not used |
| R7 | Not used |
| R8 | Rear auxiliary power points |
| R9 | Heated windshield |
| R10 | Not used |
| R11 | Windshield washer pump |
| R12 | Windshield washer pump |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
