Ford Transit (1995 – 2000) – fuse box diagram
Year of production: 1995, 1996, 1997, 1998, 1999, 2000

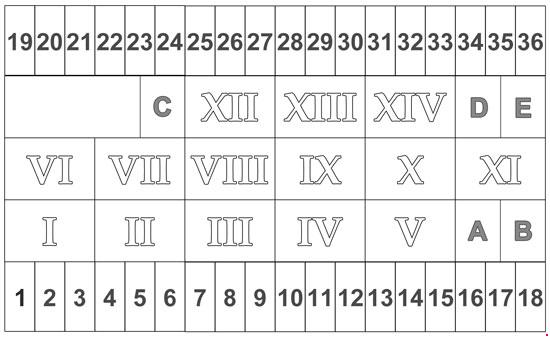

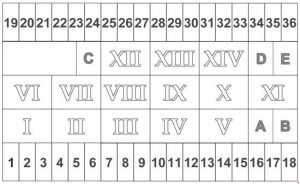

Fuse box diagram
| No. |
A |
Circuits protected |
| 1 | 30 25 |
Heater |
| 2 | 15 | Wiper |
| 3 | 10 | Rear wiper |
| 4 | 30 | Electric windows |
| 5 | 5 10 |
ABS |
| 6 | 10 | Traction control system, cold start system, clock, ABS, charging system, lights, instrument cluster |
| 7 | 10 | Brake lamp |
| 8 | 10 | Direction indicators |
| 9 | 10 | Anti-theft alarm system |
| 10 | 30 | Air conditioning system |
| 11 | 10 | Interior lights, radio, clock |
| 12 | 5 | Exterior power mirrors |
| 13 | 20 15 |
Cigar lighter |
| 14 | 20 | Horn, hazard flasher |
| 15 | 10 15 |
Anti-theft alarm system, hazard flasher |
| 16 | 20 | Heated rear screen, heated exterior mirrors |
| 17 | 20 | Headlight washers |
| 18 | 30 | Heated front screen |
| 19 | 10 | Clock, instrument cluster, cigar lighter, headlamp and rear lamp right hand side, license plate lamps, refrigerated system |
| 20 | 10 | Fog lamp switch, traction control, power windows, headlamp and rear lamp left hand side, license plate lamps |
| 21 | 10 | Dipped beam right hand side, headlamp leveling system |
| 22 | 10 | Dipped beam left hand side |
| 23 | 10 | Main lamp right hand side |
| 24 | 10 | Main lamp left hand side |
| 25 | 10 | Rear fog lights |
| 26 | 20 | Daytime running lights |
| 27 | 10 | Heated front seats |
| 28 | 10 | Recirculation heating, air conditioning |
| 20 | Additional heating | |
| 29 | 20 | Front fog lamps |
| 30 | — | Not used |
| 31 | 10 | Central locking |
| 32 | 5 | Immobilizer |
| 33 | 5 | Immobilizer |
| 34 | 5 | Air bag |
| 35 | 5 | Entry Illumination relays, heater |
| 36 | 10 | Wash/wipe system |
| Relay | ||
| A | Dipped beam | |
| B | Main beam | |
| C | Daytime light | |
| D | Anti-theft alarm system left hand side | |
| E | Anti-theft alarm system right hand side | |
| I | Ignition relay | |
| II | Not used | |
| III | Not used | |
| IV | Direction indicators | |
| V | Exterior lights buzzer | |
| VI | Fog lights | |
| VII | Headlamp washer system | |
| VIII | Heated front screen | |
| IX | Rear screen wiper, intermittent wiping | |
| X | Front screen wiper, intermittent wiping | |
| XI | Heated rear screen and exterior mirrors | |
| XII | Daytime lights | |
| XIII | Main beam | |
| XIV | Anti-theft alarm system Fog lights |
|
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
