Ford Transit Custom (from 2015) – fuse box diagram (EU version)
Year of production: 2015, 2016, 2017, 2018
Engine compartment fuse box

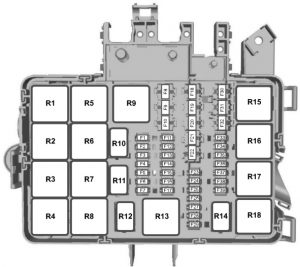

Ford Transit Custom (2015) – fuse box – engine compartment
| Fuse |
Ampere rating [A] |
Circuits protected |
| F1 |
— |
Not used |
| F2 |
— |
Not used |
| F3 |
— |
Not used |
| F4 |
— |
Not used |
| F5 |
3 |
Powertrain control module |
| F6 |
3 |
Anti-lock brake system module |
| F7 |
7,5 |
Powertrain control module. Glow plug module |
| F8 |
— |
Not used |
| F9 |
30 |
Windshield wiper motor |
| F10 |
30 |
Auxiliary windshield wiper motor |
| F11 |
10 |
Air conditioning clutch |
| F12 |
20 |
Glow plugs |
| F13 |
— |
Not used |
| F14 |
— |
Not used |
| F15 |
— |
Not used |
| F16 |
— |
Not used |
| F17 |
— |
Not used |
| F18 |
40 |
Anti-lock brake system module |
| F19 |
30 |
Starter relay |
| F20 |
60 |
Glow plug module |
| F21 |
60 |
Ignition relay |
| F22 |
— |
Not used |
| F23 |
25 |
Anti-lock brake system module |
| F24 |
7,5 |
Fuel pump relay |
| F25 |
— |
Not used |
| F26 |
3 |
Econetic coolant valve |
| F27 |
— |
Not used |
| F28 |
— |
Not used |
| F30 |
60 |
Low-speed and high-speed cooling fan |
| F31 |
— |
Not used |
| F32 |
60 |
Windshield wiper motor relay |
| F33 |
— |
Not used |
| F34 |
— |
Not used |
| F35 |
15 |
Powertrain control module |
| F36 |
7,5 |
Mass air flow sensor |
| F37 |
7,5 |
Fuel metering valve |
| F38 |
7,5 |
Air conditioning clutch relay |
| F39 |
15 |
Low-speed and high-speed cooling fan. Glow plug relay. Fuel vaporizer system fuel pump. Heated oxygen sensor. Econetic coolant valve relay |
| Relay |
Circuits switched |
| R1 |
Ignition |
| R2 |
Starter motor |
| R3 |
Rear window wiper |
| R4 |
Windshield wiper motor |
| R5 |
Not used |
| R6 |
Not used |
| R7 |
Not used |
| R8 |
Not used |
| R9 |
Not used |
| R10 |
Air conditioning clutch |
| R11 |
Glow plugs |
| R12 |
Fuel pump |
| R13 |
Not used |
| R14 |
Econetic coolant valve |
| R15 |
Low-speed cooling fan |
| R16 |
Not used |
| R17 |
Powertrain control module |
| R18 |
High-speed cooling fan |
Passenger compartment fuse box

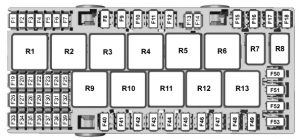

Ford Transit Custom (2015) – fuse box – passeneger compartment
| Fuse |
Ampere rating [A] |
Circuits protected |
| F1 |
10 |
Restraints control module |
| F2 |
— |
Not used |
| F3 |
10 |
Exterior mirrors |
| F4 |
— |
Not used |
| F5 |
20 |
Auxiliary heater control module. |
| F6 |
5 |
Tachograph |
| F7 |
— |
Not used |
| F8 |
40 |
Direct current (DC/AC) inverter |
| F9 |
— |
Not used |
| F10 |
30 |
Driver power seat |
| F11 |
— |
Not used |
| F12 |
— |
Not used |
| F13 |
— |
Not used |
| F14 |
5 |
Powertrain control module relay |
| F15 |
40 |
Powertrain control module relay |
| F16 |
40 |
Battery control module |
| F17 |
— |
Not used |
| F18 |
— |
Not used |
| F19 |
5 |
Tachograph |
| F20 |
5 |
Heated windshield relay. Left-hand heated windshield relay. right-hand heated windshield relay. Direct current (DC/AC) inverter relay |
| F21 |
10 |
Customer access |
| F22 |
15 |
Body control module |
| F23 |
7,5 |
Fuel fired booster heater relay. Auxiliary blower motor relay. Booster heater. Blower motor. Message center switch |
| F24 |
5 |
Headlamps |
| F25 |
25 |
Interior lighting |
| F26 |
— |
Not used |
| F27 |
20 |
Heated front seats |
| F28 |
20 |
Adaptive front lighting module |
| F29 |
10 |
Image processing module A. Image processing module B. Auto-dimming interior mirror. Steering column control module |
| F30 |
— |
Not used |
| F31 |
— |
Not used |
| F32 |
10 |
Interior lamps |
| F33 |
— |
Not used |
| F34 |
20 |
Rear window wiper relay. Rear window wiper motors |
| F35 |
5 |
Power folding mirrors. Driver door window |
| F36 |
20 |
Horn relay |
| F37 |
7,5 |
SYNC module. Global positioning system module |
| F38 |
5 |
Rear window wiper. Horn relay. Blower motor relay |
| F39 |
7,5 |
Auxiliary blower motor switch. Intrusion sensor. Radio frequency receiver |
| F40 |
40 |
Blower motor relay. Auxiliary blower motor relay |
| F41 |
40 |
Rear heater blower |
| F42 |
30 |
Heated rear window relay |
| F43 |
30 |
Trailer module. Trailer socket |
| F44 |
60 |
Auxiliary power point relay |
| F45 |
— |
Not used |
| F46 |
30 |
Driver door window switch. Passenger door window switch |
| F47 |
20 |
Auxiliary power point |
| F48 |
20 |
Rear auxiliary power points |
| F49 |
20 |
Front auxiliary power points |
| F50 |
60 |
Ignition relay 1 |
| F51 |
60 |
Ignition relay 2 |
| F52 |
40 |
Left-hand heated windshield element |
| F53 |
40 |
Right-hand heated windshield element |
| Relay |
Circuits switched |
| R1 |
Fuel fired booster heater |
| R2 |
Auxiliary power points |
| R3 |
Not used |
| R4 |
Ignition relay 2 |
| R5 |
Not used |
| R6 |
Ignition relay 1 |
| R7 |
Horn |
| R8 |
Not used |
| R9 |
Blower motor |
| R10 |
Auxiliary blower motor |
| R11 |
Heated rear window |
| R12 |
Right-hand heated windshield element |
| R13 |
Left-hand heated windshield element |
Pre-fuse box

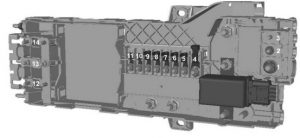

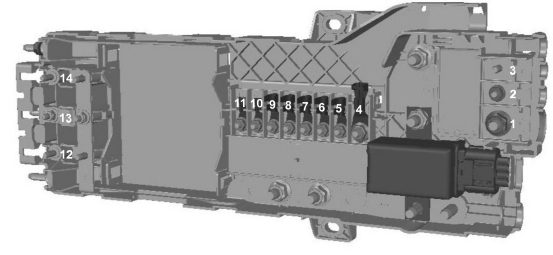

Ford Transit Custom (2015) – pre fuse box
| Fuse |
Ampere rating [A] |
Circuits protected |
| F1 |
350 |
Alternator. Starter motor. Battery junction box |
| F2 |
100 |
Auxiliary junction box |
| F3 |
— |
Not used |
| F4 |
200 |
Auxiliary junction box |
| F5 |
100 |
Auxiliary junction box |
| F6 |
80 |
Electric booster heater |
| F7 |
80 |
Auxiliary junction box |
| F8 |
100 |
Battery junction box |
| F9 |
100 |
Auxiliary junction box |
| F10 |
60 |
Body control module 1 |
| F11 |
60 |
Body control module 2 |
| F12 |
60 |
Customer access |
| F13 |
— |
Not used |
| F14 |
60 |
Customer access |
Body control module fuse box

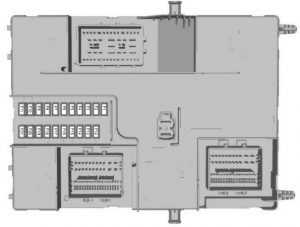

Ford Transit Custom (2015) – body control module fuse box
| Fuse |
Ampere rating [A] |
Circuits protected |
| F1 |
— |
Not used |
| F2 |
15 |
Driver door latch. Passenger door latch. Liftgate latch |
| F3 |
15 |
Ignition switch. Auxiliary battery relay |
| F4 |
5 |
Parking aid module |
| F5 |
5 |
Rain sensor module. Autolamp module |
| F6 |
15 |
Windshield washer pump |
| F7 |
7,5 |
Exterior mirrors |
| F8 |
15 |
Front fog lamps |
| F9 |
10 |
Right-hand headlamp |
| F10 |
10 |
Left-hand headlamp |
| F11 |
25 |
Right-hand rear lamps. Right-hand headlamp. Left-hand headlamp. Exterior mirrors |
| F12 |
20 |
Anti-theft alarm. Battery back-up sounder |
| F13 |
15 |
Data link connector. Auxiliary power point relay. Interior lighting |
| F14 |
25 |
Headlamps. Exterior mirrors |
| F15 |
25 |
Right-hand headlamp. Left-hand headlamp. Left-hand rear lamps. Trailer module |
| F16 |
20 |
Audio control |
| F17 |
7,5 |
Instrument cluster. Blower motor |
| F18 |
10 |
Headlamp switch |
| F19 |
5 |
Front control/display interface module |
| F20 |
5 |
Passive anti-theft system |
| F21 |
3 |
Audio front control module |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
