Ford Transit mk6 (2000 – 2005) – fuse box diagram (EU version)
Year of production: 2000, 2001, 2002, 2003, 2004, 2005
Engine compartment fuse box
| Fuse | Ampere rating [A] | Circuits protected |
| 1 | 5 | Auto shift manual transmission |
| 2 | — | Not used |
| 3 | 20 | Daytime running lamps, dipped beam |
| 4 | 5 | Battery voltage sensor (Diesel engines) |
| 5 | 20 | Fuel cut-off switch |
| 6 | 30 | Towing equipment |
| 7 | 15 | Horn |
| 8 | 20 | ABS |
| 9 | 20 | Main beam |
| 10 | 10 | Air conditioning |
| 11 | 20 | Windscreen washers, rear window washers |
| 12 | — | Not used |
| 13 | 30 | Multi-function lever, windscreen wipers |
| 14 | 15 | Reversing lamp |
| 15 | 5 | Engine immobilisation system module |
| 16 | 5 | Electronic engine control |
| 17 | 30 | Towing equipment |
| 18 | — | Not used |
| 19 | 5 | Auto shift manual transmission |
| 20 | 15 | Auto shift manual transmission |
| 21 | 20 | Engine management |
| 22 | 20 | Fuel pump |
| 23 | 10 | Dipped beam, right-hand side |
| 24 | 10 | Dipped beam, left-hand side |
| 101 | 40 | ABS |
| 102 | 40 | Heated windscreen left-hand side |
| 103 | 50 | Main power supply to electrical system |
| 104 | 50 | Main power supply to electrical system |
| 105 | 40 | Engine cooling fan (2.0 l Diesel and 2.3 l DOHC engines) |
| 106 | 30 | Ignition |
| 107 | 30 | Ignition |
| 108 | — | Not used |
| 109 | 40 | Engine cooling fan (2.0 l Diesel and 2.3 l DOHC engines) |
| 110 | 40 | Heated windscreen, right-hand side |
| 111 | Ignition | |
| 112 | — | Not used |
| 113 | 40 | Auto shift manual transmission |
| 114 | — | Not used |
| 115 | — | Not used |
| 116 | — | Not used |
| 117 | — | Not used |
| 118 | — | Not used |
| 119 | — | Not used |
| 120 | — | Not used |
| 121 | — | Not used |
| 122 | — | Not used |

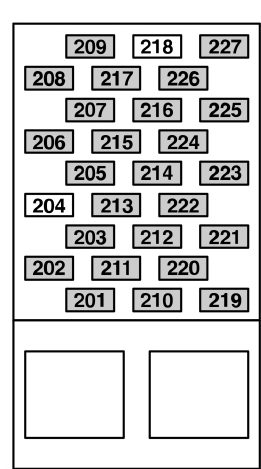

Passenger compartment fuse box
| Fuse | Ampere rating [A[ | Circuits protected |
| 201 | 15 | Instrument cluster, rear window wiper, clock |
| 202 | 5 | Heated windscreen |
| 203 | 20 | Fog lamps |
| 204 | — | Not used |
| 205 | 15 | Light control, direction indicators, multi-function lever, engine management, ignition |
| 206 | 5 | Number plate light |
| 207 | 10 | Airbag module |
| 208 | 10 | Instrument cluster illumination |
| 209 | 15 | Side lamps |
| 210 | 15 | Tachometer, clock |
| 211 | 30 | Rear heater blower motor |
| 212 | 10 | Cigar lighter |
| 213 | 10 | Rear air conditioning |
| 214 | 15 | Interior lamps, electric mirrors |
| 215 | 20 | Heated windscreen, heated front seats, auxiliary heater |
| 216 | 20 | Auxiliary power socket |
| 217 | 15 | Heated rear window, heated exterior mirror |
| 218 | — | Not used |
| 219 | 30 | Electric windows |
| 220 | 20 | Heated rear window |
| 221 | 15 | Brake lamp switch |
| 222 | 15 | Radio |
| 223 | 30 | Heater blower motor |
| 224 | 20 | Headlamp switch |
| 225 | 15 | Air conditioning |
| 226 | 20 | Hazard warning flashers, direction indicators |
| 227 | 5 | Radio, ABS |
Auxiliary fuses
| Fuse | Ampere rating [A] | Circuits protected | Location |
| 230 | 15 | Central locking, alarm system | Bracket behind instrument cluster |
| 231 | 15 | Central locking, alarm system | Bracket behind instrument cluster |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
