Ford Transit mk7 (2006 – 2014) – fuse box (EU version)

Year of production: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014

Fuse	Ampere rating [A]	Colour	Circuits protected
1	350	grey	Starter motor and alternator
2	60	yellow	Passenger junction box power supply – start relevant / Passenger junction box KL15 for Start-Stop
3	100	blue	Engine junction box power supply – non-start relevant
4	40	green	Heated front screen right-hand side
5	100	blue	Standard relay box power supply – non-start relevant
6	40	green	Heated front screen left-hand side
7	60	yellow	Passenger junction box power supply – non-start relevant
8	60	yellow	Customer connection point
9	60	yellow	Customer connection point
10	60	yellow	Customer connection point

Relay	Circuits switched
R1	Second battery disconnect switch

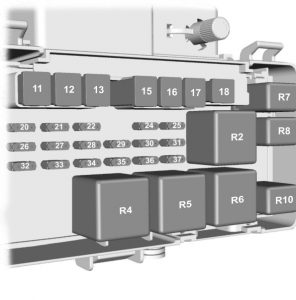

Fuse	Ampere rating [A]	Colour	Circuits protected
11	60	yellow	Engine cooling fan
12	30	pink	Trailer tow and trailer tow module power supply (KL30)
13	40	green	ABS and ESP pump
14	—	—	Not used
15	60	yellow	Glow plugs
16	60	yellow	Ignition relay (KL15 #3
17	30	pink	Starter enable
18	40	green	Ignition feed (KL15) to Passenger junction box (vehicles without Start-Stop)
18	—	—	Not used (vehicles with Start-Stop)
19	—	—	Not used
20	10	red	ABS, ESP, steering angle sensor, YAW sensor supply (KL30)
21	25	natural	ABS and ESP valves and control unit
22	—	—	Not used
23	—	—	Not used
24	5	tan	Fuel pump (without fuel-fired heater)
24	20	yellow	Fuel pump (with fuel-fired heater)
25	—	—	Not used
26	15	blue	PCM Power
27	5	tan	Fuel pump (with fuel-fired heater)
28	5	tan	T-MAF sensor
29	5	tan	Vaporiser glow plug monitoring
30	7,5		Sonic purge valve
31	15	blue	VAP pump/UEGO
32	15	yellow	Vaporiser glow plug
33	10	red	Reversing lamps
34	20	yellow	Trailer KL15 Power supply
35	—	—	Not used
36	10	red	Air conditioning clutch
37	—	—	Not used

Relay	Circuits switched
R2	Glow plugs
R3	Trailer tow (KL15)
R4	Starter enable
R5	Power feed (KL15 #4)
R6	Power feed (KL15 #3)
R7	Fuel pump
R8	Vaporiser glow plug
R9	Not used
R10	Air conditioning clutch solenoid

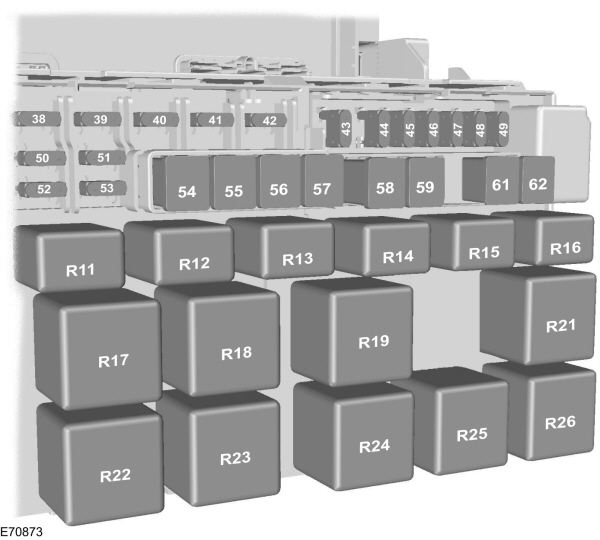

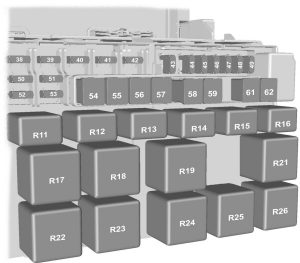

Fuse	Ampere rating [A]	Colour	Circuits protected
38	20	yellow	Rear window wiper
39	10	red	Front and rear air conditioning control
40	5	tan	Not used
41	5	tan	Tachograph
42	5	tan	Headlamp levelling, master light switch (KL15)
43	20	yellow	Heated front seats
44	20	yellow	Horn
45	20	yellow	Auxiliary power point front
46	10	red	Heated door mirrors, if CAT 1 fitted
47	20	yellow	Cigar lighter
48	5	tan	Relay coils supply, power mirrors
49	20	yellow	Auxiliary power point rear
50	10	red	Main beam left-hand side
51	10	red	Main beam right-hand side
52	10	red	Dipped beam left-hand side
53	10	red	Dipped beam right-hand side
54	30	pink	Pre-fuse for dipped beam, main beam, daytime running lamps, tachograph, fuel-fired booster heater blower
55	40	green	Heater blower motor
56	20	yellow	Power windows
57	30	pink	Rear heater blower motor
58	30	pink	Front wiper motor
59	30	pink	Heated rear window, heated door mirrors
60	—	—	Not used
61	60	yellow	Ignition relay (KL15 #1)
62	60	yellow	Ignition relay (KL15 #2)

Relay	Circuits switched
R11	Headlamp dip beam
R12	Heated door mirrors (if CAT 1 alarm is fitted), power outlet (if CAT 1 alarm is not fitted)
R13	Headlamp main beam
R14	Horn
R15	Daytime running lamps
R16	Programmable fuel fired heater
R17	Heated rear windows and heated door mirrors (or heated rear window left-hand side if Cat 1 alarm is fitted)
R18	Heated rear window right-hand side if Cat 1 alarm is fitted
R19	Power feed (KL15 #2)
R20	PJB KL15 (Start-Stop only)
R21	Power feed (KL15 #1)
R22	Heated windscreen right-hand side
R23	Windscreen wiper high and low function
R24	Rear window wiper
R25	Windscreen wiper on and off function
R26	Heated windscreen left-hand side

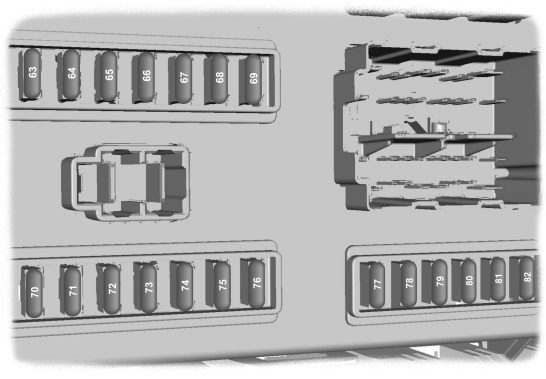

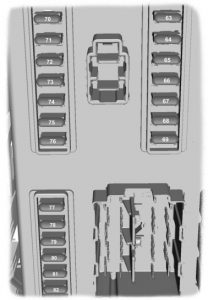

Fuse	Ampere rating	Colour	Circuits protected
63	5	tan	Rear parking aid, rain sensor
64	2	grey	Acceleration pedal demand sensor
65	15	blue	Brake lamp switch
66	5	tan	Instrument cluster, PATS supply, tachograph, instrument panel switch illumination
67	15	blue	Washer pump
68	10	red	Restraints control module
69	20	yellow	Exterior lamp switch (KL15)
70	20	yellow	Battery backed sounder
71	5	tan	Exterior lamp switch (KL30)
72	10	red	Battery saver supply, OBDII (KL30)
73	15	blue	Radio, navigation unit and phone supply
74	5	tan	Instrument cluster, fuel-fired booster heater timer, remote keyless entry supply, interior motion sensor (KL30)
75	7,5	brown	Side lamps right-hand side
76	7,5	brown	Side lamps left-hand side
77	5	tan	Ignition switch supply, battery disconnect switch coils supply
78	15	blue	Central locking
79	7,5	brown	Number plate lamp, side markers
80	15	blue	Front fog lamps
81	10	red	Rear fog lamps
82	3	violet	Audio and instrument cluster ignition feed

Fuse	Ampere rating [A]	Colour	Circuits protected	Location
83	10	red	Trailer tow module	Left-hand side footwell
84	7,5	brown	DPF glow plug sensing	Below the engine compartment junction box

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
