Ford Transit mk8 (from 2015) – fuse box diagram (EU version)
Year of production: 2015, 2016, 2017, 2018
Engine compartment fuse box
Ford Transit – fuse box diagram – engine compartment
| Fuse |
Ampere rating [A] |
Circuits protected |
| F1 |
10 |
Selective Catalytic Reduction |
| F2 |
15 |
Selective Catalytic Reduction |
| F3 |
15 |
Selective Catalytic Reduction |
| F4 |
10 |
Selective Catalytic Reduction |
| F5 |
3 |
Diesel particulate filter vaporizer. Glow plug monitor |
| F6 |
3 |
Anti-lock brake system. Stability assist. Ignition |
| F7 |
7,5 |
Powertrain control module |
| F8 |
20 |
Cooling fan |
| F9 |
30 |
Left-hand windshield wipe |
| F10 |
30 |
Right-hand windshield wiper |
| F11 |
10 |
Air conditioning clutch |
| F12 |
20 |
Diesel particulate filter vaporizer glow plug |
| F13 |
— |
Not used |
| F14 |
3 |
Selective Catalytic Reduction – ignition |
| F15 |
— |
Not used |
| F16 |
— |
Not used |
| F17 |
— |
Not used |
| F18 |
40 |
Anti-lock brake system. Stability assist pump |
| F19 |
30 |
Starter solenoid |
| F20 |
60 |
Glow plugs |
| F21 |
60 |
Ignition relay 3 |
| F22 |
— |
Not used |
| F23 |
— |
Not used |
| F24 |
7,5 |
Fuel injection pump |
| F25 |
— |
Not used |
| F26 |
— |
Not used |
| F27 |
— |
Not used |
| F28 |
— |
Not used |
| F29 |
— |
Not used |
| F30 |
40 |
Cooling fan 1 |
| F31 |
40 |
Cooling fan 2 |
| F32 |
60 |
Windshield dual wiper motors |
| F33 |
20 |
Start-Stop auxiliary water pump |
| F34 |
— |
Not used |
| F35 |
15 |
Powertrain control system supply |
| F36 |
15 |
Sensor NOXI 2 |
| F37 |
7,5 |
Volume Control Valve |
| F38 |
7,5 |
Mass air flow sensor |
| F39 |
15 |
Diesel pump vaporizer |
| Relay |
Circuits switched |
| R1 |
Ignition |
| R2 |
Starter motor |
| R3 |
Rear window wiper |
| R4 |
Not used |
| R5 |
Cooling fan |
| R6 |
Windshield wiper – on and off |
| R7 |
Windshield wiper – low and high speed |
| R8 |
Not used |
| R9 |
Not used |
| R10 |
Air conditioning clutch |
| R11 |
Fuel vaporizer system glow plug |
| R12 |
Fuel injection pump |
| R13 |
All-wheel drive pump |
| R14 |
Econetic |
| R15 |
Low and high speed cooling fan |
| R16 |
Selective Catalytic Reduction |
| R17 |
Powertrain control module |
| R18 |
High speed cooling fan |

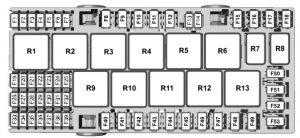

Passenger compartment fuse panel
Ford Transit – fuse box diagram – passenger compartment
| Fuse |
Ampere rating [A] |
Circuits protected |
| F1 |
10 |
Airbag module |
| F2 |
20 |
Heated rear window |
| F3 |
10 |
Heated exterior mirrors |
| F4 |
— |
Not used |
| F5 |
— |
Not used |
| F6 |
5 |
Tachograph |
| F7 |
10 |
Battery sensor |
| F8 |
40 |
AC power outlet socket |
| F9 |
— |
Not used |
| F10 |
30 |
Driver power seat |
| F11 |
30 |
Passenger power seat |
| F12 |
30 |
Power step |
| F13 |
— |
Not used |
| F14 |
5 |
Tracking and blocking control module |
| F15 |
40 |
Powertrain control module battery relay |
| F16 |
40 |
Powertrain control module power relay |
| F17 |
— |
Not used |
| F18 |
30 |
Anti-lock brake system valves. Stability assist valves |
| F19 |
5 |
Tachograph |
| F20 |
5 |
Heated exterior mirror relay. Heated windshield relay |
| F21 |
— |
Not used |
| F22 |
15 |
Passenger compartment fuse panel |
| F23 |
7,5 |
Air conditioning control module |
| F24 |
5 |
Headlamp leveling |
| F25 |
7,5 |
Interior lighting |
| F26 |
10 |
Heated exterior mirrors |
| F27 |
20 |
Heated front seats |
| F28 |
20 |
Cornering lamps |
| F29 |
10 |
Rear parking aid camera. Lane keeping system. Electro mirror |
| F30 |
5 |
Adaptive cruise control |
| F31 |
— |
Not used |
| F32 |
10 |
Interior lighting |
| F33 |
20 |
All wheel drive module |
| F34 |
20 |
Rear window wiper |
| F35 |
5 |
Power folding mirrors |
| F36 |
20 |
Horn |
| F37 |
7,5 |
SYNC module |
| F38 |
5 |
Blower motor. Horn relay. Windshield wiper relay |
| F39 |
7,5 |
Remote keyless entry. Battery. Power windows. Rear heating, ventilation and air conditioning |
| F40 |
40 |
Front blower motor |
| F41 |
40 |
Rear blower motor |
| F42 |
30 |
Heated rear window |
| F43 |
30 |
Trailer socket |
| F44 |
60 |
Auxiliary power points |
| F45 |
— |
Not used |
| F46 |
30 |
Power windows |
| F47 |
20 |
Cigar lighter socket |
| F48 |
20 |
Rear auxiliary power points |
| F49 |
20 |
Front auxiliary power points |
| F50 |
60 |
Ignition relay 1 |
| F51 |
60 |
Ignition relay 2 |
| F52 |
40 |
Left-hand heated windshield element |
| F53 |
40 |
Right-hand heated windshield element |
| Relay |
Circuits switched |
| R1 |
Fuel fired booster heater |
| R2 |
Auxiliary power points |
| R3 |
Not used |
| R4 |
Ignition 2 |
| R5 |
Power windows |
| R6 |
Ignition 1 |
| R7 |
Horn |
| R8 |
Not used |
| R9 |
Front blower motor |
| R10 |
Rear blower motor |
| R11 |
Heated rear window. Heated exterior mirrors |
| R12 |
Left-hand heated windshield element |
| R13 |
Right-hand heated windshield element |

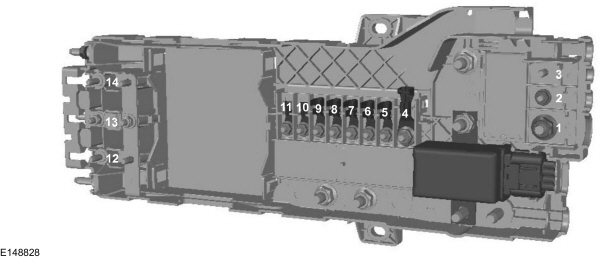

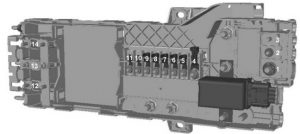

Pre-fuse box
Ford Transit – fuse box diagram – pre fuse box
| Fuse |
Ampere rating [A] |
Circuits protected |
| F1 |
470 |
Engine compartment fuse box. Starter motor. Alternator |
| F2 |
100 |
Passenger compartment fuse panel. Body control module fuse box |
| F3 |
40 |
Powertrain control module. Anti-lock brake system |
| F4 |
200 |
Passenger compartment fuse panel |
| F5 |
100 |
Passenger compartment fuse panel |
| F6 |
80 |
Cabin heater |
| F7 |
80 |
Heated windshield |
| F8 |
100 |
Engine junction box |
| F9 |
100 |
Passenger compartment fuse panel |
| F10 |
60 |
Passenger compartment fuse panel supply |
| F11 |
60 |
Passenger compartment fuse panel supply |
| F12 |
60 |
Auxiliary power point 1 |
| F13 |
60 |
Auxiliary power point 2 |
| F14 |
60 |
Auxiliary power point 3 |

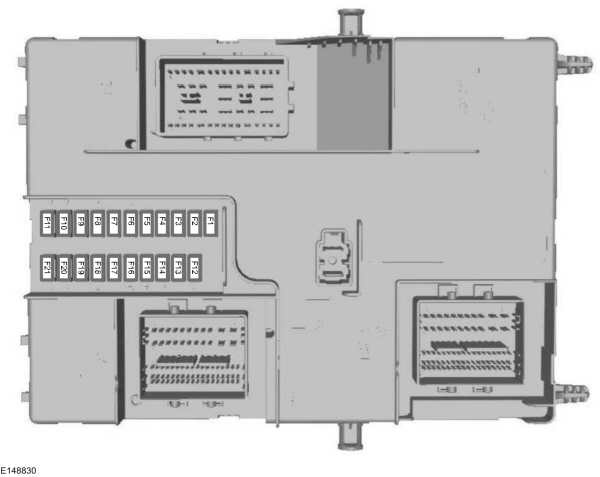

Body control module fuse box
Ford Transit – fuse box diagram – body control module box
| Fuse |
Ampere rating [A] |
Circuits protected |
| F1 |
15 |
Central locking system 2 |
| F2 |
15 |
Central locking system 1 |
| F3 |
15 |
Ignition switch |
| F4 |
5 |
Parking assist control module |
| F5 |
5 |
Rain sensor module |
| F6 |
15 |
Windshield washer pump |
| F7 |
7,5 |
Exterior mirrors |
| F8 |
15 |
Front fog lamps |
| F9 |
10 |
Right-hand high beam |
| F10 |
10 |
Left-hand high beam |
| F11 |
25 |
Right-hand exterior lamps. Left-hand side lamps |
| F12 |
20 |
Battery backup sounder. Anti-theft alarm horn |
| F13 |
15 |
On-board diagnostic. Battery saver |
| F14 |
25 |
Turn signal indicator |
| F15 |
25 |
Left-hand exterior lamps. Right-hand side lamp. Central high mounted brake lamp |
| F16 |
20 |
Audio unit. Navigation unit |
| F17 |
7,5 |
Instrument panel cluster. Heater control |
| F18 |
10 |
Headlamp switch module. Steering wheel module |
| F19 |
5 |
Front control/display interface module |
| F20 |
5 |
Ignition passive anti-theft system |
| F21 |
5 |
Accessory relay |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
