Geo Prizm (1996 – 1997) – fuse box diagram

13 August 2018 admin Geo, Prizm 0

Geo Prizm (1996 – 1997) – fuse box diagram

Year of production: 1996, 1997

Driver’s Side Instrument Panel Fuse Block

Your fuse block is beneath the instrument panel on the driver’s ’side near the door.

Geo Prizm – fuse box diagram – instrument panel (driver’s side)
Geo Prizm – fuse box diagram – instrument panel (driver’s side)
Item Name Usage
1 — Not Used
2 IGN Multiport Fuel Injection System, Sequential Multiport Fuel Injection System, Engine Cooling Fans, Discharge Warning Light, Airbs
3 STOP Stoplamps, High-Mounted Stoplamp, Cruise Control System, Automatic Transmission Shift Lock System, Anti-Lock Brake System
4 — Not Used
5 CIG and RADIO Cigarette Lighter, Digital Clock Display, Air Conditioning System, Radio, Cassette Tape Player, Power Rearview Mirrors, Automatic Transmission Shift Lock System, Theft- Deterrent System, Airbags
6 ECU-B Daytime Running Lamp System, Cruise Control System
7 TURN Turn Signal Lamps, Emergency Flashers
8 GAGE Gages and Meters, Service Reminder Indicators (except discharge and open door warning lights), Back-up Lamps, Air Conditioning System, Daytime Running Lamp System, Electronically Controlled Automatic Transmission System
9 TAIL Taillamps, Parking Lamps, License Plate Lamps, Instrument Panel Lights, -Daytime Running Lamp System
10 DEF-I/UP Multiport Fuel Injection System, Sequential Multiport Fuel Injection System
11 ECU-IG Starting System, Anti-Lock Brake System, Automatic Transmission Shift Lock System
12 WIPER Windshield Wipers and Washer, Rear Window Wiper and Washer
A OBD On-Board Diagnosis System
B P/W Power Windows, Power Door Lock System, Electric Sun Roof
C DEFOG Rear Window Defogger

Engine Compartment Fuse Block

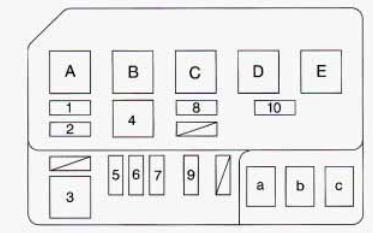

Geo Prizm – fuse box diagram – engine compartment
Geo Prizm – fuse box diagram – engine compartment
Item Name Usage
1 DOME Interior Lamp, Luggage Compartment Lamp, Trunk Lamp, Clock, Open Door Warning Lamp, Radio, Cassette Tape Player, Anti-Lock Brake Warning System
2 HAZ-HORN Emergency Flashers, Horns
3 AM 2 Starting System
4 FAN Electric Cooling Fan
5 SPARE Spare Fuse
6 SPARE Spare Fuse
7 SPARE Spare Fuse
8 ALT-S Charging System
9 DRL Daytime Running Lamp System
10 EFI Multiport Fuel Injection System, Sequential Multiport Fuel Injection System, Electronically Controlled Automatic Transmission System
a AM 1 Starting System, Airbags
b ALT Taillamps
c ABS Anti-Lock Brake System
A HORN
B FAN NO. 1
C ENGINE MAIN
D HEAD
E EFI

Engine Compartment Fuse/Relay Block

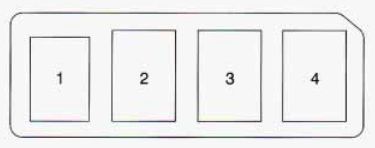

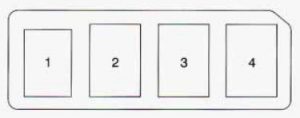

Geo Prizm – fuse box diagram – engine compartment (relay box)
Geo Prizm – fuse box diagram – engine compartment (relay box)
Item Name Usage
1 CDS
2 AC MG
3 AC FAN NO. 3 Air Conditioner Fan Relay #3
4 AC FAN NO. 2 Air Conditioner Fan Relay #2

Engine Compartment Fuse Block (Passenger’s Side)

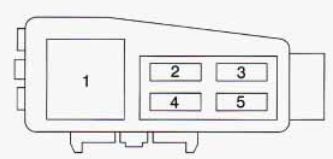

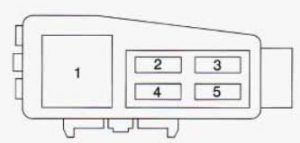

Geo Prizm – fuse box diagram – engine compartment (passenger’s side)
Geo Prizm – fuse box diagram – engine compartment (passenger’s side)
Item Name Usage
1 DRL NO. 2
2 HEAD (LH-UPR) Left-Hand Headlamp (high beam)
3 HEAD (LH-LWR) Left-Hand Headlamp (low beam)
4 HEAD (RH-UPR) Right-Hand Headlamp (high beam)
5 HEAD (RH-LWR) Right-Hand Headlamp (low beam)

Passenger’s Side Kick Panel

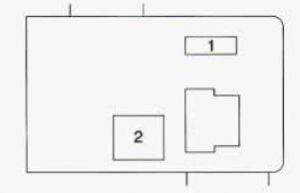

Geo Prizm – fuse box diagram – passenger’s side (kick panel) – box 1
Geo Prizm – fuse box diagram – passenger’s side (kick panel) – box 1
Item Name Usage
1 A/C Air Conditioning System
2 40 Air Conditioning System



There is one fuse located underneath the carpet on the passenger’s side of the vehicle.

Geo Prizm – fuse box diagram – passenger’s side (kick panel) box 2
Geo Prizm – fuse box diagram – passenger’s side (kick panel) box 2
Item Name Usage
1 ABS Anti-Lock Brake System

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
