GMC Envoy (2003 – 2004) – fuse box diagram

15 August 2018 admin Envoy, GMC 0

GMC Envoy (2003 – 2004) – fuse box diagram

Year of production: 2003, 2004

Engine Compartment Fuse Block

The fuse block is located under the hood in the engine compartment on the driver’s side of the vehicle.

L6 Engine

GMC Envoy mk2 – fuse box diagram – engine compartment (L6 engine)
GMC Envoy mk2 – fuse box diagram – engine compartment (L6 engine)
Fuses Usage
1 Electrically-Controlled Air Suspension
2 Passenger’s Side High-Beam Headlamp
3 Passenger’s Side Low-Beam Headlamp
4 Back-Up-Trailer Lamps
5 Driver’s Side High-Beam Headlamp
6 Driver’s Side Low-Beam Headlamp
7 Wash
8 Automatic Transfer Case
9 Windshield Wipers
10 Powertrain Control Module B
11 Fog Lamps
12 Stop Lamp
13 Cigarette Lighter
14 Ignition Coils
15 Air Suspension Ride
16 TBD-Ignition 1
17 Crank
18 Air Bag
19 Electric Brake
20 Cooling Fan
21 Horn
22 Ignition E
23 Electronic Throttle Control
24 Instrument Panel Cluster, Driver Information Center
25 Automatic Shift Lock Control System
26 Engine 1
27 Back-Up
28 Powertrain Control Module 1
29 Oxygen Sensor
30 Air Conditioning
31 Truck Body Controller
32 Trailer
33 Anti-Lock Brakes (ABS)
34 Ignition A
35 Blower Motor
36 Ignition B
50 Passenger’s Side Trailer Turn
51 Driver’s Side Trailer Turn
52 Hazard Flashers



Relays Usage
37 Blank
38 Rear Window Washer
39 Fog Lamps
40 Horn
41 Fuel Pump
42 Windshield Wipers/Washer
43 High-Beam Headlamp
44 Air Conditioning
45 Cooling Fan
46 Headlamp Driver Module
47 Starter



Miscellaneous Usage
48 Instrument Panel Battery
49 Blank

V8 Engine

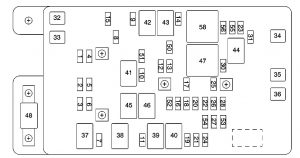

GMC Envoy mk2 – fuse box – engine compartment (V8 engine)
GMC Envoy mk2 – fuse box – engine compartment (V8 engine)
Fuses Usage
1 Electrically-Controlled Air Suspension
2 Passenger’s Side High-Beam Headlamp
3 Passenger’s Side Low-Beam Headlamp
4 Back-Up-Trailer Lamps
5 Driver’s Side High-Beam Headlamp
6 Driver’s Side Low-Beam Headlamp
7 Wash
8 Automatic Transfer Case
9 Windshield Wipers
10 Powertrain Control Module B
11 Fog Lamps
12 Stop Lamp
13 Cigarette Lighter
14 Ignition Coils
15 Cannister Vent
16 TBD-Ignition 1
17 Crank
18 Air Bag
19 Electric Brake
20 Cooling Fan
21 Horn
22 Ignition E
23 Electronic Throttle Control
24 Instrument Panel Cluster, Driver Information Center
25 Automatic Shift Lock Control System
26 Engine 1
27 Back-Up
28 Powertrain Control Module 1
30 Air Conditioning
31 Truck Body Controller 1
32 Trailer
33 Anti-Lock Brakes (ABS)
34 Ignition A
35 Blower Motor
36 Ignition B
50 Passenger’s Side Trailer Turn
51 Driver’s Side Trailer Turn
52 Hazard Flashers
53 Oxygen Sensor Bank A
54 Oxygen Sensor Bank B
55 Injector Bank A
56 Injector Bank B



Relays Usage
37 Headlamp Washer
38 Rear Window Washer
39 Fog Lamps
40 Horn
41 Fuel Pump
42 Windshield Wipers/Washer
43 High-Beam Headlamp
44 Air Conditioning
45 Cooling Fan
46 Headlamp Driver Module
47 Starter
58 Ignition 1



Miscellaneous Usage
48 Instrument Panel Battery

Rear Underseat Fuse Block

Envoy

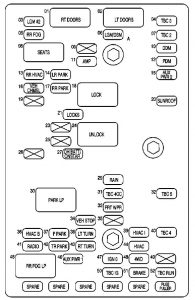

GMC Envoy mk2 – fuse box diagram – rear underseat fuse block (Envoy)
GMC Envoy mk2 – fuse box diagram – rear underseat fuse block (Envoy)
Fuses Usage
01 Right Door Control Module
02 Left Door Control Module
03 Liftgate Module 2
04 Truck Body Controller 3
05 Rear Fog Lamps
06 Liftgate Module/Driver Seat Module
07 Truck Body Controller 2
08 Power Seats
09 Blank
10 Driver Door Module
11 Amplifier
12 Passenger Door Module
13 Rear Climate Controls
14 Left Rear Parking Lamps
15 Auxiliary Power 2
16 Vehicle Center High-Mounted Stop Lamp
17 Right Rear Parking Lamps
18 Locks
19 Blank
20 Sunroof
21 Lock
23 Blank
24 Unlock
25 Blank
26 Blank
27 OH Battery/OnStar® System
29 Rainsense™ Wipers
30 Parking Lamps
31 Truck Body Controller 4 Cruise Control
32 Truck Body Controller 5
33 Front Wipers
34 Vehicle Stop
35 Blank
36 Heat Ventilation Air Conditioning B
37 Front Parking Lamps
38 Left Turn Signal
39 Heat Ventilation Air Conditioning 1
40 Truck Body Controller 4
41 Radio
42 Trailer Park
43 Right Turn Signal
44 Heat Ventilation Air Conditioning
45 Rear Fog Lamps
46 Auxiliary Power 1
47 Ignition 0
48 Four-Wheel Drive
49 Blank
50 Truck Body Controller Ignition
51 Brakes
52 Truck Body Controller Run

Envoy XL

GMC Envoy mk2 – fuse box diagram – rear underseat fuse block (Envoy XL)
GMC Envoy mk2 – fuse box diagram – rear underseat fuse block (Envoy XL)
Fuses Usage
01 Right Door Control Module
02 Left Door Control Module
03 Liftgate Module 2
04 Truck Body Controller 3
05 Rear Fog Lamps
06 Liftgate Module/Driver Seat Module
07 Truck Body Controller 2
08 Power Seats
09 Blank
10 Driver Door Module
11 Amplifier
12 Passenger Door Module
13 Rear Climate Controls
14 Left Rear Parking Lamps
15 Auxiliary Power 2
16 Vehicle Center High-Mounted Stop Lamp
17 Right Rear Parking Lamps
18 Locks
19 Blank
20 Sunroof
21 Lock
22 Retained Accessory Power
23 Blank
24 Unlock
25 Blank
26 Blank
27 OH Battery/OnStar® System
28 Sunroof
29 Rainsense™ Wipers
30 Parking Lamps
31 Truck Body Controller 4 Cruise Control
32 Truck Body Controller 5
33 Front Wipers
34 Vehicle Stop
35 Blank
36 Heat Ventilation Air Conditioning B
37 Front Parking Lamps
38 Left Turn Signal
39 Heat Ventilation Air Conditioning 1
40 Truck Body Controller 4
41 Radio
42 Trailer Park
43 Right Turn Signal
44 Heat Ventilation Air Conditioning
45 Rear Fog Lamps
46 Auxiliary Power 1
47 Ignition 0
48 Four-Wheel Drive
49 Blank
50 Truck Body Controller Ignition
51 Brakes
52 Truck Body Controller Run

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
