GMC Jimmy (1993) – fuse box diagram
Year of production: 1993

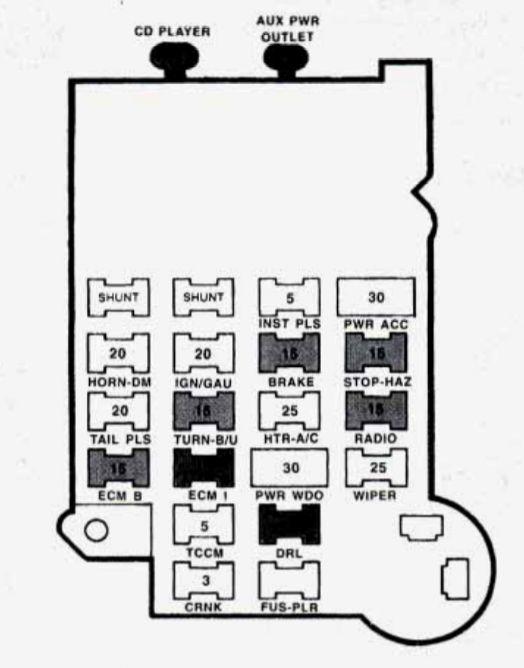

Fuses and Circuit breakers
| Name | Circuit protected | Ampere rating [A] | Circuit Breaker |
| Inst. Lps. | Instrument Panel Lights, Headlight Warning Buzzer, Rear Defogger Switch Light, Ash Tray Light, Four Wheel Drive Indicator Light, RR Wiper SW Lamp, Fog Lamp Switch Light | 5 | |
| Pwr. Accy | Power Door Locks, Rear Defogger, CD Player, Electric Shift Transfer Case, Power Seat | 30 | |
| Horn-DM | Horn, Dome Lights, Glove Box Light, Courtesy Lights, Clock, Lighter, Lighted Vanity Mirror, Fog Lamp Relay, Outside Rearview Mirror, Liftgate Release Solenoid | 20 | |
| Ign.-Gages | Indicator Lights and Gages, Rear Defogger Relay, Cruise Control, Four Wheel Drive Indicator Light, Rear Defogger Timer, Seat Belt Timer | 20 | |
| Crank | Engine Control Module | 3 | |
| Stop-Haz. | Stop Lights, Hazard Warning Lights, Chime Module | 15 | |
| Tail Lps | Light Switch, TailIPark Lights, Digital Cluster, License Lamp | 20 | |
| Turn-B/U | Turn Signals & Backup Lights | 15 | |
| Heater/A/C | Heating and Air Conditioning | 25 | |
| Radio | Radio, Inside Rearview Mirror Map Lights, Rear Wiper, Rear Washer | 15 | |
| ECM B | Engine Control Module, Fuel Pump | 15 | |
| ECM I | Engine Control Module | 10 | |
| Pwr. Wndw. | Power Windows | 30 | |
| Wiper | Windshield Wipers and Washers | 25 | |
| Brake | Four Wheel Antilock Brake Module, Digital Ratio Adapter Module, Speedometer, Auto Transmission Converter Clutch | 15 | |
| DRL | Daytime Running Light Relay (Canada Only) | 10 | |
| Trailer* | Trailer Wiring Harness | 30 | |
| CD Player** | CD Player | 10 | |
| TCCM | Electric Shift Transfer Case Module | 5 | |
| Aux. Pwr** | Aux. Pwr. Outlet | 10 | |
| *In-line fuse**Fuse is attached to fuse block. | |||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
