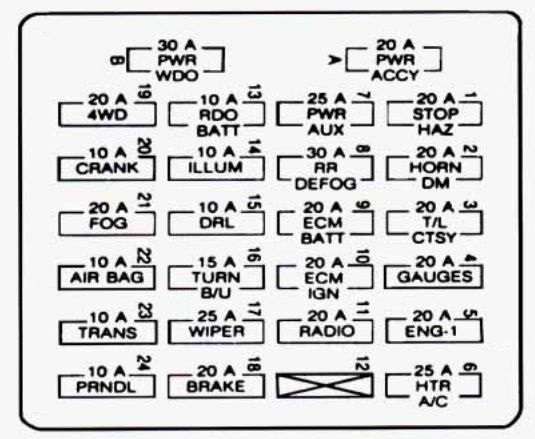

GMC Jimmy (1995) – fuse box diagram
Year of production: 1995
Fuses and Circuit breakers
| Name | Ampere rating [A] | Circuit protected |
| PWR ACCY | 20 | Power Door Locks, Power Seat, Power Seat Lumbar, RKE |
| PWR WDO | 30 | Power Windows |
| STOP HAZ | 20 | Stop Lamps, Hazard Lamps, Chime, CHMSL Relay, CHMSL Lamp |
| HORN DM | 20 | Dome Lamps, Cargo Lamps, Visor Vanity Mirror, Cigarette Lighter, Inside Rearview Mirror Lamp, Overhead Console Lamps, Glove Box Lamp, Horns, Horn Relay, IP Courtesy Lamps, Power Outside Rearview Mirror, Liftglass Release Motor, Illuminated Entry Module |
| TIL CTSY | 20 | Park Lamps, License Plate Lamps, Electric Shift Transfer Case Module, Under Hood Lamp, Rear Wiper, Fog Lamp Relay, Door Switch Lamp |
| GAUGES | 20 | Alternator Field, VTC, A/C Compressor Relay, Cluster Chime Module, DRL Relay Coil, Four-wheel Drive Indictor Lamp, DRL Module, Rear Defog Timer, TCCM Ignition, SIR Redundant Ignition, RKE Ignition |
| ENG I | 20 | 02 Sensor Heat Dr, EGR, Cam Sensor, CANN, Purge |
| HTR A/C | 25 | Heater-A/C Blower Motor, Temperature Door Motor, AIC Compressor Clutch, HI Blower Relay Coil, Timer Relay Coil |
| PWR AUX | 25 | Power Auxiliary Outlets. ALDL |
| RR DEFOG | 30 | Rear Window Defogger |
| ECM BATT | 20 | PCM/VCM Battery, ABS Battery (LN2), Fuel Pump |
| ECM IGN | 20 | PCMIVCM Ignition, Injectors, Crank Sensor, Coil Driver Module |
| RADIO | 20 | Radio, Inside Rearview Mirror Map Lamp, Overhead Console Reading Lamps, Rear Wiper, Rear Washer, Overhead Console Display |
| RDO BATT | 10 | Clock, Radio Battery, CD Player |
| ILLUM | 10 | Cluster Illumination, Ash Tray Lamp, Radio Illumination, Heater Lamp, Four-wheel Drive Illumination, Chime Module, Fog Lamp Illumination, Rear Wiper Switch, Rear Defog Switch Illumination, Lift Glass Release Switch Illumination, Overhead Console Illumination |
| DRL | 10 | Daytime Running Lamps |
| TURN-B/U | 15 | Turn Signal and Back-up Lamps |
| WIPER | 25 | Windshield Washer. Windshield Wiper Mot |
| BRAKE | 20 | DRAC, Anti-Lock Braking System, Cruise Control |
| 4WD | 20 | Electric Shift Transfer Case |
| CRANK | 10 | Crank Signa |
| FOG | 20 | Fog Lamp Relay, Fog Lamp |
| AIR BAG | 10 | Air Bag Module |
| TRANS | 10 | 4L60E Automatic Transmission |
| PRNDL | 10 | PRNDL Power |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
