GMC Sierra (from 2014) – fuse box diagram
Year of production: 2014, 2015, 2016

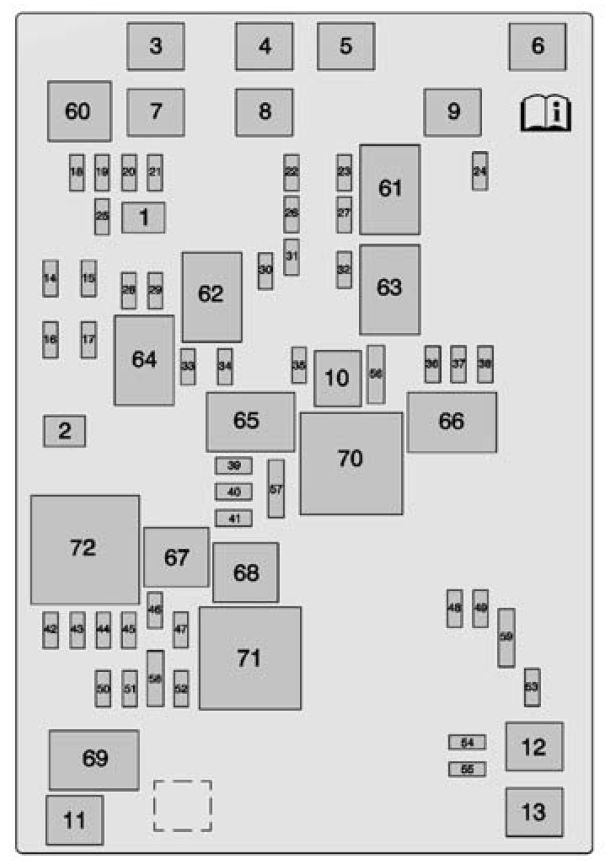

Engine Compartment Fuse Block
The engine compartment fuse block is in the engine compartment, on the driver side of the vehicle.
Micro J-Case Fuses | Usage |
1 | Trailer Brake |
2 | Trailer Battery |
J-Case Fuses | Usage |
3 | Antilock Brake System Pump |
4 | Instrument Panel BEC 1 |
5 | Spare |
6 | 4WD Trec |
7 | Spare |
8 | Instrument Panel BEC 2 |
9 | Spare |
10 | Rear Window Defogger |
11 | Starter |
12 | Cooling Fan 1 |
13 | Cooling Fan 2 |
Mini Fuses (2 Pin) | Usage |
14 | Trailer Stop/Turn Lamps, Left |
15 | Trailer Parking Lamps |
16 | Trailer Back-up Lamp |
17 | Trailer Stop/Turn Lamps, Right |
Micro Fuses (2 Pin) | Usage |
18 | Fuel Pump |
19 | Integrated Chassis Control Module |
20 | Electronic Suspension Control Module |
21 | Fuel Pump Power Module |
22 | Upfitter Switch 1 |
23 | Upfitter 2 |
24 | Front Wiper |
25 | Antilock Brake System Valves |
26 | Upfitter SW 2 |
27 | Upfitter SW 3 |
28 | Parking Lamps, Right |
29 | Parking Lamps, Left |
30 | Upfitter 3 |
31 | Upfitter SW 4 |
32 | Upfitter 4 |
33 | Back-up Lamps |
34 | Engine Control Module Ignition |
35 | Air Conditioning Compressor Clutch |
36 | Heated Mirrors |
37 | Upfitter 1 |
38 | Center High-Mounted Stoplamp |
39 | Miscellaneous Ignition |
40 | Transmission Ignition |
41 | Fuel Pump 2 |
42 | Cooling Fan Clutch |
43 | Engine |
44 | Fuel Injectors A, Odd |
45 | Fuel Injectors B, Even |
46 | Oxygen Sensor B |
47 | Throttle Control |
48 | Horn |
49 | Fog Lamp |
50 | Oxygen Sensor A |
51 | Engine Control Module |
52 | Interior Heater |
53 | Spare |
54 | Aeroshutter |
55 | Front Washer |
Micro Fuses (3 Pin) | Usage |
56 | Air Conditioning Compressor/Battery Regulated Voltage Control |
57 | Air Conditioning CompressorModule/Battery Pack |
58 | Transmission Control Module/Engine Control Module |
59 | Headlamps |
Micro Relays | Usage |
60 | Fuel Pump |
61 | Upfitter 2 |
62 | Upfitter 3 |
63 | Upfitter 4 |
64 | Trailer Parking Lamps |
65 | Run/Crank |
66 | Upfitter 1 |
67 | Fuel Pump 2 |
68 | Air Conditioning Control |
69 | Starter |
70 | Rear Window Defogger |
71 | Engine Control Module |
Solid State Relay | Usage |
72 | Cooling Fan Clutch |

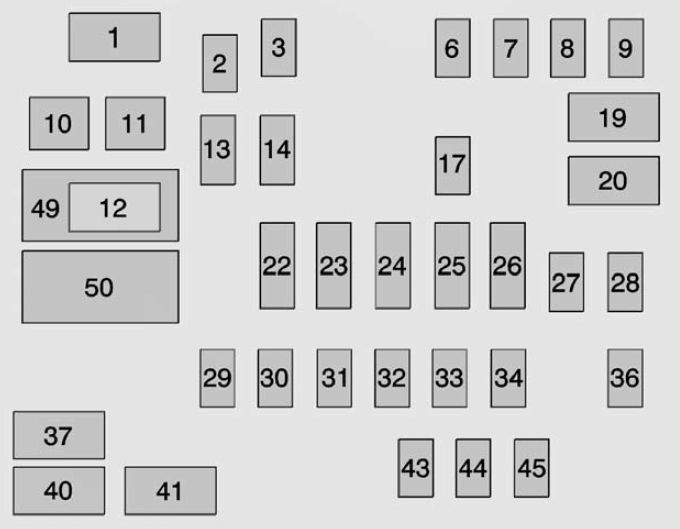

Instrument Panel Fuse Block (Left)
The left instrument panel fuse block access door is on the driver side edge of the instrument panel.
Number | Usage |
1 | Accessory Power Outlet 2 |
2 | SEO Retained Accessory Power |
3 | Universal Garage Door Opener/Inside Rearview Mirror |
6 | Body Control Module 3 |
7 | Body Control Module 5 |
8 | Driver Window Switch/Mirror Switch |
9 | Spare |
10 | Accessory Power Outlet Retained Accessory Power |
11 | Accessory Power Outlet Battery |
12 | Accessory Power Outlet 1/Cigarette Lighter |
13 | Discrete Logic Ignition Switch |
14 | Switch Backlighting |
17 | Body Control Module 1 |
19 | Spare |
20 | Spare |
22 | Heater, Ventilation, and Air Conditioning/Auxiliary Heater, Ventilation and Air Conditioning Ignition |
23 | Instrument Cluster Ignition/Sensing Diagnostic Module Ignition |
24 | Spare |
25 | Data Link Connector/Driver Seat Module |
26 | Passive Entry Passive Start/Heater, Ventilation, and Air Conditioning |
27 | Spare |
28 | Spare |
29 | Park Enable/Electrically Adjustable Pedals |
30 | SEO |
31 | Accessory/Run Crank |
32 | Heated Steering Wheel |
33 | Spare |
34 | Instrument Cluster |
36 | Spare |
37 | Spare |
40 | Left Doors |
41 | Driver Power Seat |
43 | Left Front Heated/Cooled Seat |
44 | Right Front Heated/Cooled Seats |
45 | Spare |
49 | Retained Accessory Power/Accessory |
50 | Run/Crank |

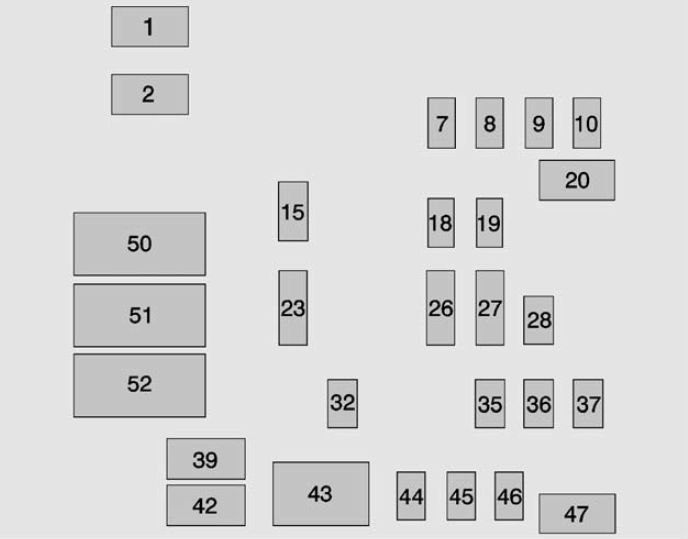

Instrument Panel Fuse Block (Right)
The right instrument panel fuse block access door is on the passenger side edge of the instrument panel.
Number | Usage |
1 | Accessory Power Outlet 3 |
2 | Accessory Power Outlet 4 |
7 | Body Control Module 4 |
8 | Body Control Module 8 |
9 | Rear Seat Entertainment |
10 | Cargo Lamp |
15 | Steering Wheel Controls |
18 | Radio |
19 | Spare |
20 | Sunroof |
23 | Airbag/Info |
26 | Export/Power Take Off/SEO Battery 1 |
27 | Obstacle Detection/USB Ports |
28 | Body Control Module 2 |
32 | SEO Battery 2 |
35 | AC Inverter |
36 | Amplifier |
37 | Spare |
39 | Rear Sliding Window |
42 | Right Door Window Motor |
43 | Front Blower |
44 | SEO |
45 | Body Control Module 6 |
46 | Body Control Module 7 |
47 | Passenger Seat |
50 | Retained Accessory Power/Accessory |
51 | Rear Sliding Window Open |
52 | Rear Sliding Window Close |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
