Honda Accord (2006) – wiring diagrams – power windows

Honda Accord (2006) – wiring diagrams – power windows

Year of productions:  2006

Power windows

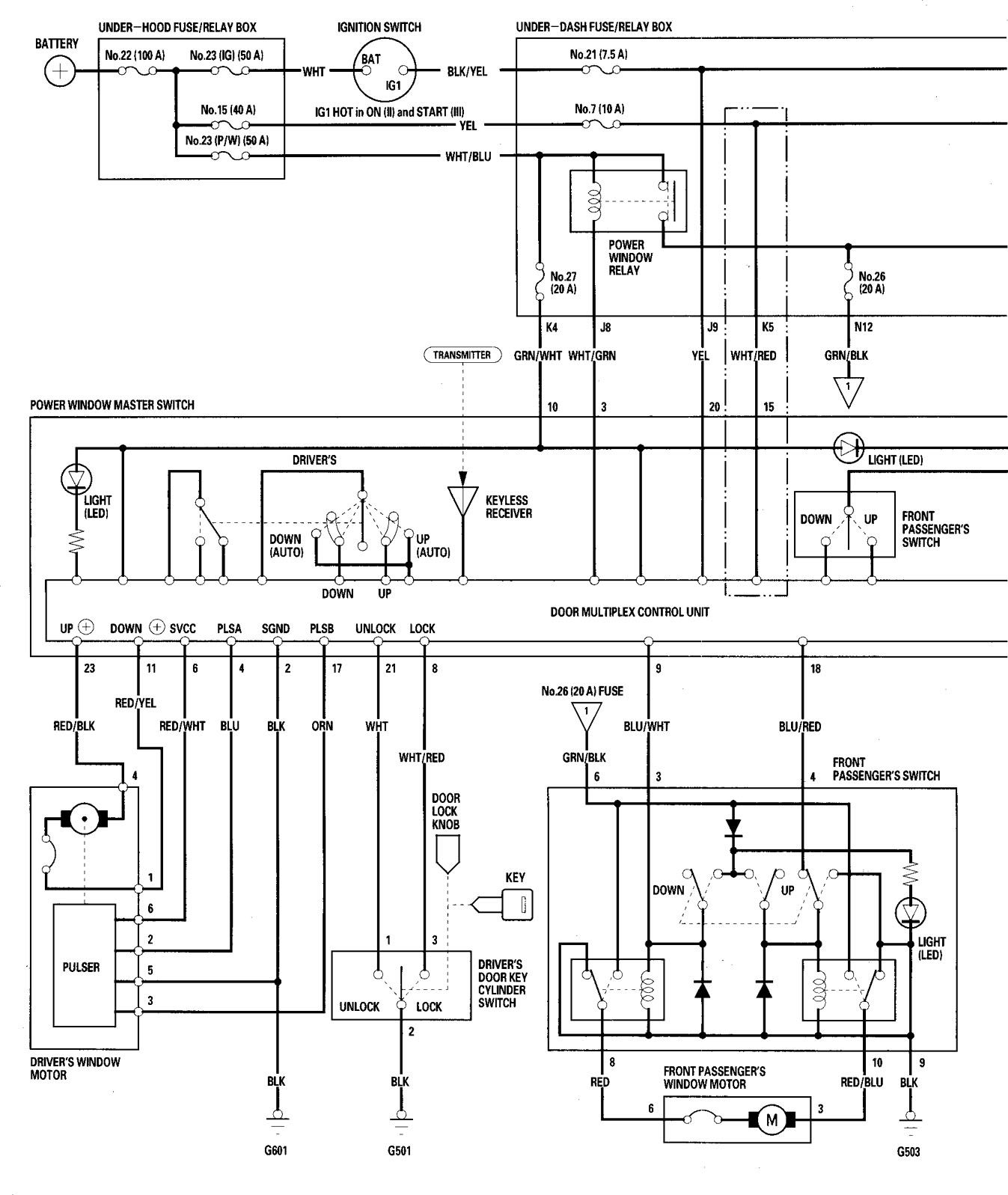

Honda Accord - wiring diagram - power windows (part 1)
Honda Accord – wiring diagram – power windows (part 1)

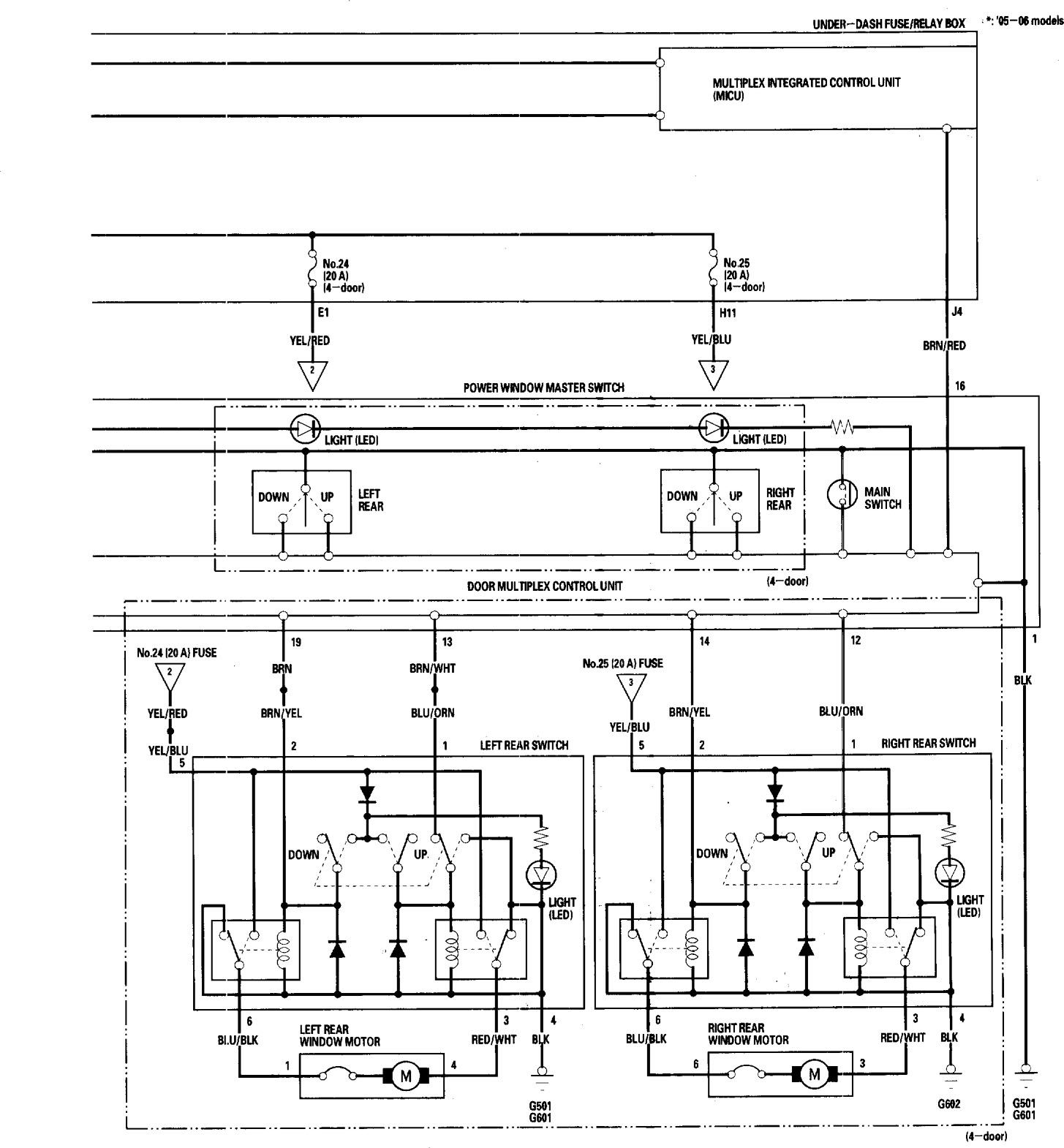

Honda Accord - wiring diagram - power windows (part 2)
Honda Accord – wiring diagram – power windows (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
