Honda Accord (2006) – wiring diagrams – sunroof

Honda Accord (2006) – wiring diagrams – sunroof

Year of productions:  2006

Sunroof

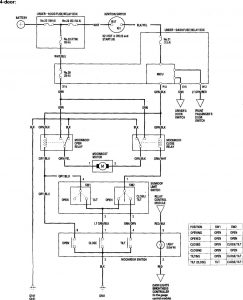

Version 1

Honda Accord - wiring diagram - sunroof
Honda Accord – wiring diagram – sunroof

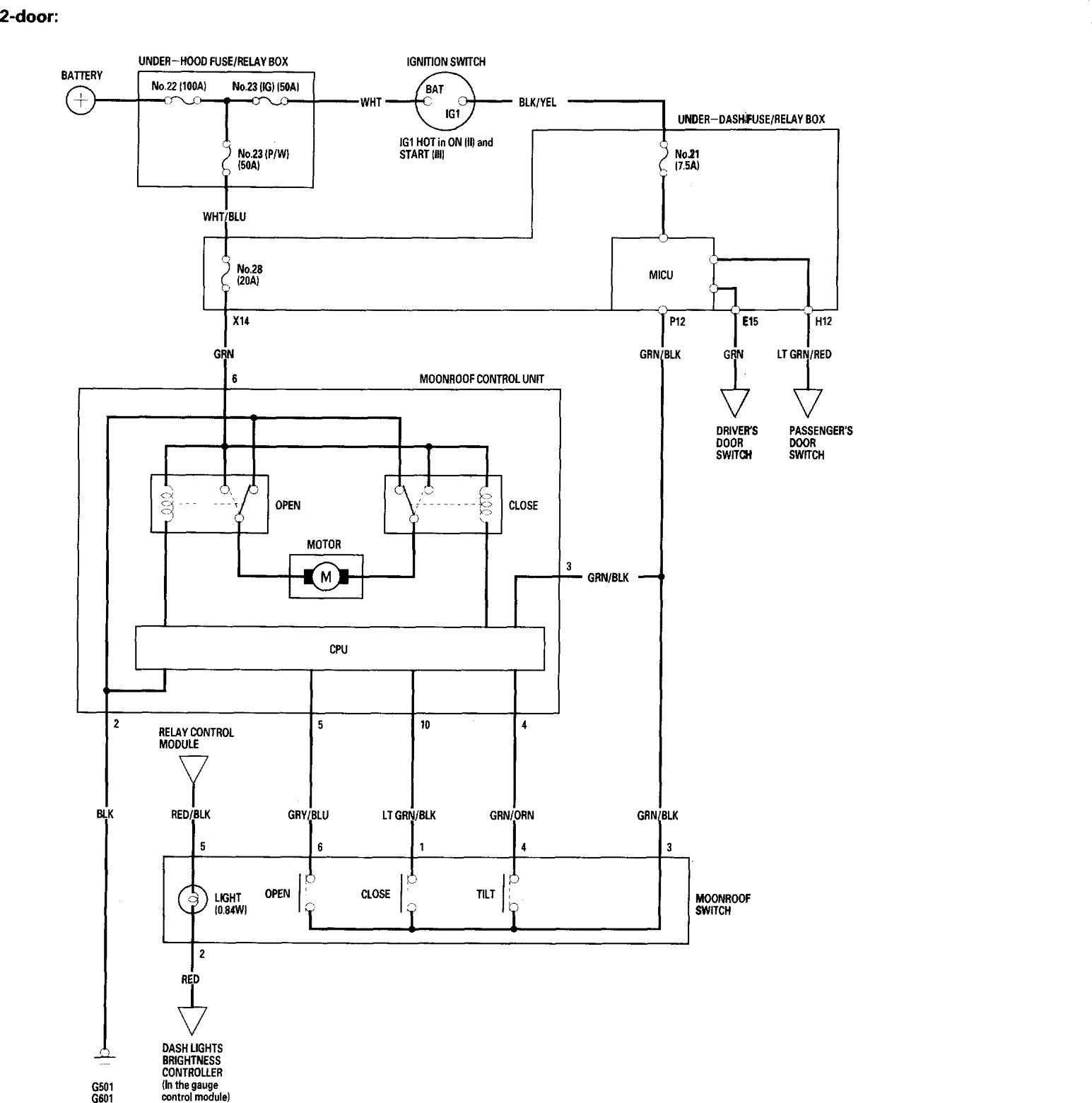

Version 2

Honda Accord - wiring diagram - sunroof
Honda Accord – wiring diagram – sunroof

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
