Honda Accord (2006) – wiring diagrams – wiper/washer

Honda Accord (2006) – wiring diagrams – wiper/washer

Year of productions:  2006

Wiper/washer

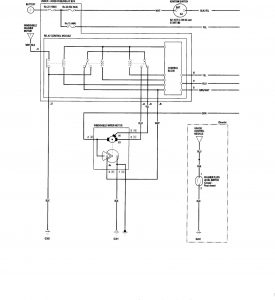

Honda Accord - wiring diagram - wiper/washer (part 1)
Honda Accord – wiring diagram – wiper/washer (part 1)

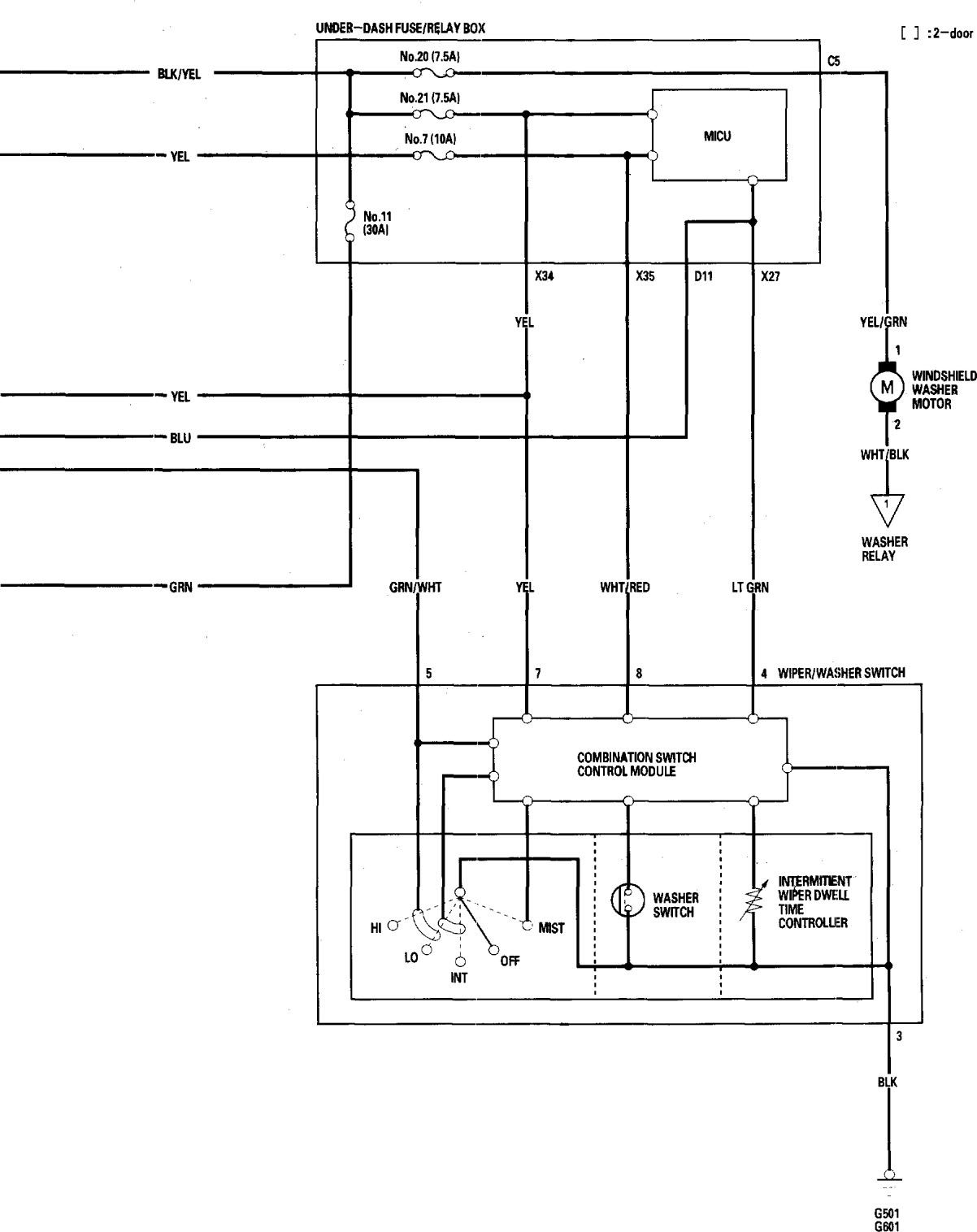

Honda Accord - wiring diagram - wiper/washer (part 2)
Honda Accord – wiring diagram – wiper/washer (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
