Honda Civic (1996 – 2000) – fuse box diagram

Honda Civic (1996 – 2000) – fuse box diagram



Year of production: 1996, 1997, 1998, 1999, 2000

Passenger compartment

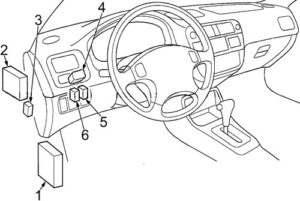

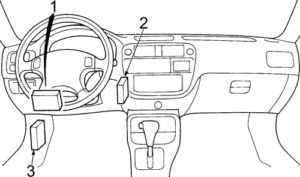

Honda Civic - fuse box diagram - passenger compartment
Honda Civic – fuse box diagram – passenger compartment
  1. Fuse Box
  2. Interlock Control Unit
  3. Transmission Control Module (TCM/CVT)
    Keyless Door Lock Control Unit

Passenger compartment fuse box

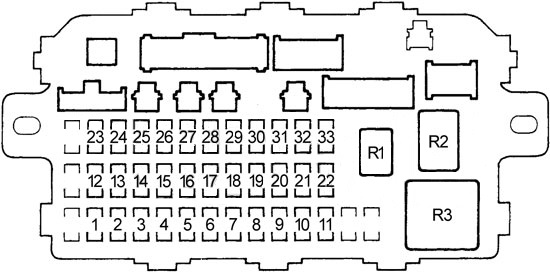

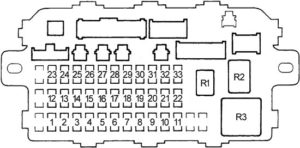

Honda Civic - fuse box diagram - passenger compartment fuse box
Honda Civic – fuse box diagram – passenger compartment fuse box
No. A Circuits
1
2
3 10 Rear Wiper, Security System
4 10 Right Headlight (High Beam), Daytime Runing Lights (DRL) Control Unit
5 10 Left Headlight (High Beam), Daytime Runing Lights (DRL) Control Unit
6 Security System
7 20 Left Rear Window Motor
8 20 Right Rear Window Motor
9 15 ‘98-‘00 (except GX): Ignition Coil
10 20 Front Passenger’s Window Motor
11 20 Driver’s Window Motor
12 7,5 Hazard Warning Switch
13 15 PGM-FI Main Relay, Supplemental Restraint System (SRS) Unit
14 7,5 Stereo Radio Tuner (’96-’98), Cruise Control Main Switch, Keyless Door Lock Control Unit (’99-’00)
15 7,5 Electrical Load Detector (ELD) Unit, Gauge Assembly, Transmission Control Module – TCM (’96-’98 CVT), PGM-FI, Vehicle Speed Sensor (VSS)
16 7,5 Rear Window Defogger (’96-’98), ABS Control Unit, Power Mirror Switch (’99-’00)
17 7,5 Power Mirrors (’96-’98), Air Delivery, Blower Controls, A/C Compressor Controls, Fans
18 7,5 Daytime Runing Lights (DRL) Control Unit
19 7,5 Back-Up Lights
20 7,5 Daytime Runing Lights (DRL) Control Unit
21 10 Right Headlight (Low Beam)
22 10 Left Headlight (Low Beam)
23 10 Supplemental Restraint System (SRS) Unit
24 7,5 Power Window Relay, Moonroof
25 7,5 Integrated Control Unit, Interlock System, Gauge Assembly
26 20 Front Wiper/Washer
27 10 ’96-’98: Accessory Power Socket
15 ’99-’00: Accessory Power Socket
28 10 ’96-’97: Stereo Radio Tuner
15 ’98: Stereo Radio Tuner
10 ’99-’00: Audio Unit
29
30 7,5 Dash & Console Lights
31 7,5 PGM-FI Main Relay, Powertrain/Engine Control Module (PCM/ECM), Integrated Control Unit
32 7,5 Parking Lights, License Plate Lights, Tail Lights
33 7,5 Interlock System
Relay
R1 Rear Window Defogger
R2 Power Window
R3 Turn Signal / Hazard



Honda Civic - fuse box diagram - passenger compartment
Honda Civic – fuse box diagram – passenger compartment
  1. Injector Control Module
  2. Cruise Control Unit
  3. Fuel Injector Relay
  4. Dash Lights Brightness Controller
  5. Starter Cut Relay
  6. Horn Relay

Engine Compartment

Honda Civic - fuse box diagram - engine compartment
Honda Civic – fuse box diagram – engine compartment
  1. Relay Box
  2. Fuse Box

Engine Compartment Fuse Box

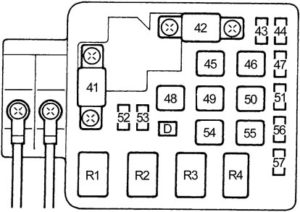

Honda Civic - fuse box diagram - engine compartment fuse box
Honda Civic – fuse box diagram – engine compartment fuse box
No. A Circuits
41 80 Power Distribution
42 40 Ignition Switch (BAT)
43 7,5 Ceiling Light, Data Link Connector
44 20 GX: PGM-FI Main Relay, Injector Control Module (Fuel Injector Relay)
15 except GX: PGM-FI Main Relay, Injector Control Module (Fuel Injector Relay)
45
46 40 Power Window Motors (Power Window Relay)
47 7,5 Audio Unit (’99-’00), Clock, PCM (VBU), Stereo Audio Tuner (’96-’98), Transmission Control Module (’96-’98), Heater Control Panel
48 30 Combination Light Switch (Headlight), Fuse: No.33
49
50 30 Rear Window Defogger (Rear Window Defogger Relay)
51 20 Power Door Lock Control Unit (’99-’00), Keyless Door Lock Control Unit (’99-’00), Moonroof
52 15 Horn System, Brake Lights, Brake Signal
53 10 Hazard Warning Light, Turn Signal/Hazard Relay
54 40 Security System (Option)
55 40 Blower Motor (Blower Motor Relay)
56 20 Condenser Fan Motor (Condenser Fan Relay), A/C Compressor Clutch (A/C Compressor Clutch Relay)
57 20 Radiator Fan Motor (Radiator Fan Relay)
Relay
R1 Condenser Fan
R2 A/C Compressor Clutch
R3 Radiator Fan
R4 Blower Motor

Engine Compartment Relay Box

Honda Civic - fuse box diagram - engine compartment relay box
Honda Civic – fuse box diagram – engine compartment relay box
No. A Circuits
61 40 ABS Pump Motor
62 20 ABS Control Unit
63 7,5 ABS Control Unit
Relay
R1 ABS Pump Motor

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
